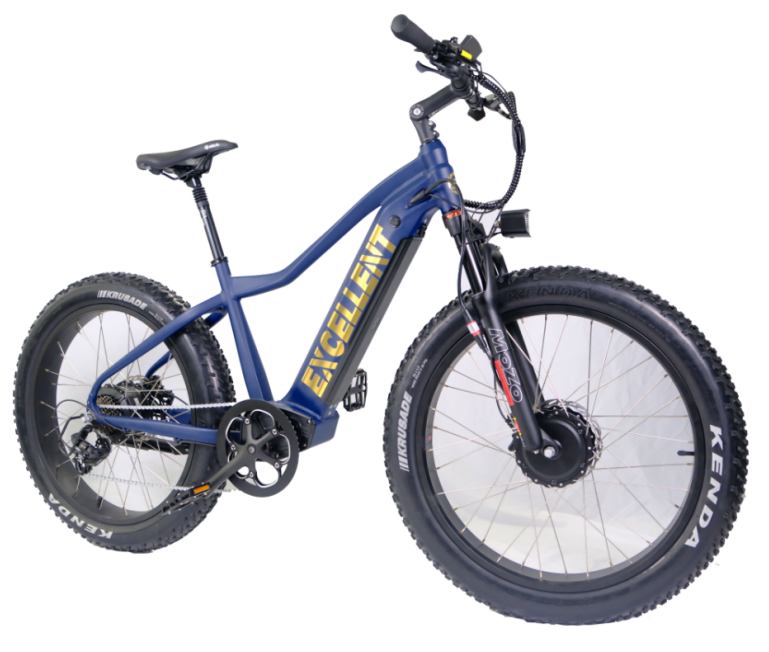

2*48V750W Bafang hub motors could provide a max torque 160NM
Max speed up to 28MPH

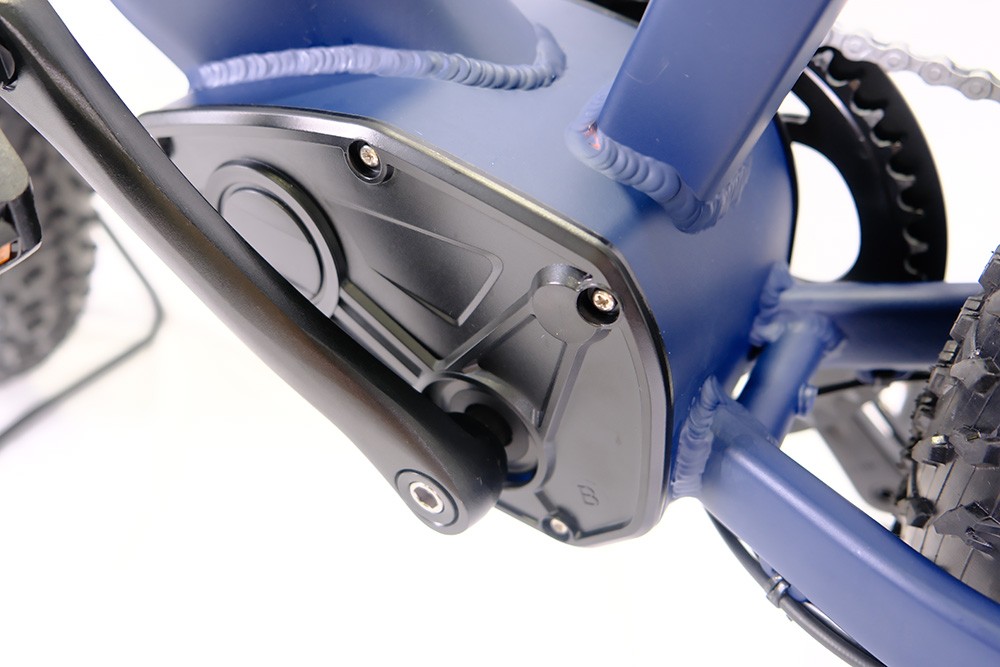

2* intelligent Controller in the unique sensor controller box ,1 pcs for 1 motor
Which allowed riders to switch from 1 wheel to All Wheels

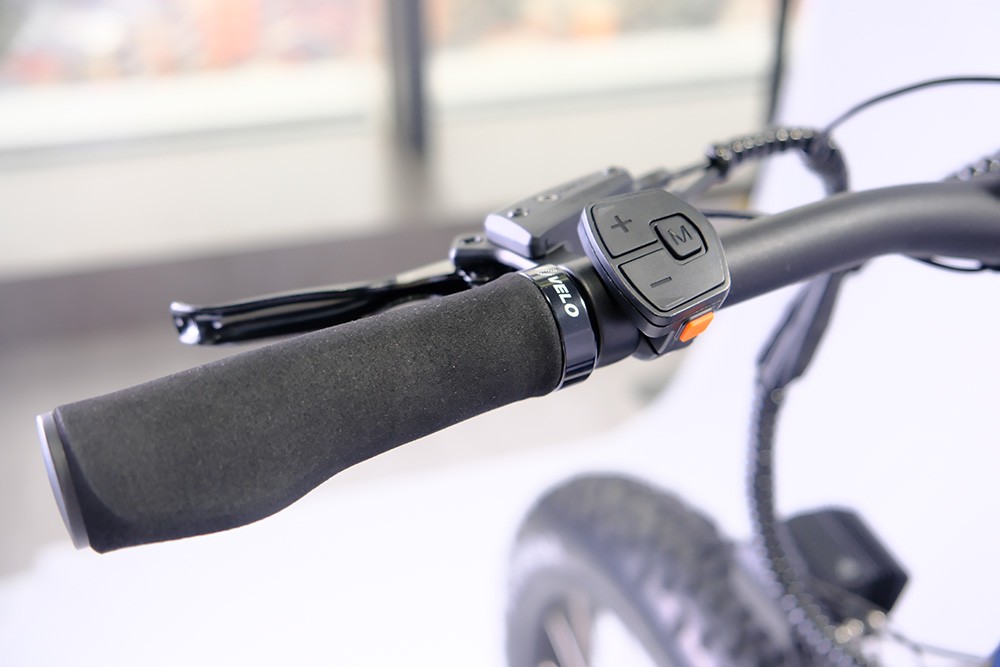

To save space for handlebar,We make the Drive mode change by the display switch
Default =Rear Drive

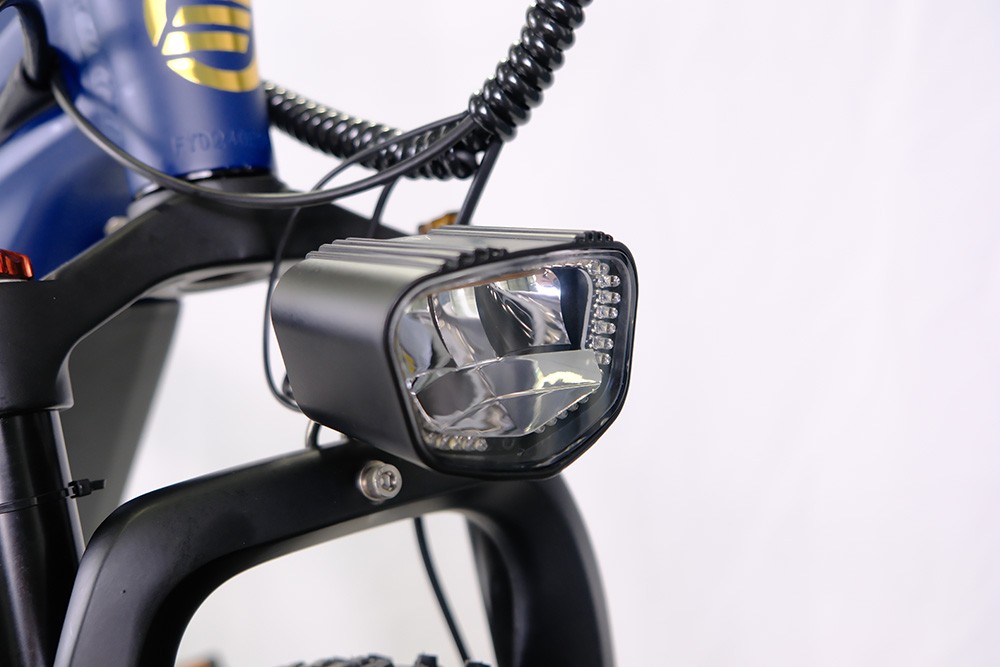

Super bright front light
A smart switch controls low beam/high beam & on/off
1890lm,385 lux (High Beam)
540lm.110 lux(Low Beam)
| Motor | 2*750W 48V Bafang hub motors ,Max Torque:160NM(80*2) | |||||||

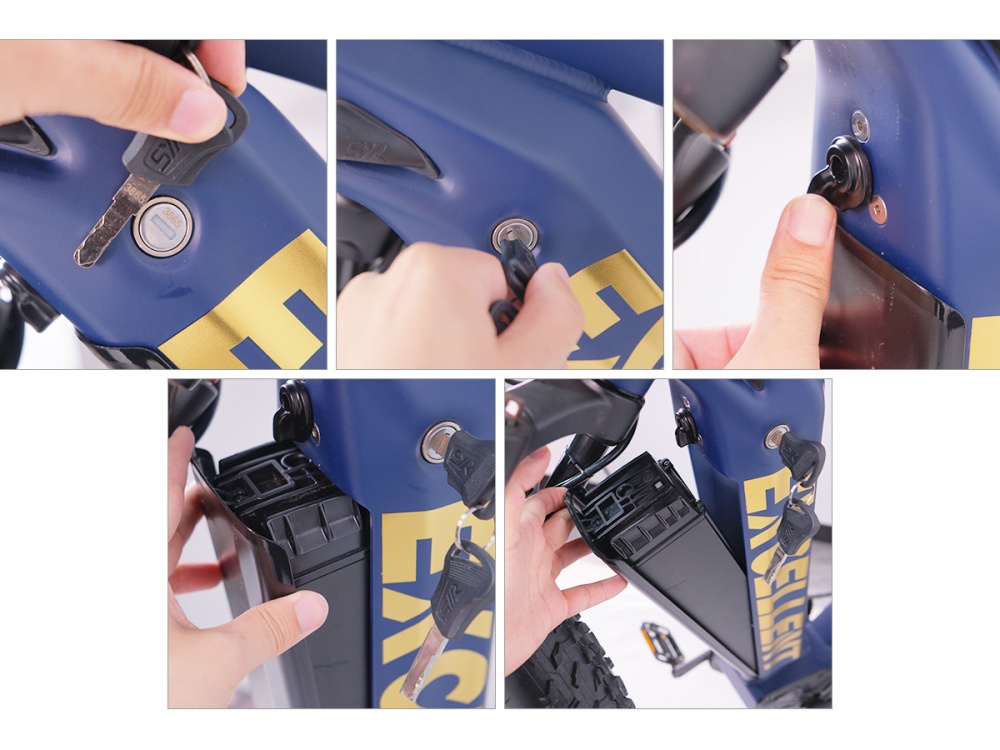

| Battery | 720WH 48V15AH Powered by Samsung 21700 cells | |||||||

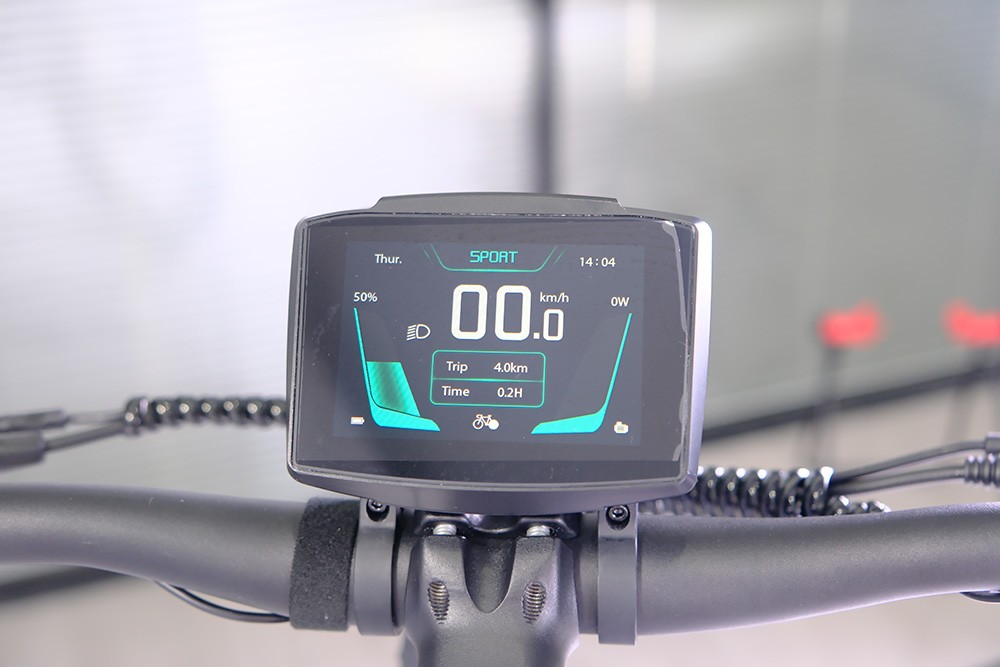

| Display | TFT 3.5" Full color | |||||||
| Controller | 2*12 mosfet sinewave,48V25A | |||||||
| Sensor | Cadence Sensor 1:1 | |||||||
| Gears | 7 spd Shimnao | |||||||
| tires | 26*4.0 Kenda | |||||||

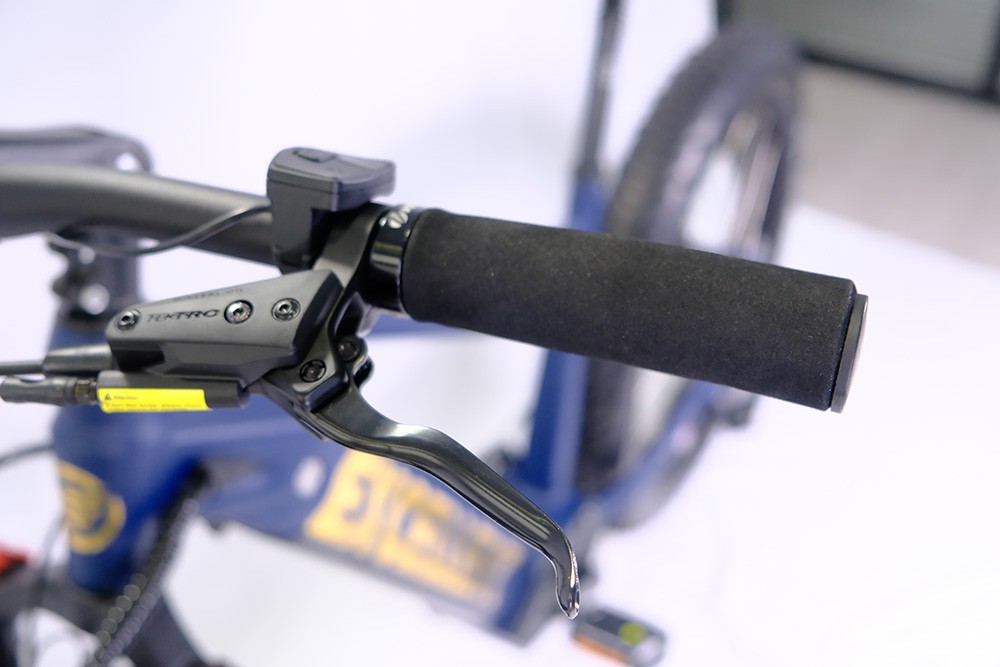

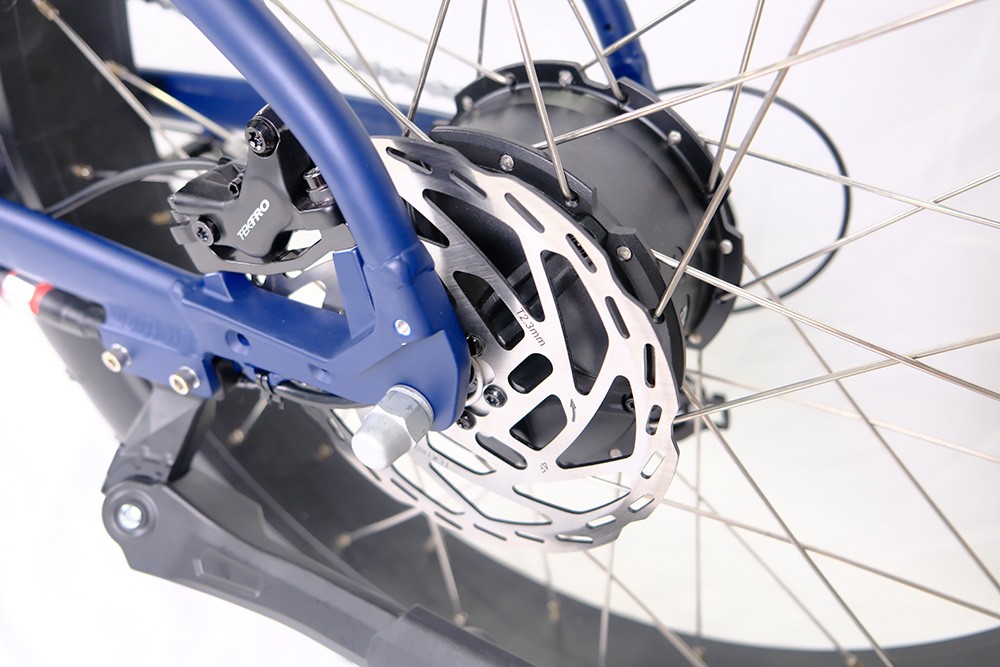

| Brakes | Hydraulic brakes ,4 piston ,Rotor 180mm W/thickness 2.3mm | |||||||
| suspension | Mozo Suspension Fork,Travel 100mm | |||||||
| lights | F:Low/High beam connected to controller |R:Dry battery on seatpost | |||||||

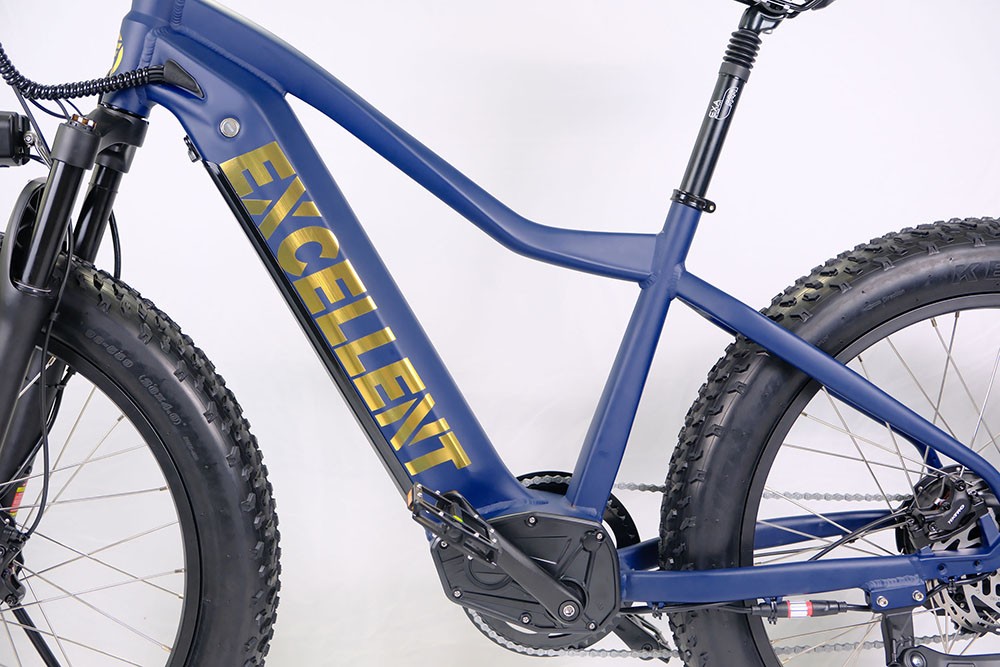

| Frame | Alloy 6061 ,26*18 ,Medium size | |||||||
| Handlebar | Promax | |||||||
| Stem | Promax | |||||||
| Seatpost | Kindshock,EXA 525 | |||||||
| Cranksets: | 48T,CNC W/Protector | |||||||
| Pedals | MTB series,Alloy | |||||||

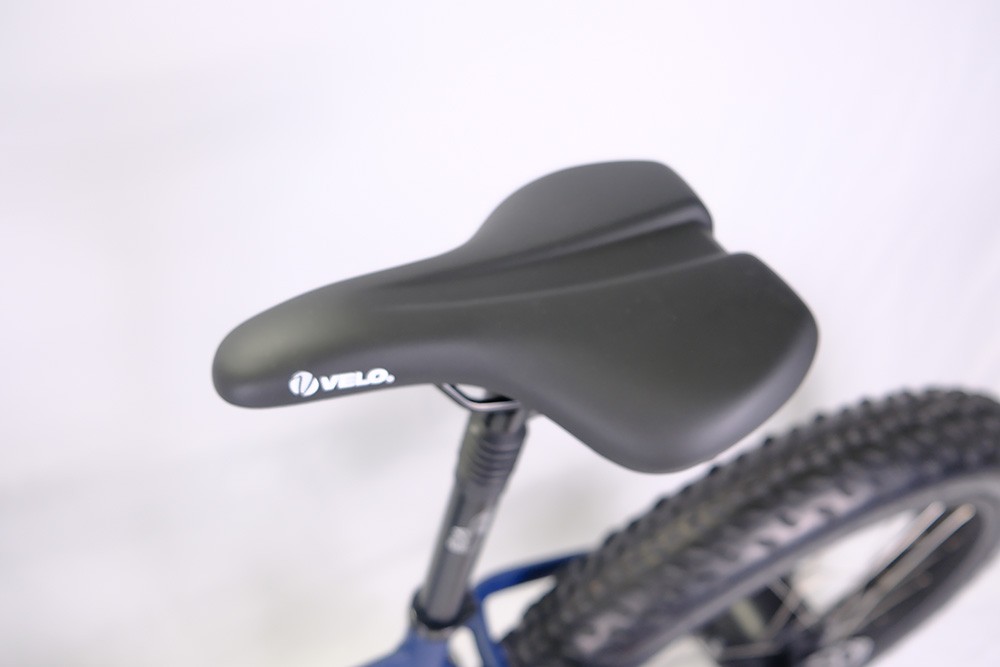

| Seats | SR | |||||||
| Total Length: | 1870mm |
| RC: | 480mm |
| FC: | 655.9mm |
| Wheelbase: | 1160mm |
| Seat tube: | 460mm |
| Reach: | 432mm |
| Standover: | 800mm |
| Max seatheight: | 1050mm |
| Min seatheight: | 920mm |
| Wheel size: | 26 inch fat |
| Bike weight: | 39.6Kgs |
A torque based PAS is more advanced than a cadence sensing PAS. In general, torque sensing is built to be in tune with the rider’s movements. Sometimes called smart sensing, torque sensors use precision strain to measure the force the rider is actually applying to the pedal. This allows your bike to gauge the appropriate level of pedal assist for conditions.
The whole electronic system could convert into 52V system
Motor:52V750W
Battery:52V17.5AH by Samsung 18650 cells
A pannier could be mounted to rear rack ,which could hold some personal effects
WE ARE OPEN TO TALK ABOUT MORE UPGRADES & DESIGNS WITH OUR VALUED CUSTOMERS
