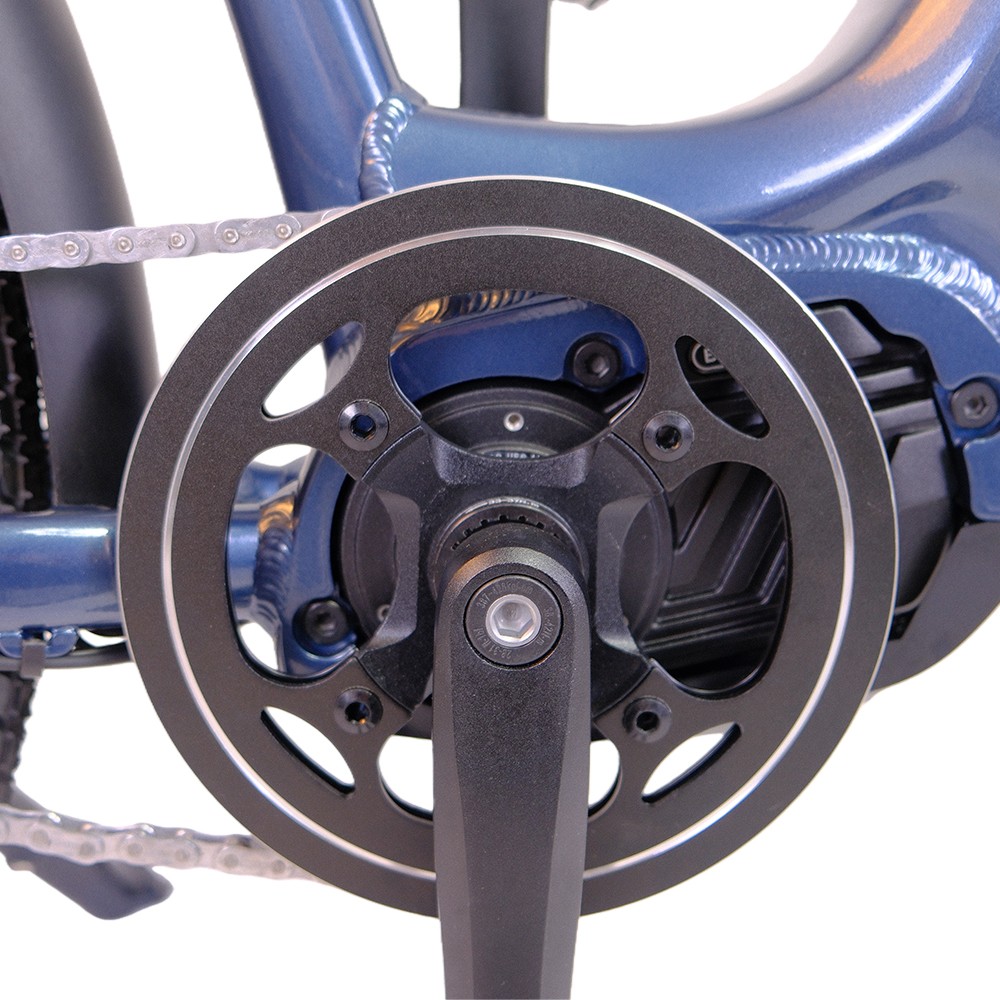

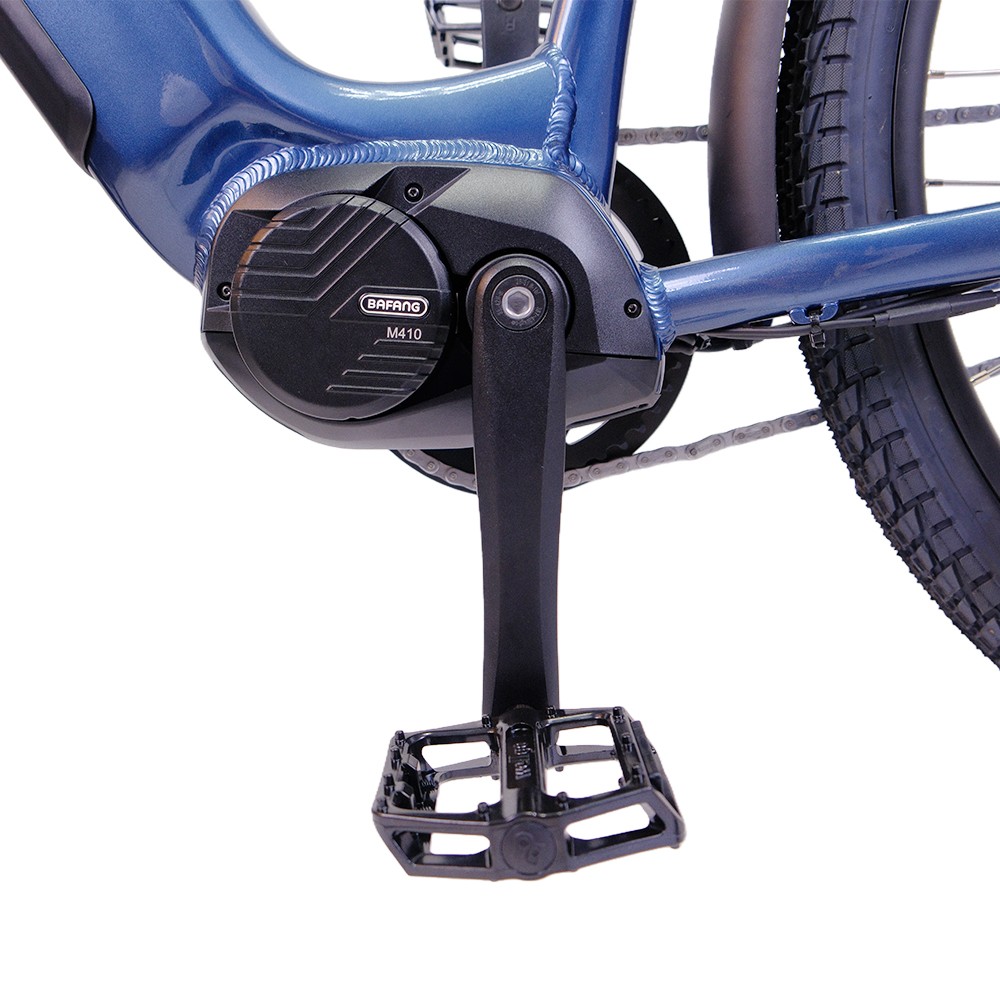

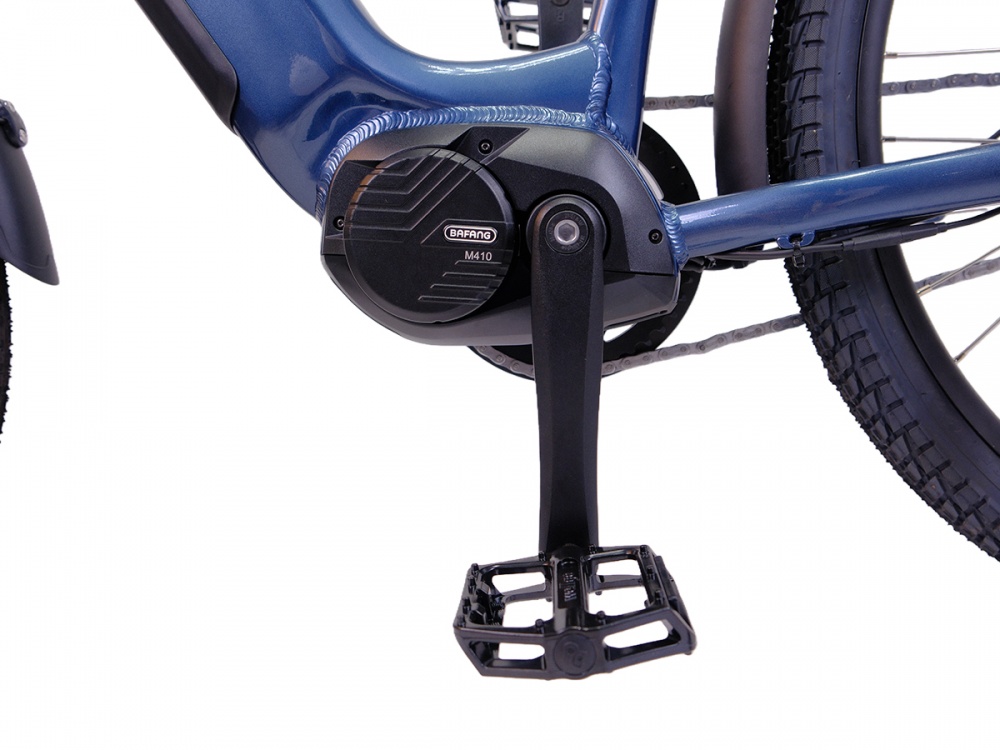

Max Torque Up to 90NM,250 watts of rated power,peak power could reach 550 watts.
Due to the system's dual sensor design,the rider has full control at all times and enjoys extremely sensitive responsiveness.
For Daliy commuting,This motor is a best option.
It offers 0-5 levels(Off,ECO,TOUR,SPORT,SPORT+,BOOST),which apply to different application scenarios
A type C USB 5V1.0A charge power could allow the rider to charge their mobile phone and at the same time.

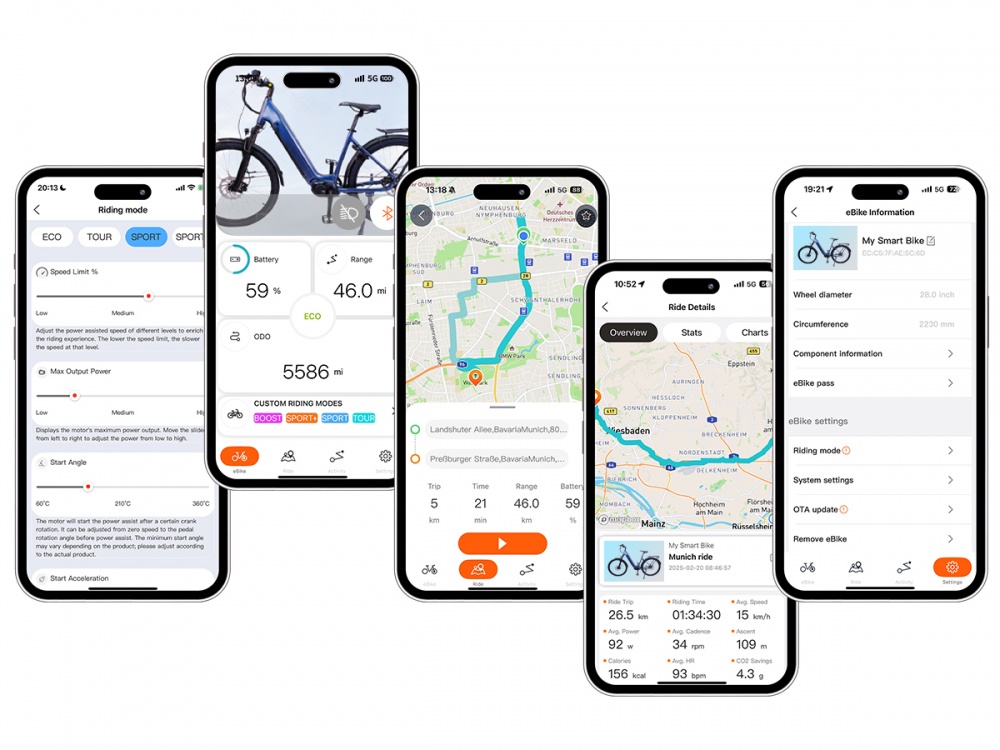

It could be connected to Bafang Go App through Bluetooth.
Connected for a safer and more enjoyable cycling journey with remote control,real-time tracking,personalized settings,navigation,and more,all through Bafang Go app–right on your hand.

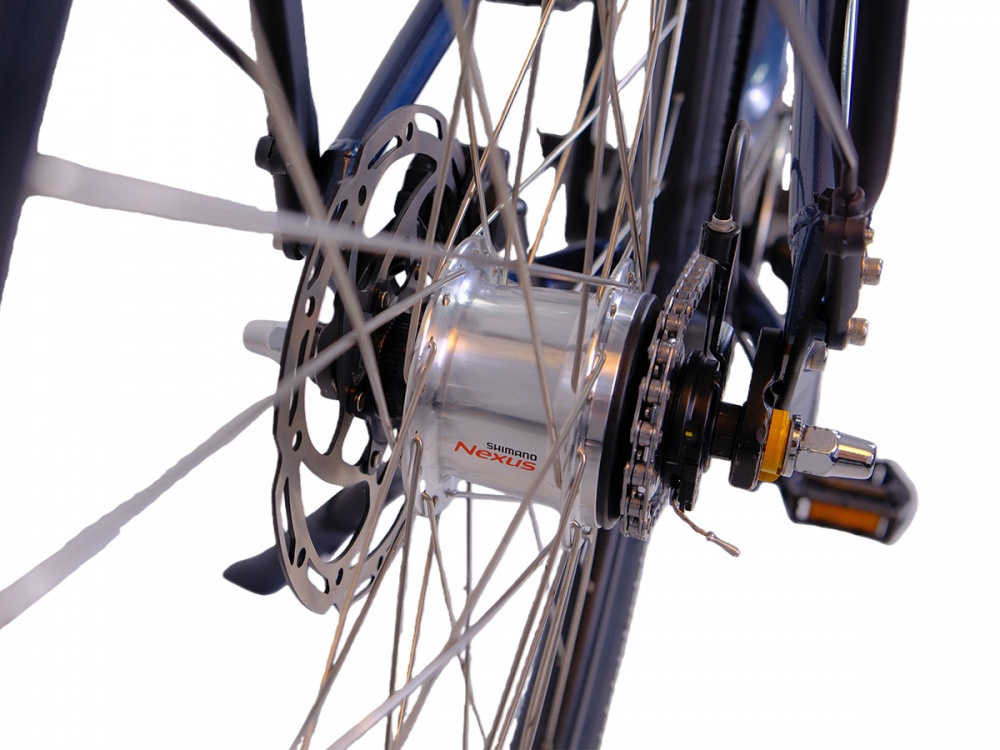

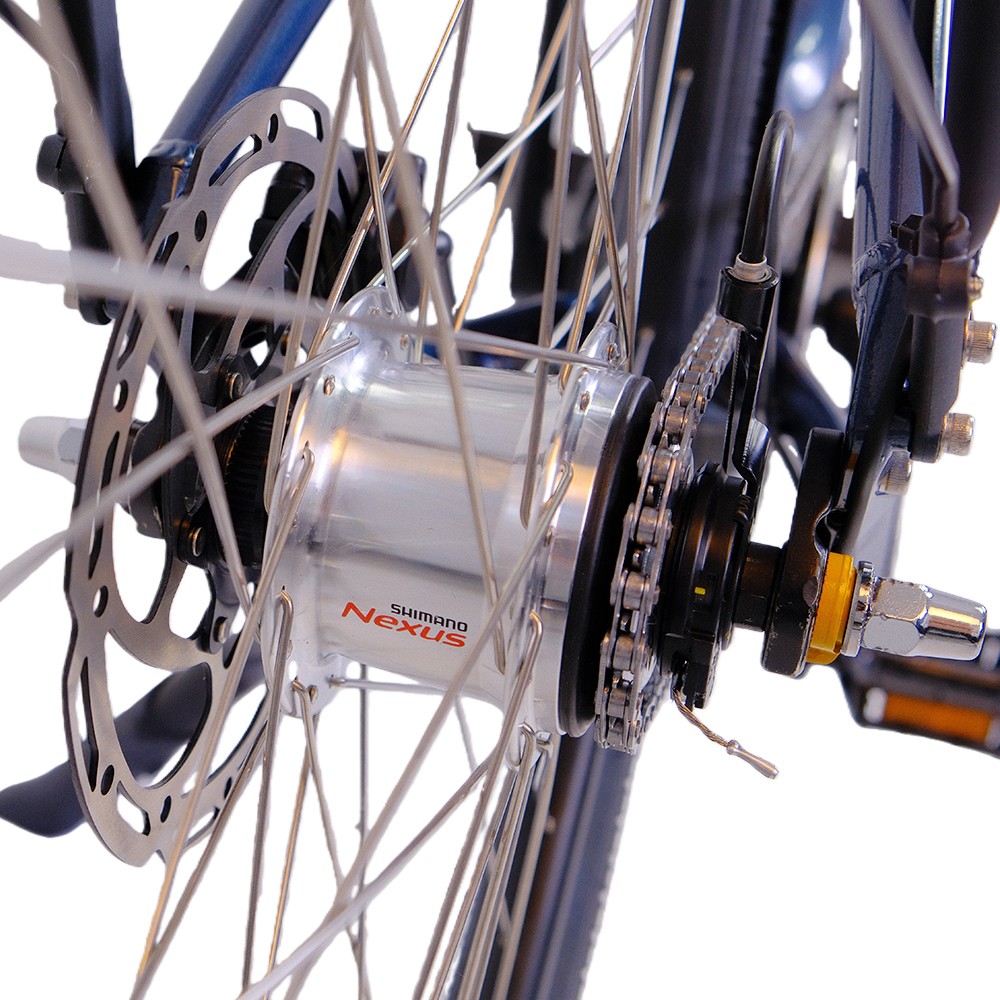

Shimano INTER-7 is a 7-speed internal gear hub designed for urban commuting and e-bikes,offering several key advantages:
1.Low Maintenance:The fully enclosed design protects internal gears from dust and water,requiring minimal upkeep
2.Easy-Operation:It supports direct switching to the low gear for starting when stationary,making it suitable for urban commuting scenarios with frequent stops and starts.
3.Compact & Lightweight:Integrates the freewheel mechanism into the hub,saving space and reducing weight.

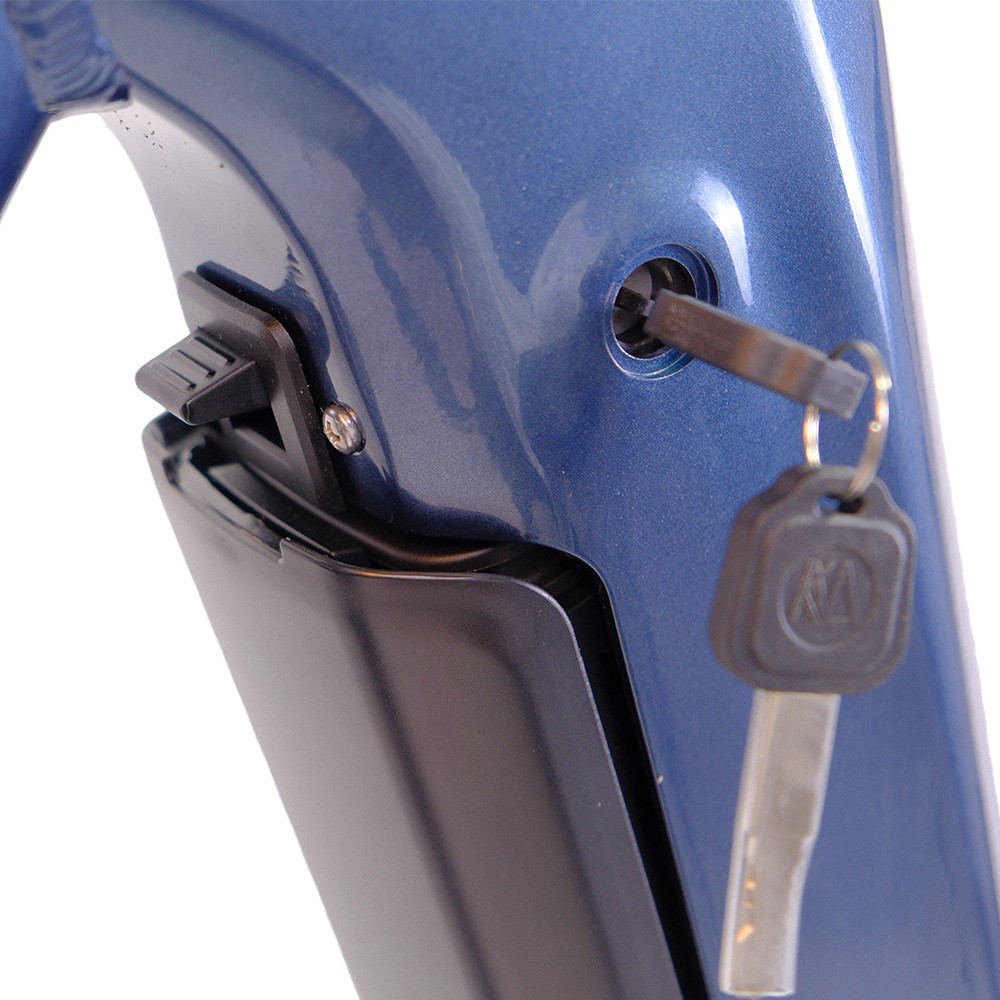

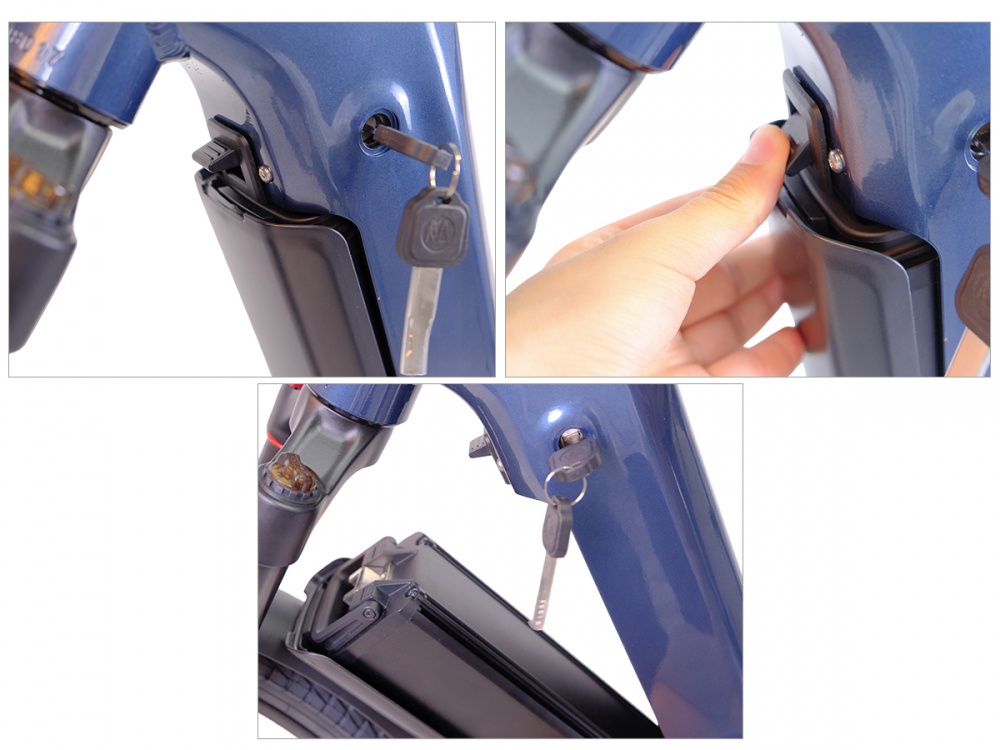

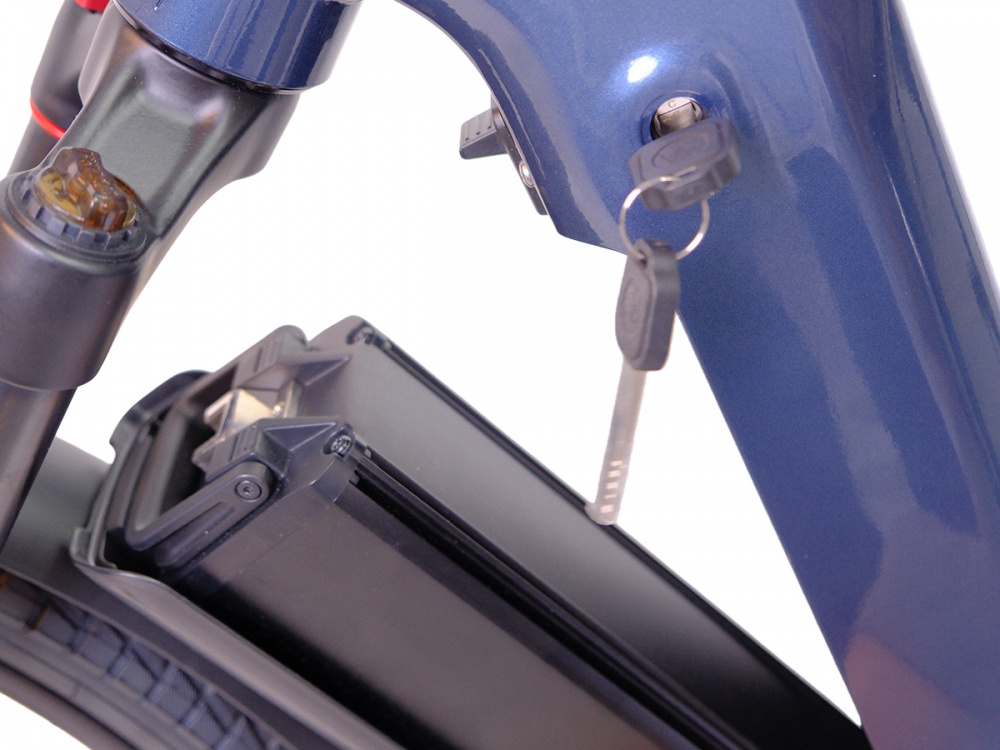

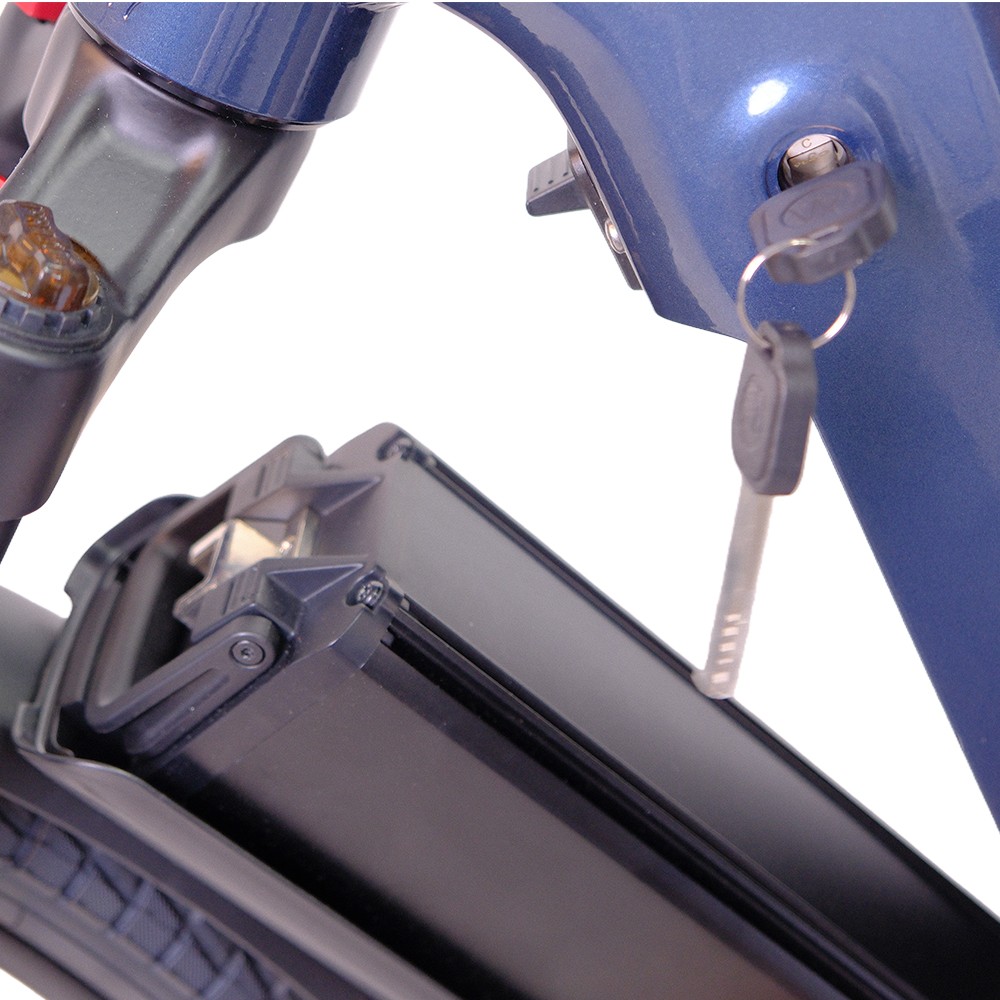

Make it easy to remove for more convenient charging,users can also charge the batteries on bike Thanks to the drop protection design,you can take the battery very easily.
Battery capacity is up to 540WH,which provides continuous electricity to the whole system,makes it possible to get a range of 75KM max (ECO mode)

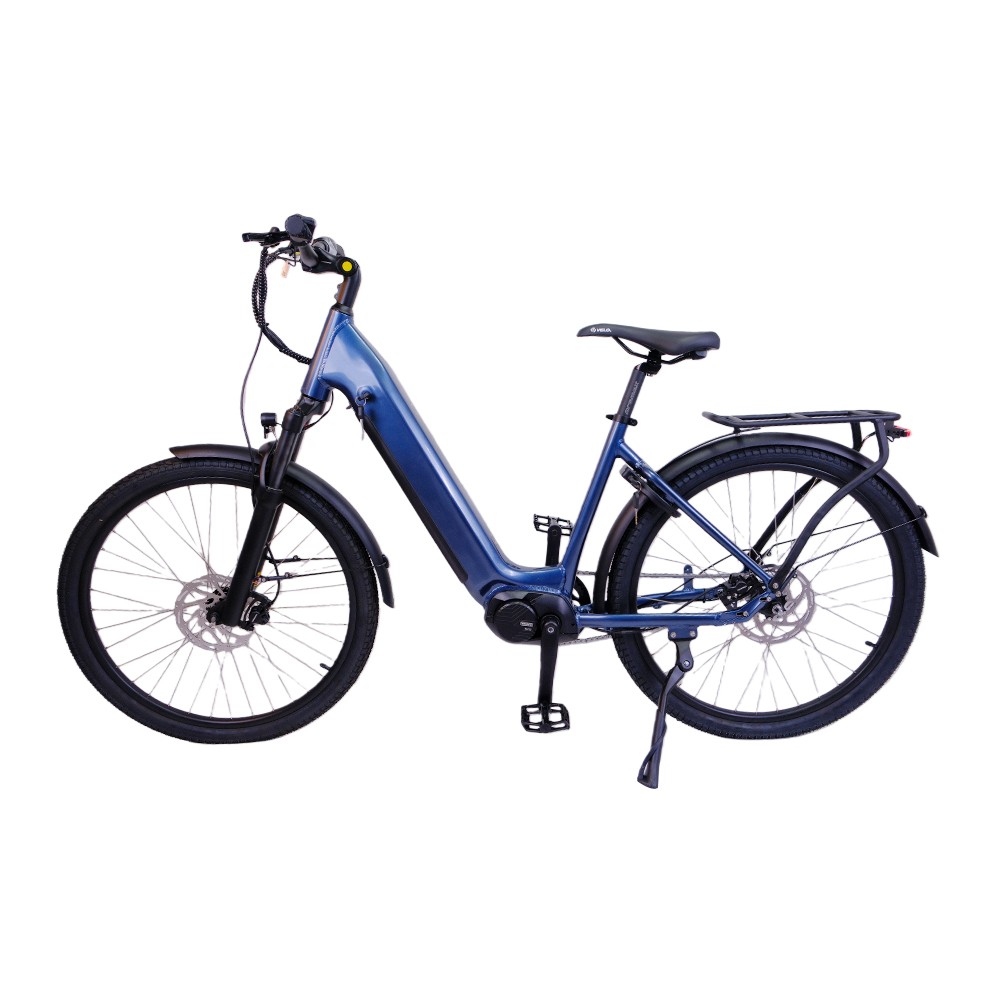

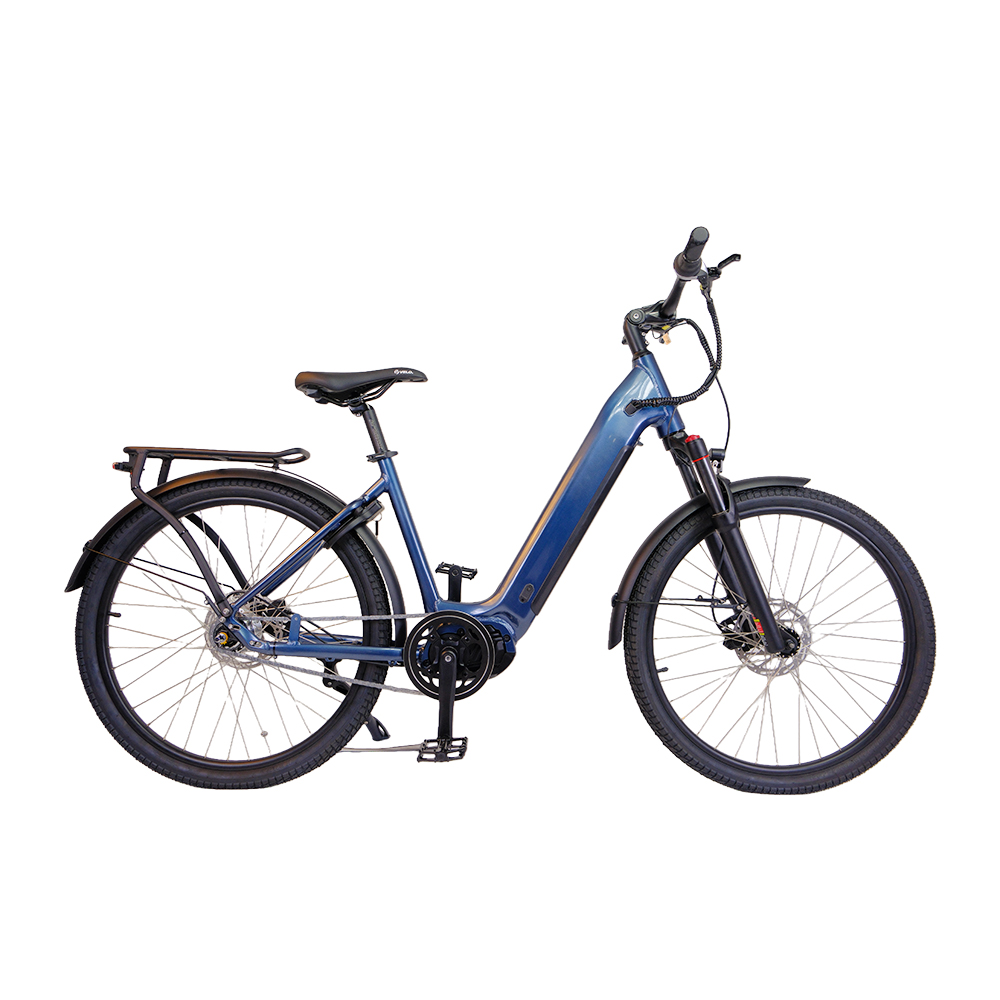

| Frame | 27.5*18inch city ebike step-thru |
| Battery(Basic) | Downtube,540WH,36V15AH,powered by Samsung 21700 |
| Motor Power | M410,36V250W Center motor ,25KM/H,Torque:90NM,BAFANG |

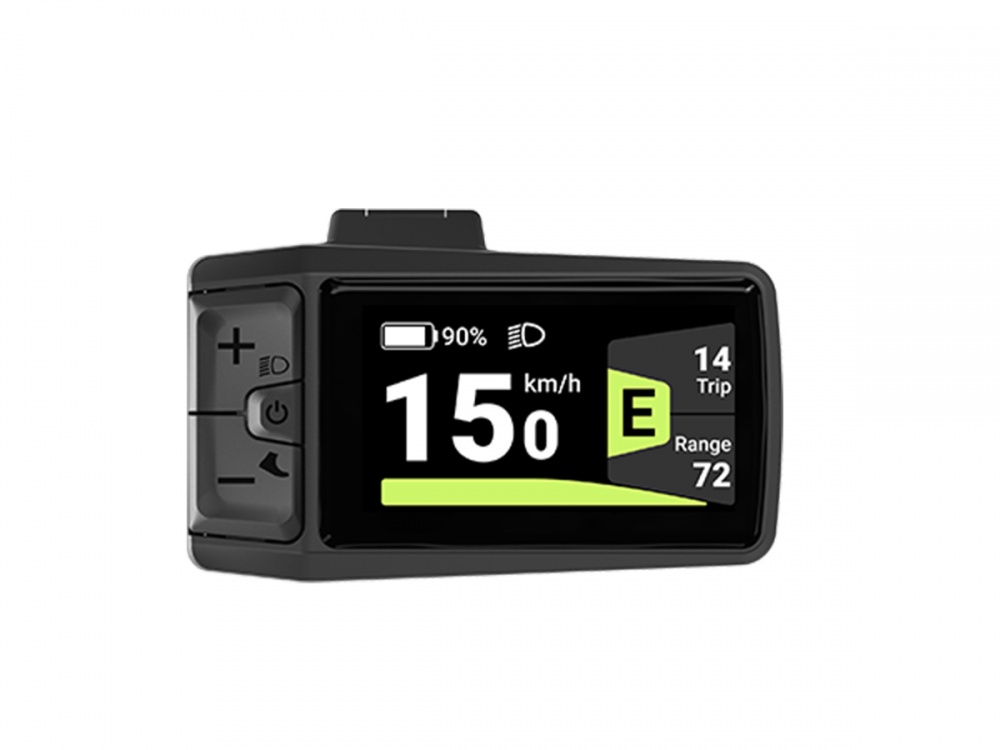

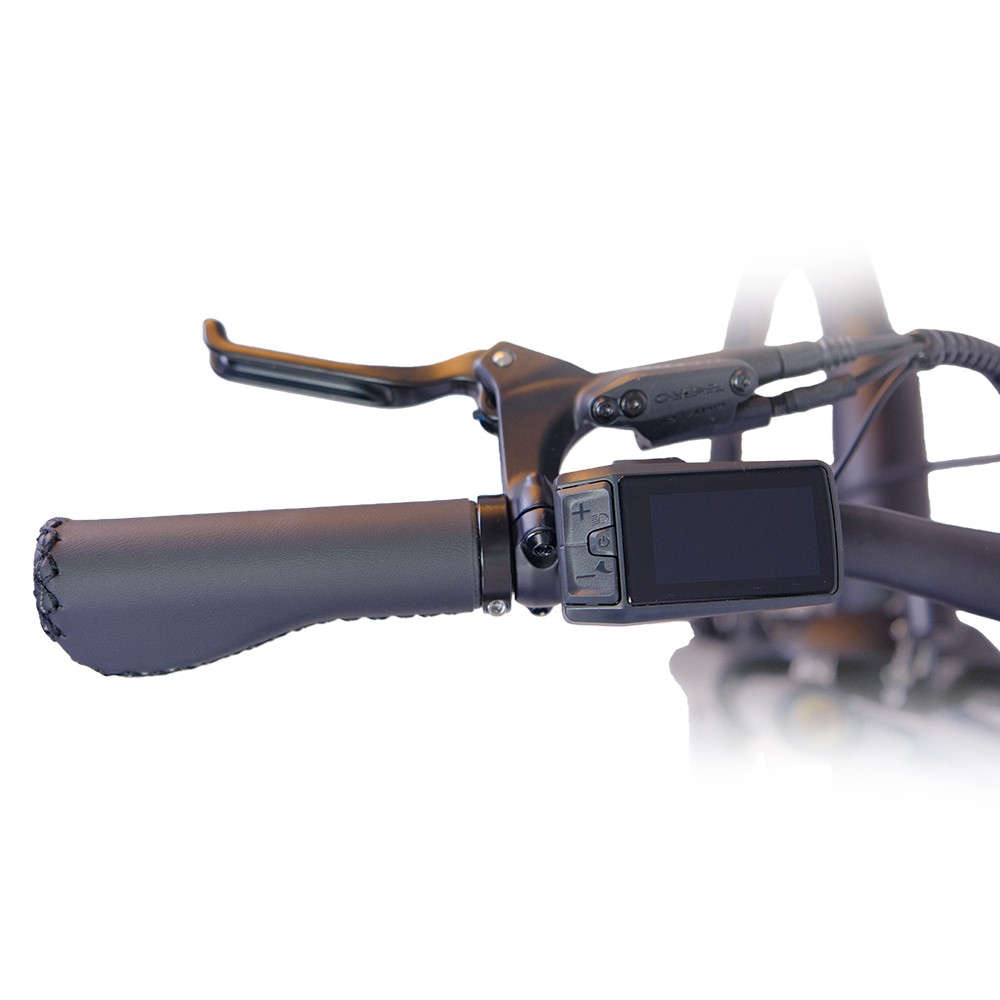

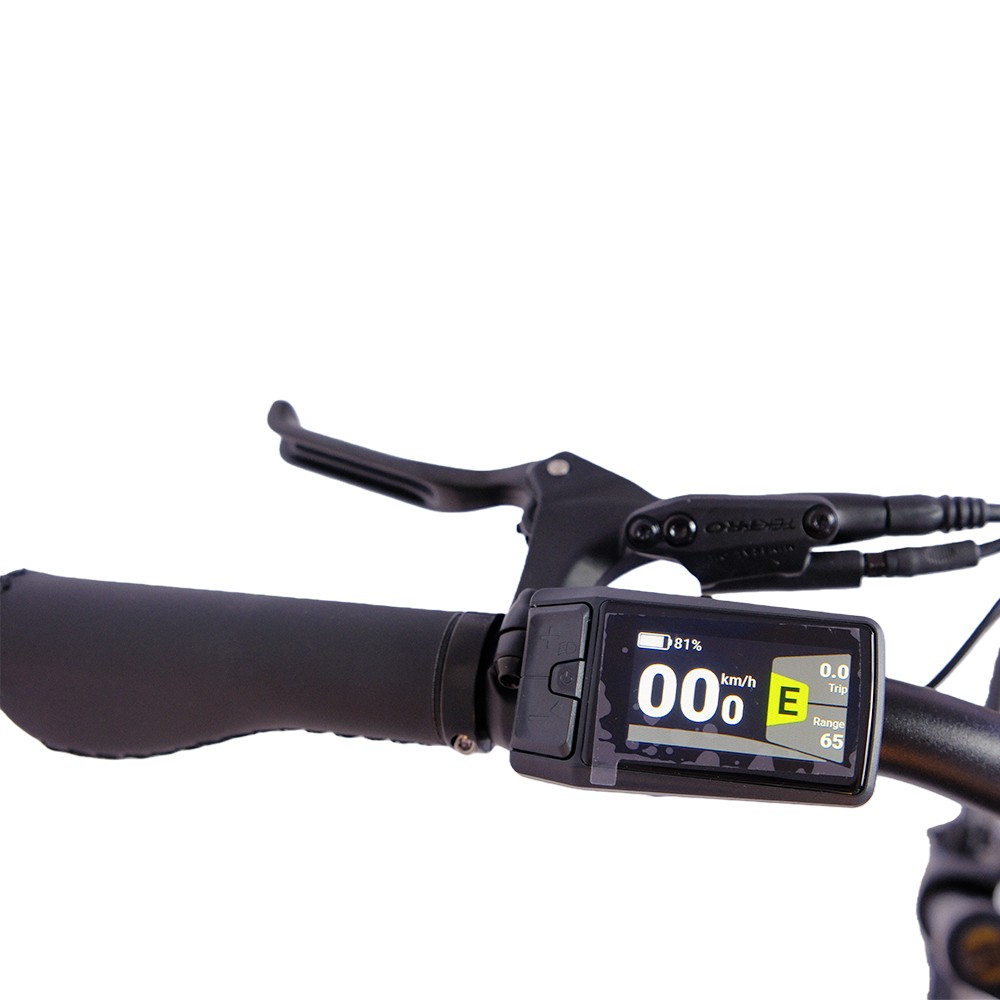

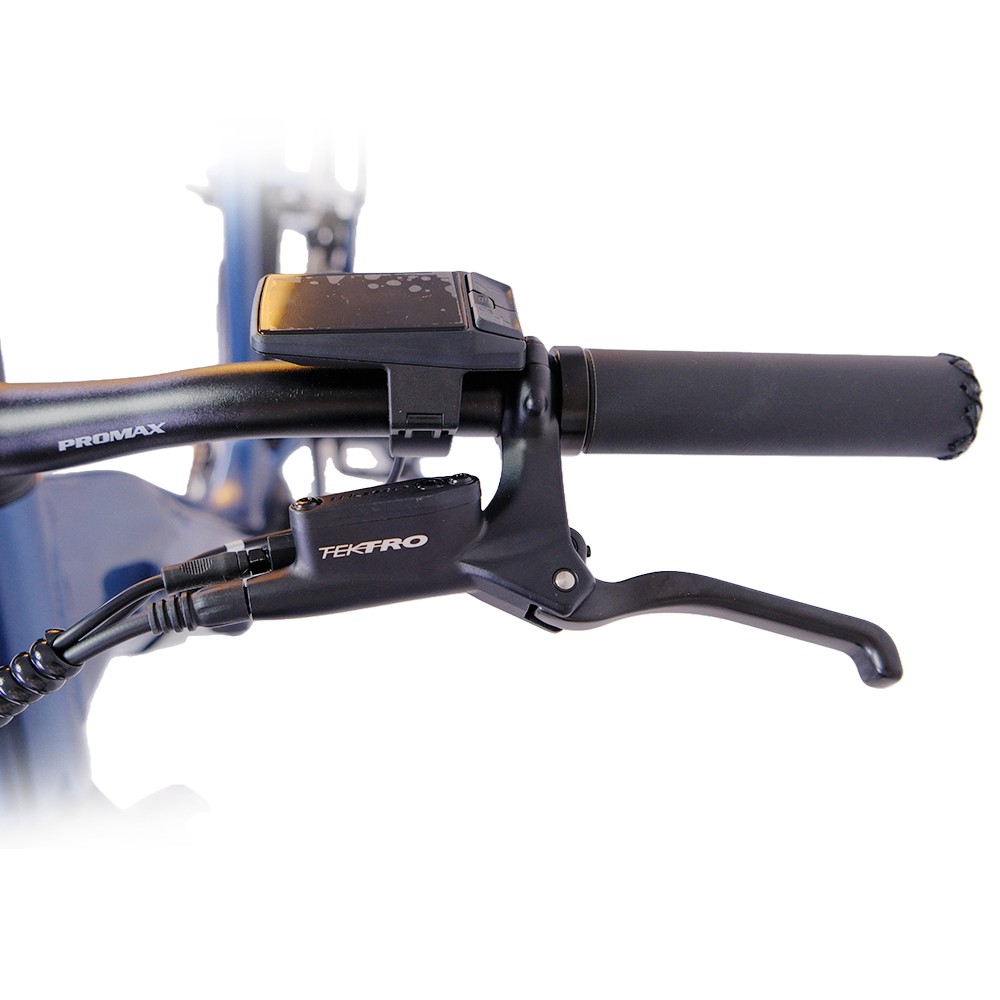

| Display | C080,1.9" TFT W/USB and bluetooth,BAFANG |
| Controller | 6 Mosfet,Sinewave,36V13A,BAFANG |
| Sensor | Cadence&Torque sensor,BAFANG |
| Charger | 36V3A (5hrs) |

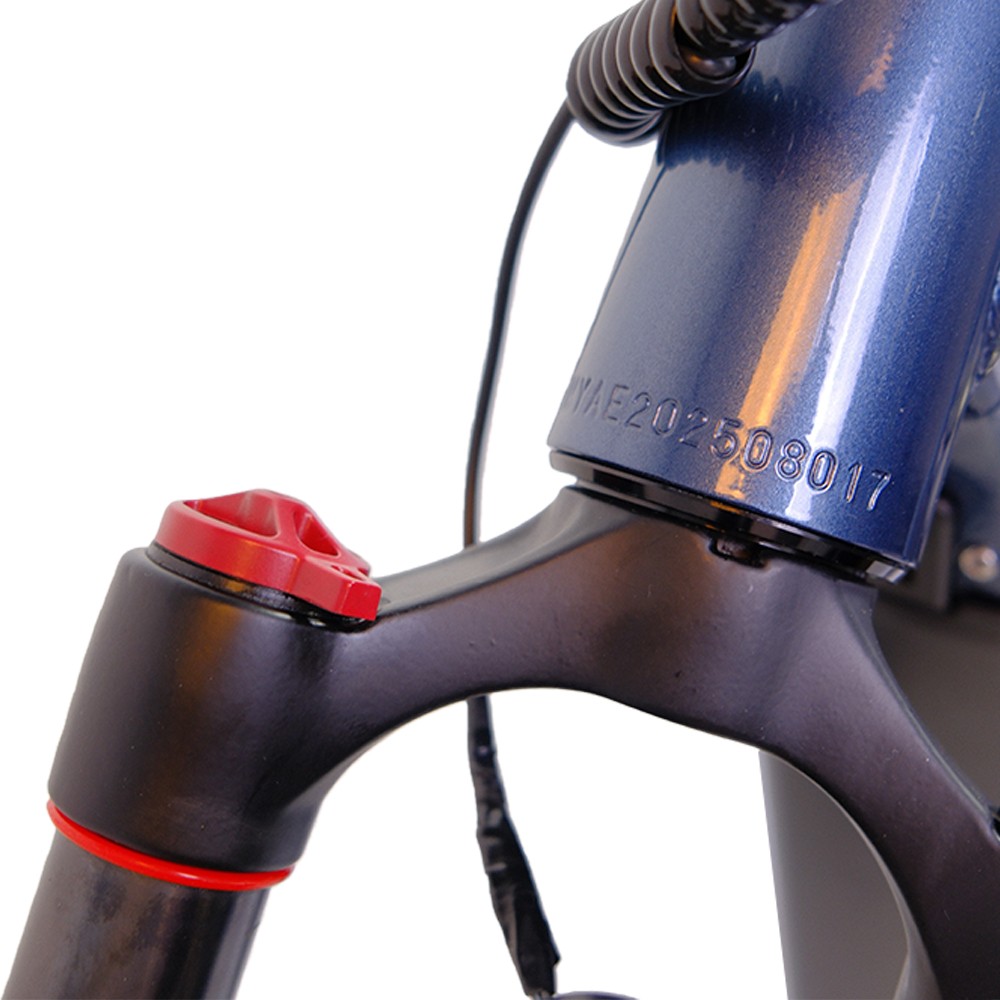

| Suspension | Suspension Front fork ,Lock out,Travel 100mm,MOZO |

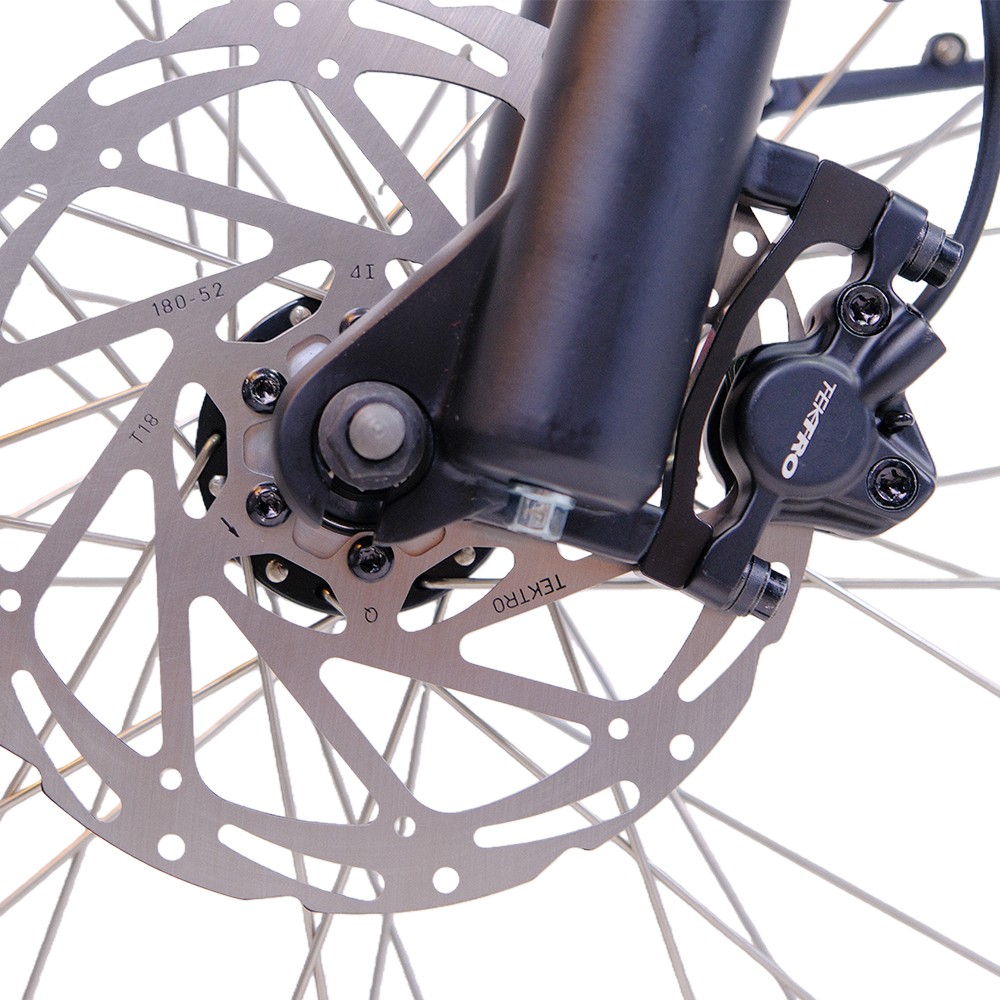

| Brake system | Hydraulic brakes ,2 Piston,Rotor 180/180mm,TEKTRO |

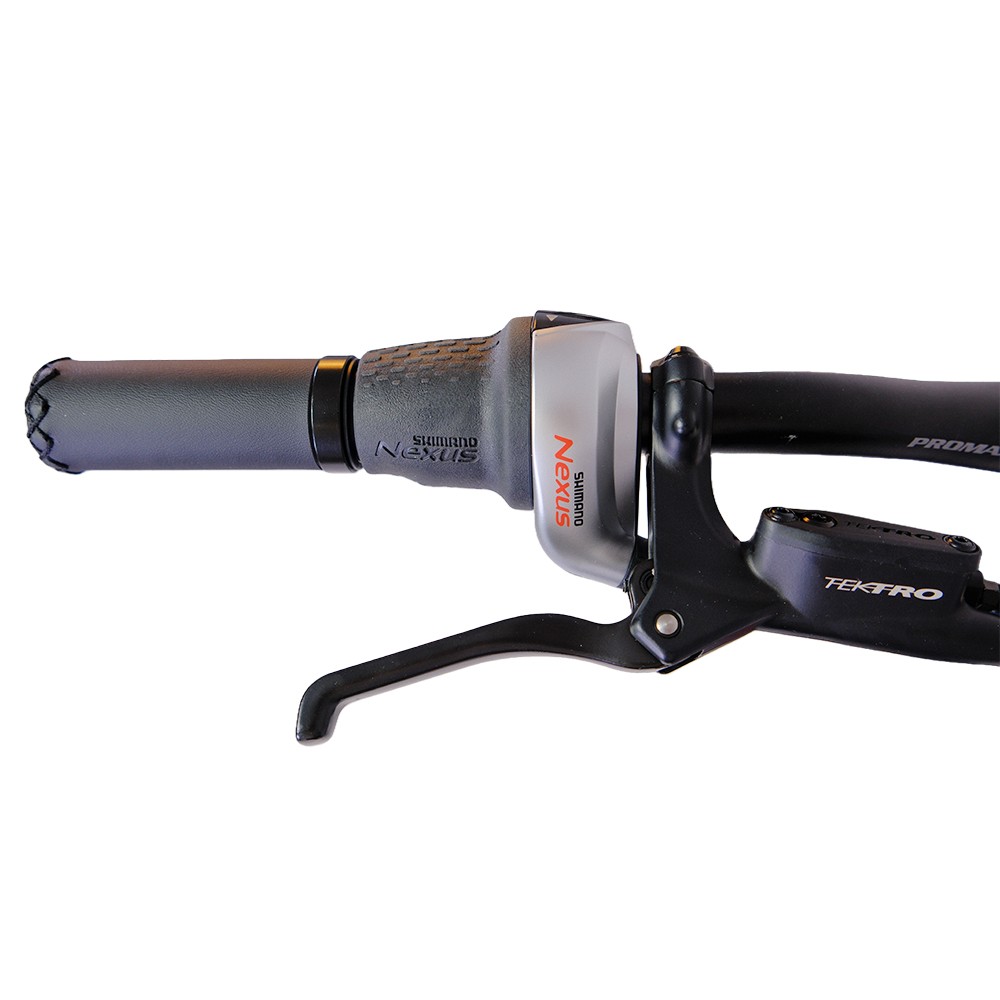

| Gears | NEXUS Inter-7 speed W/Revoshift,SHIMANO |
| Tires | 27.5*2.2 ,anti-puncture ,Kenda |

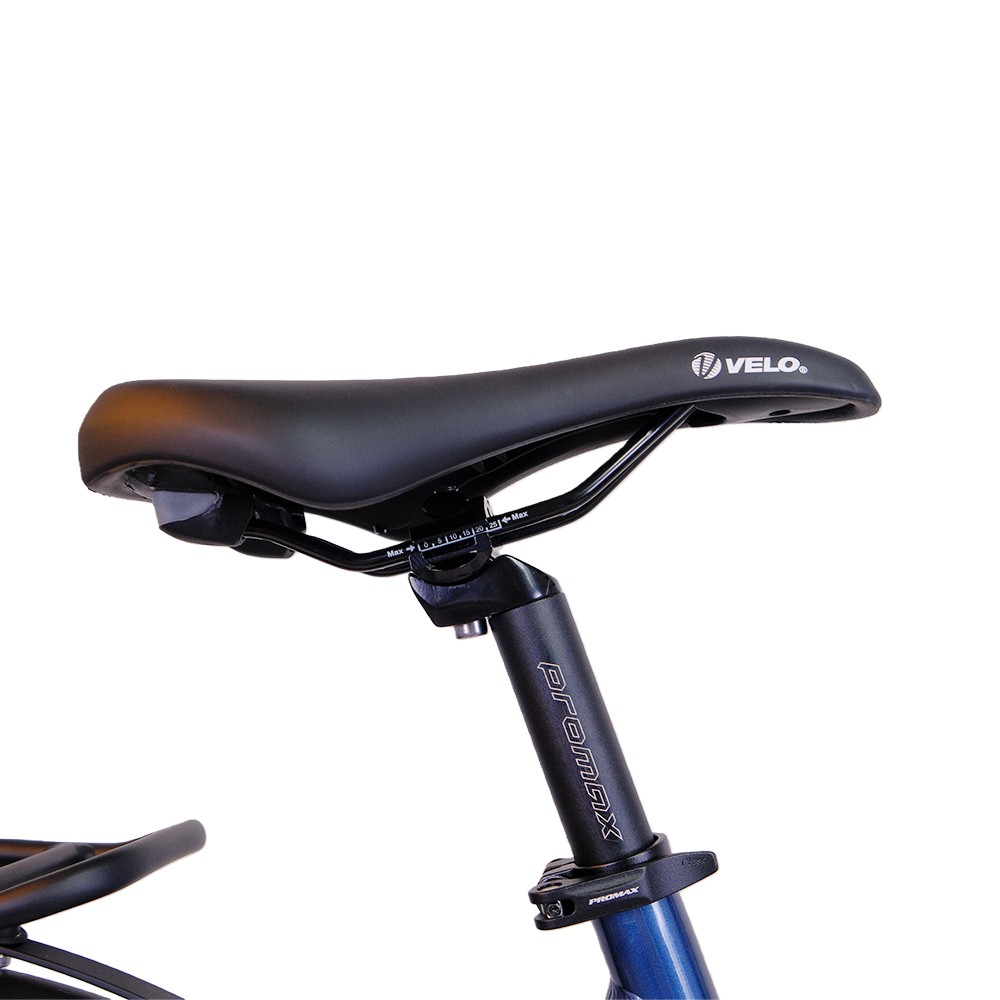

| Saddle&Grips | Velo |
| Accessories | Lights,Fenders,Rear rack |
| Max speed | 25KM/H (15.5MPH) |
| Range | 45-65KM |
| Climbing | 8 degree |
| Max load | 120Kgs |
| Total Length: | 1960mm |
| RC: | 475mm |
| FC: | 735mm |
| Wheelbase: | 1210mm |
| Seat tube: | 460mm |
| Reach: | 460mm |
| Standover: | 420mm |
| Max seatheight: | 1020mm |
| Min seatheight: | 840mm |
| Wheel size: | 27.5 inch |
| Bike weight: | 30Kgs |
Battery Capacity could be upgraded up to to 720WH(36V20AH),powered by Samsung 21700 cells
Theoretically,the mileage can be 1.5 times and more

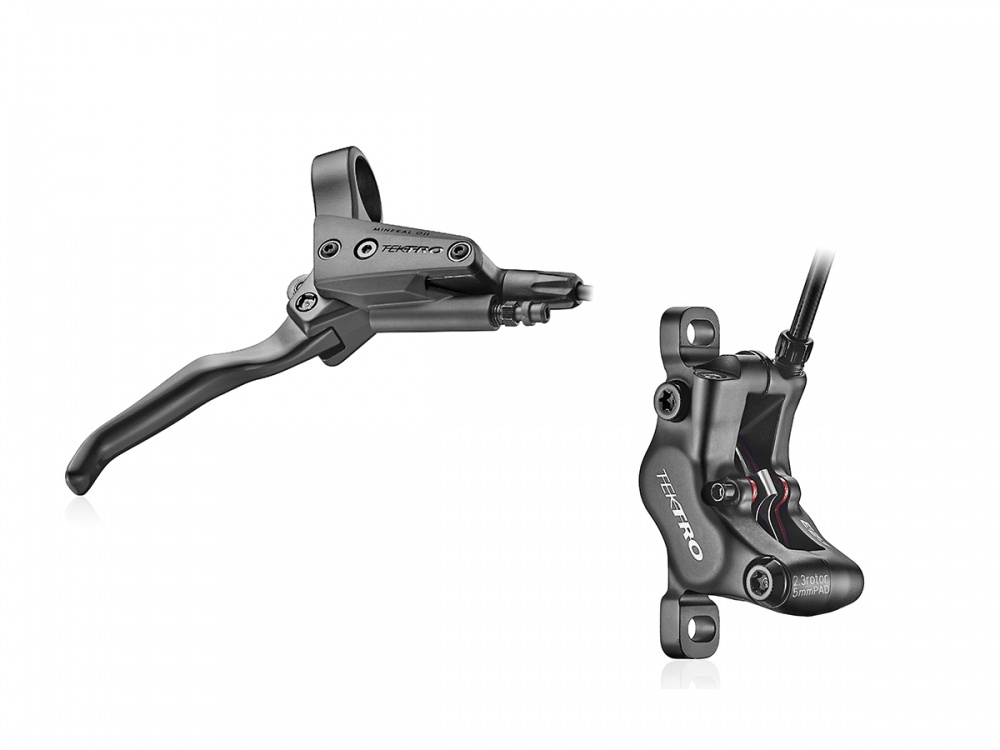

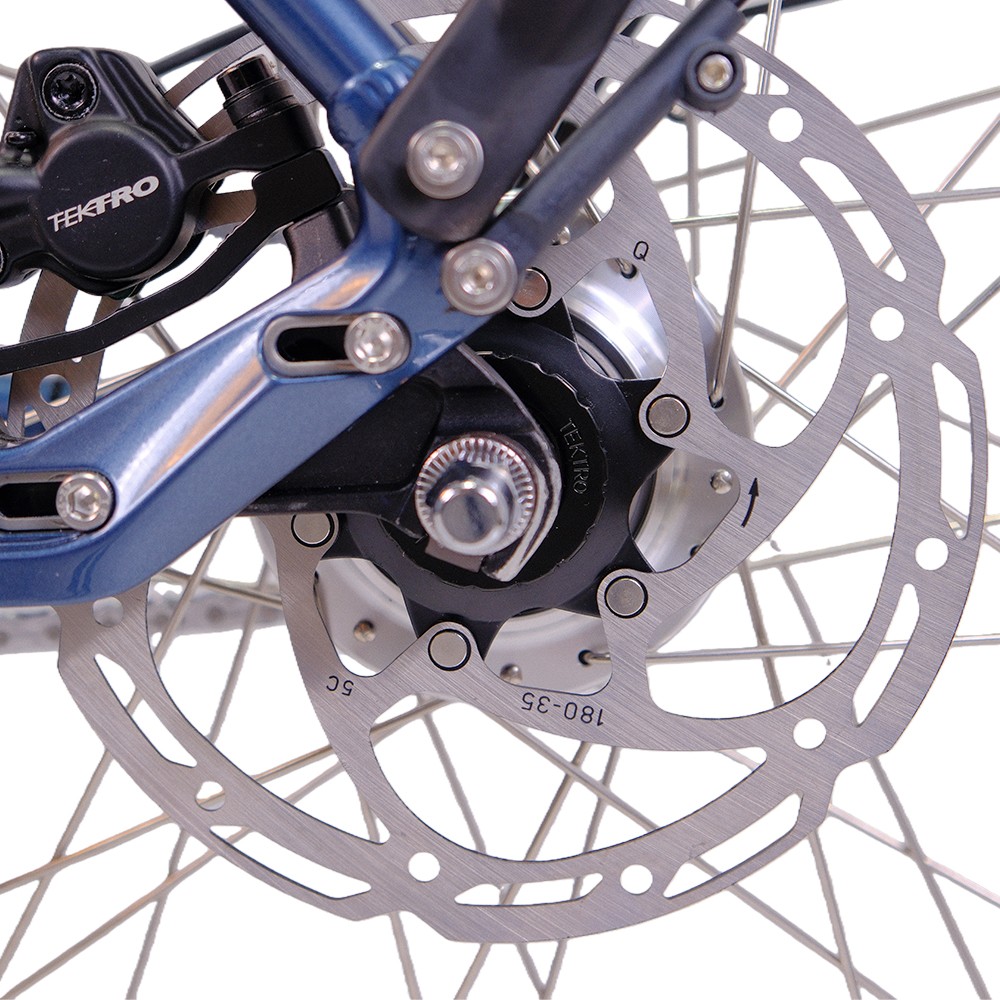

Brake system could be upgraded to 4 piston Hydraulic Tektro
Compared to current 2 piston Hydraulic,We could get thicker rotor(Fromt 1.8mm to 2.3mm)
Enhance braking force,optimize heat dissipation, and achieve more stable brake feel

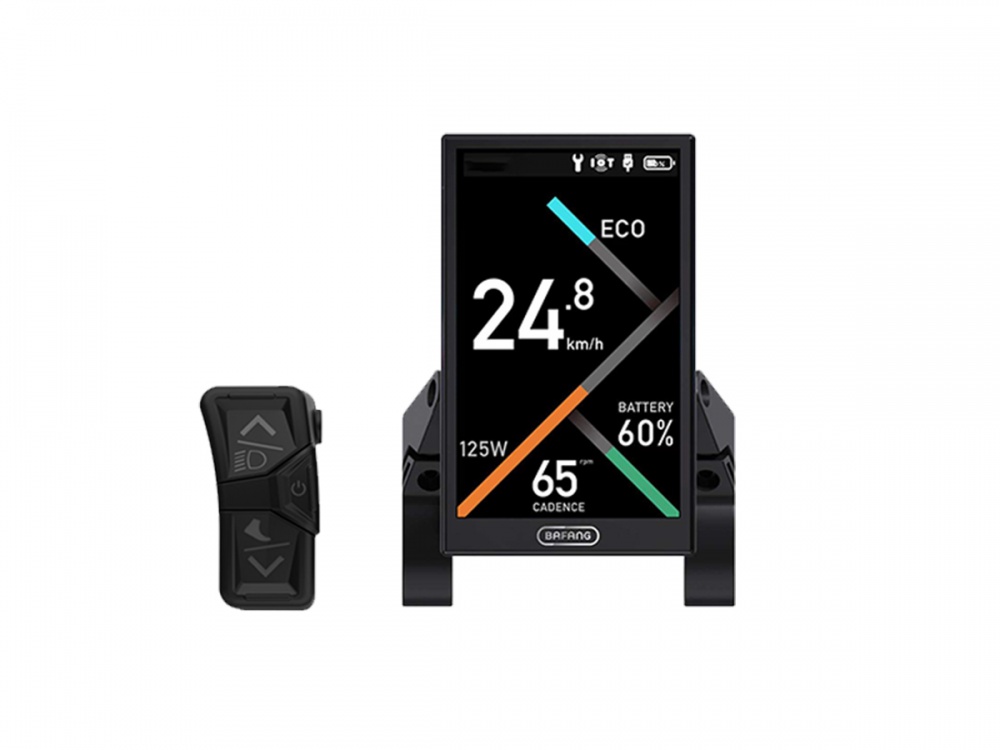

Display could be upgraded to DP C010,a TFT 4.0" Which is mounted on the center of handlebar
It offers 0-5 levels(Off,ECO,TOUR,SPORT,SPORT+,BOOST),which apply to different application scenarios
Up to 3 Themes & 6 languages supported
