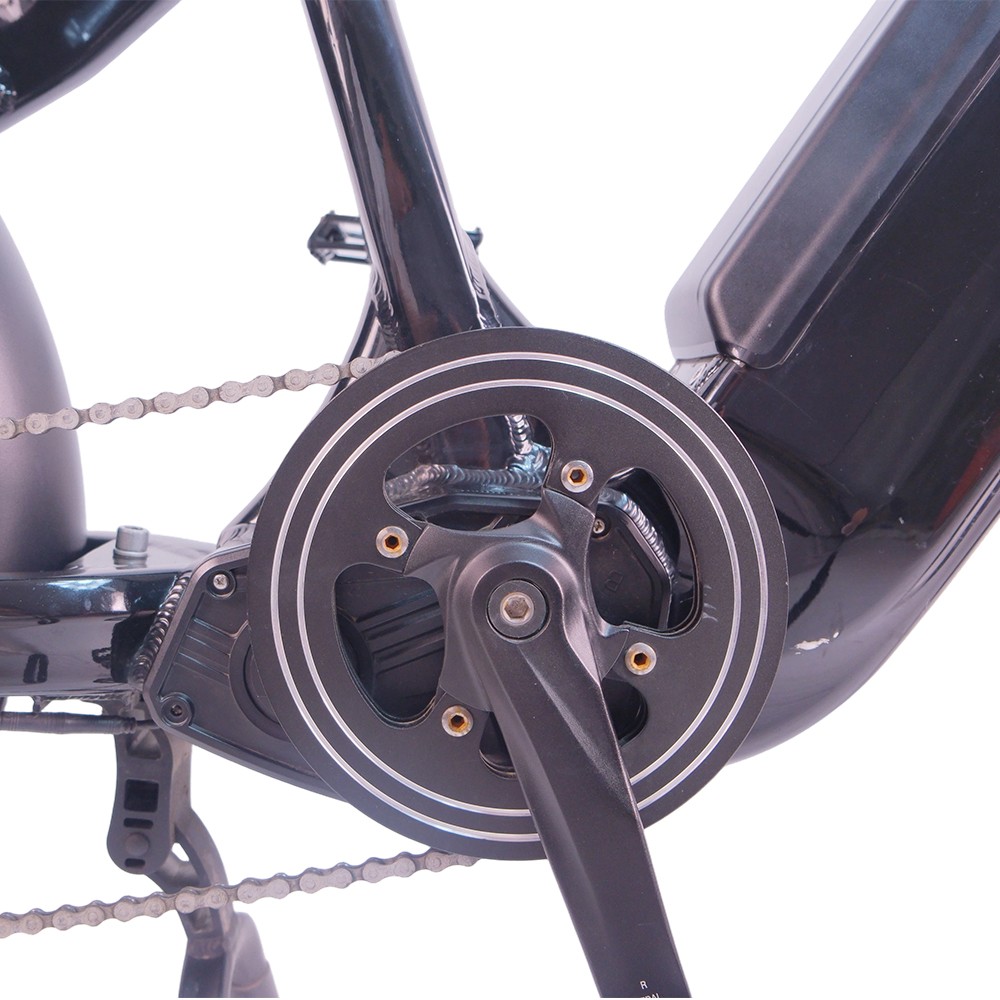

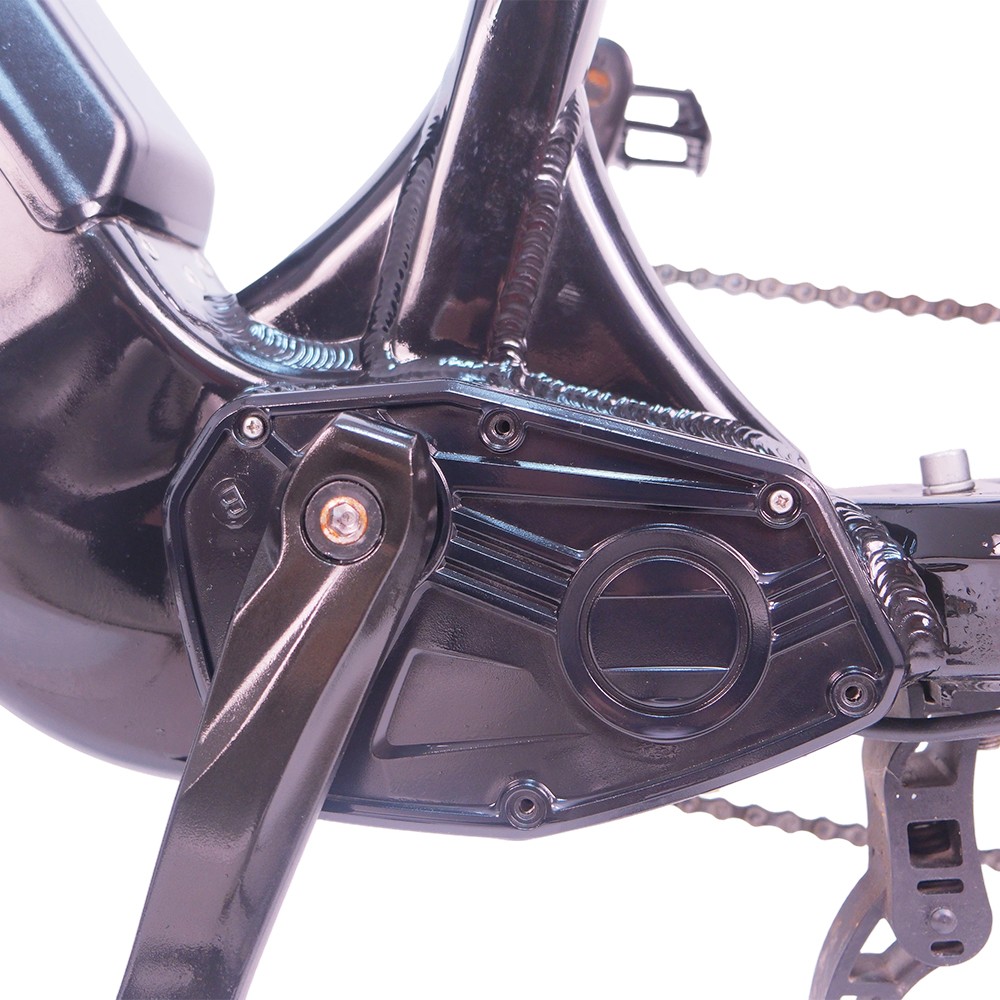

Max Torque Up to 65NM,500 watts of rated power,peak power could reach 800 watts
Due to the system's dual sensor design,the rider has full control at all times and enjoys extremely sensitive responsiveness.

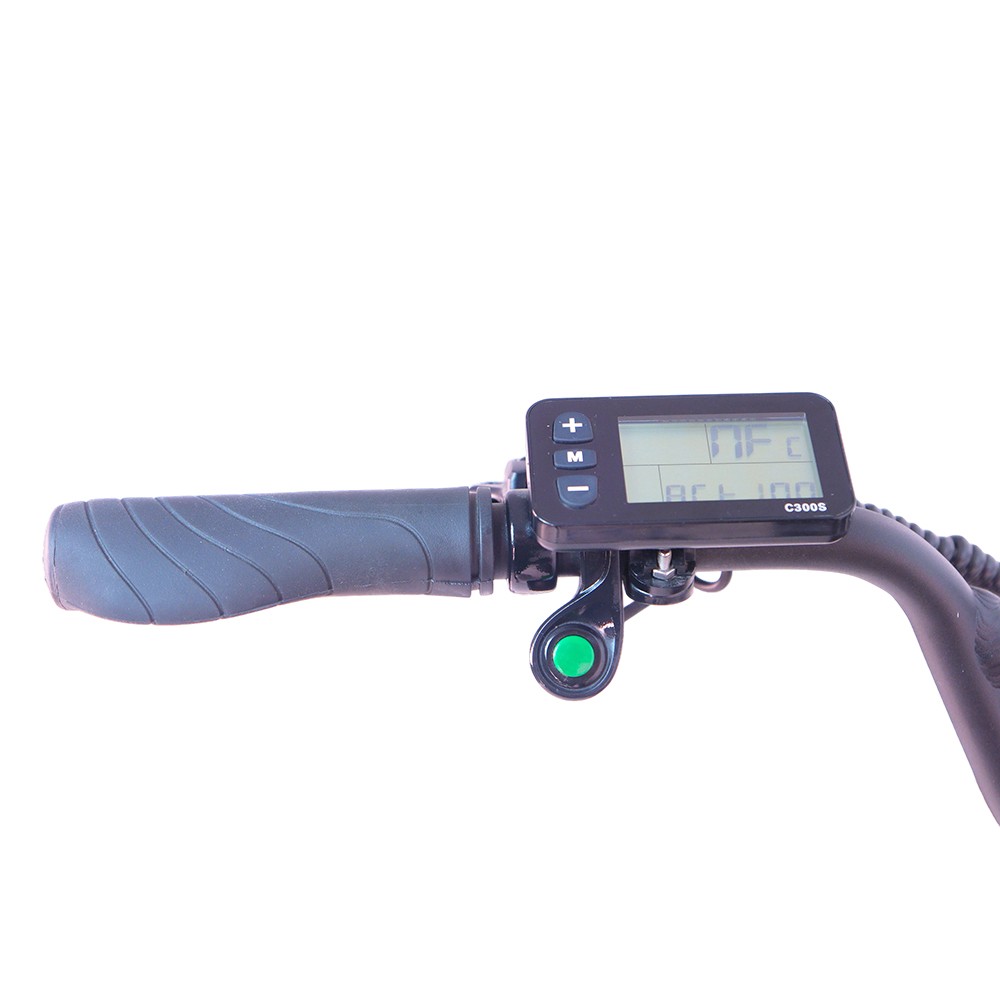

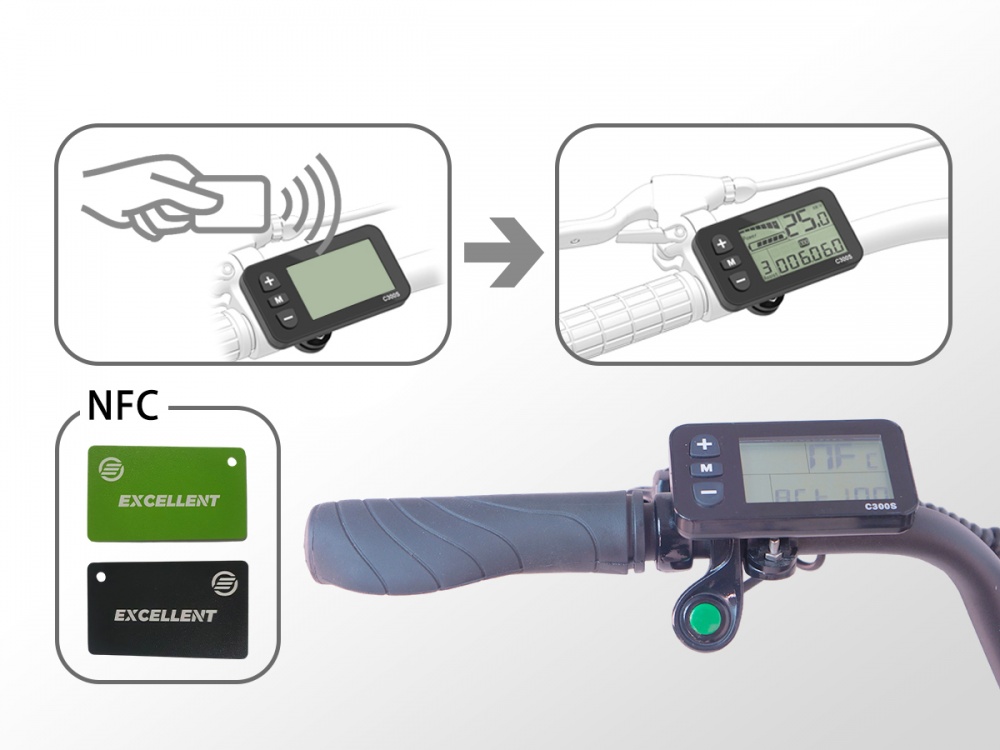

Turn on the display,touch the NFC card,then enter into the menu
The display offers 0-5 levels,which apply to different application scenarios

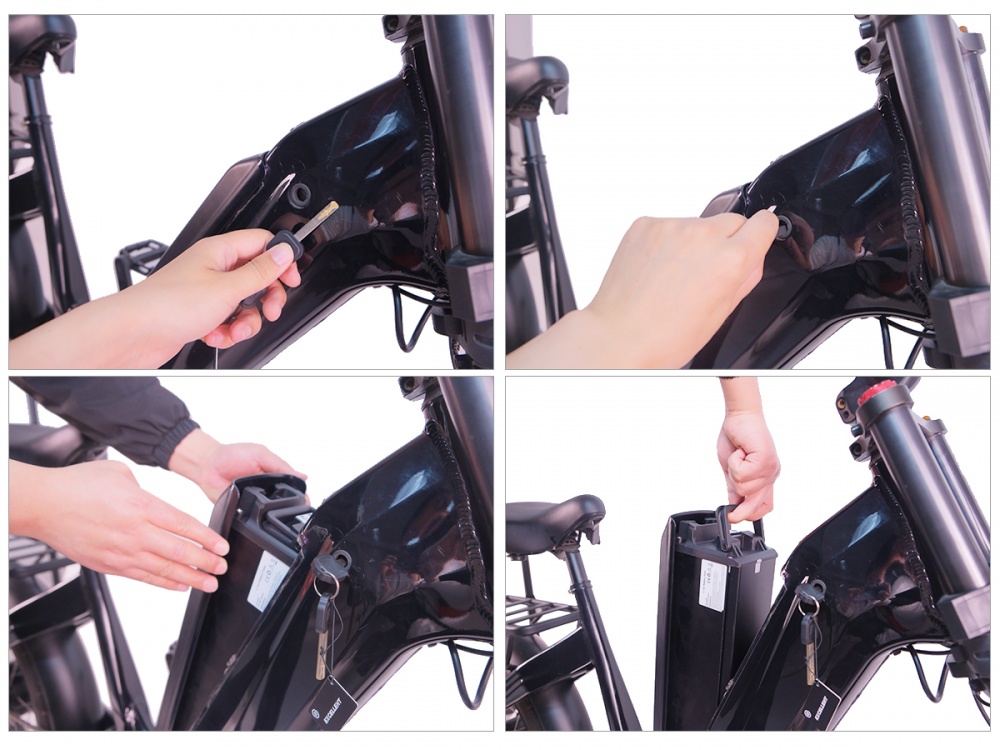

Make it easy to remove for more convenient charging,users can also charge the batteries on bike Thanks to the drop protection design,you can take the battery very easily
To enhance the mileage,The battery capacity is up to 1680WH,which provides continuous electricity to the whole system,makes it possible to get a range of 95KM
GPS tracking:Real-time position&track your e-bike
Unlocked:Unlock the e-bike via NFC card only,Automatically locked if turn off the display
Movement Alarm:your App will push notification when movement

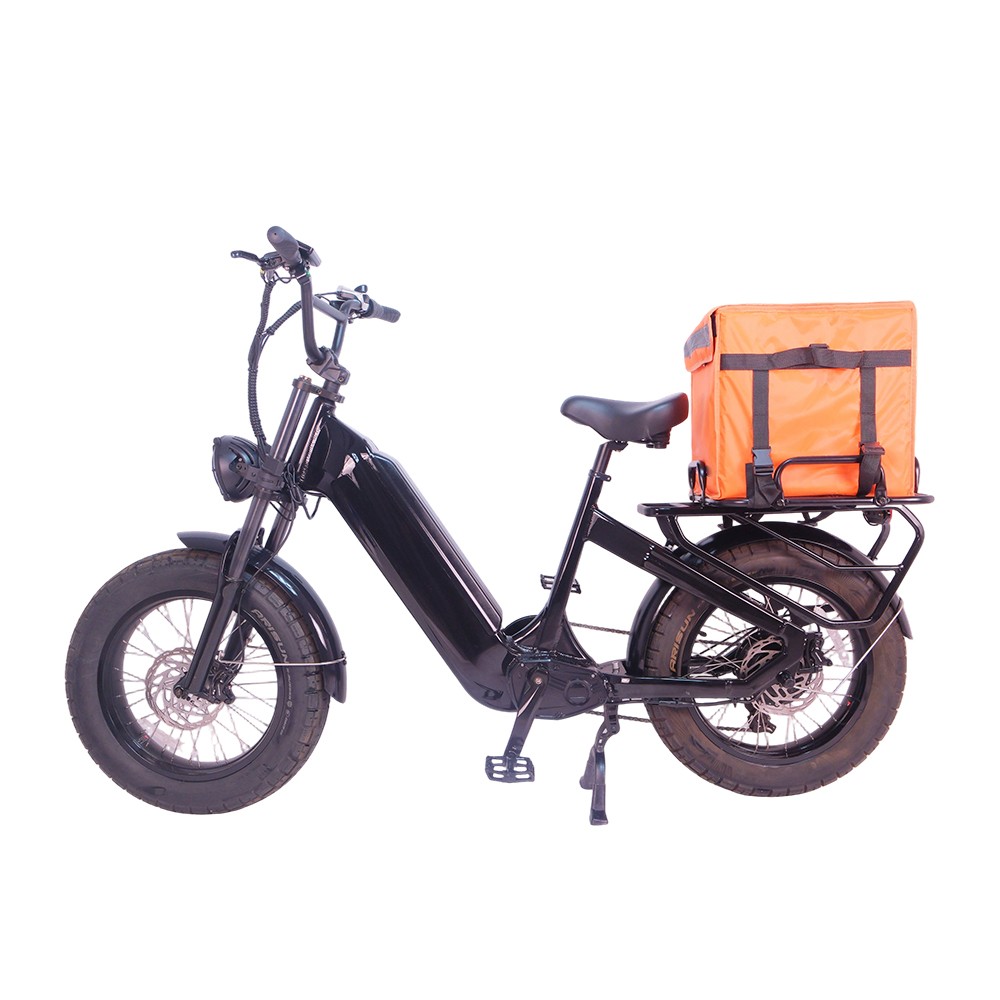

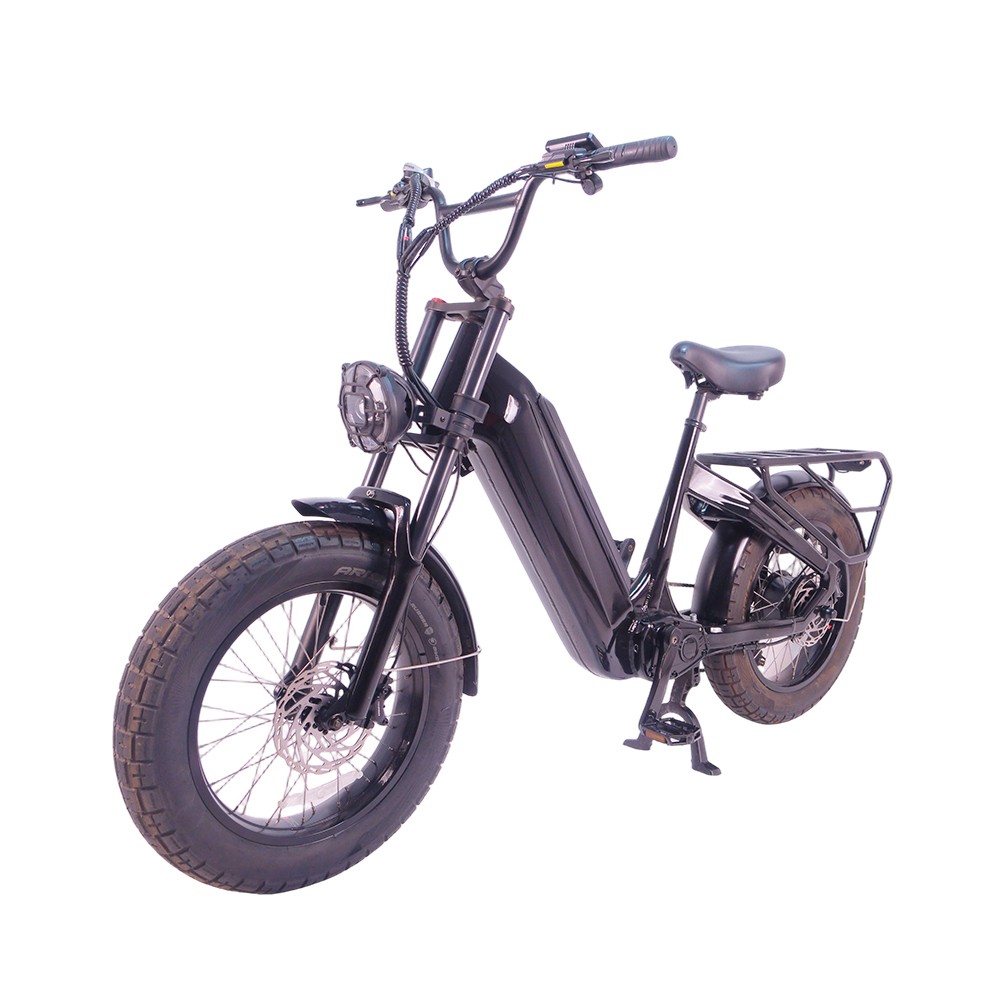

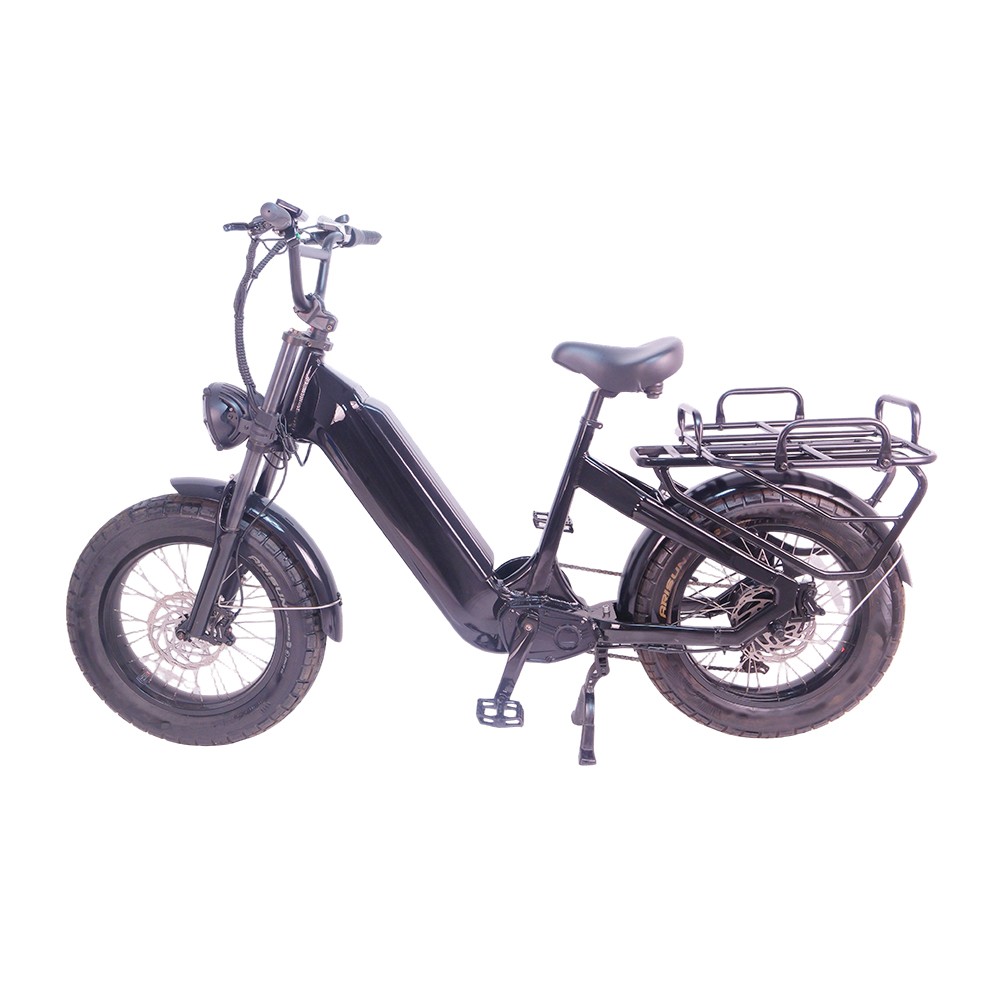

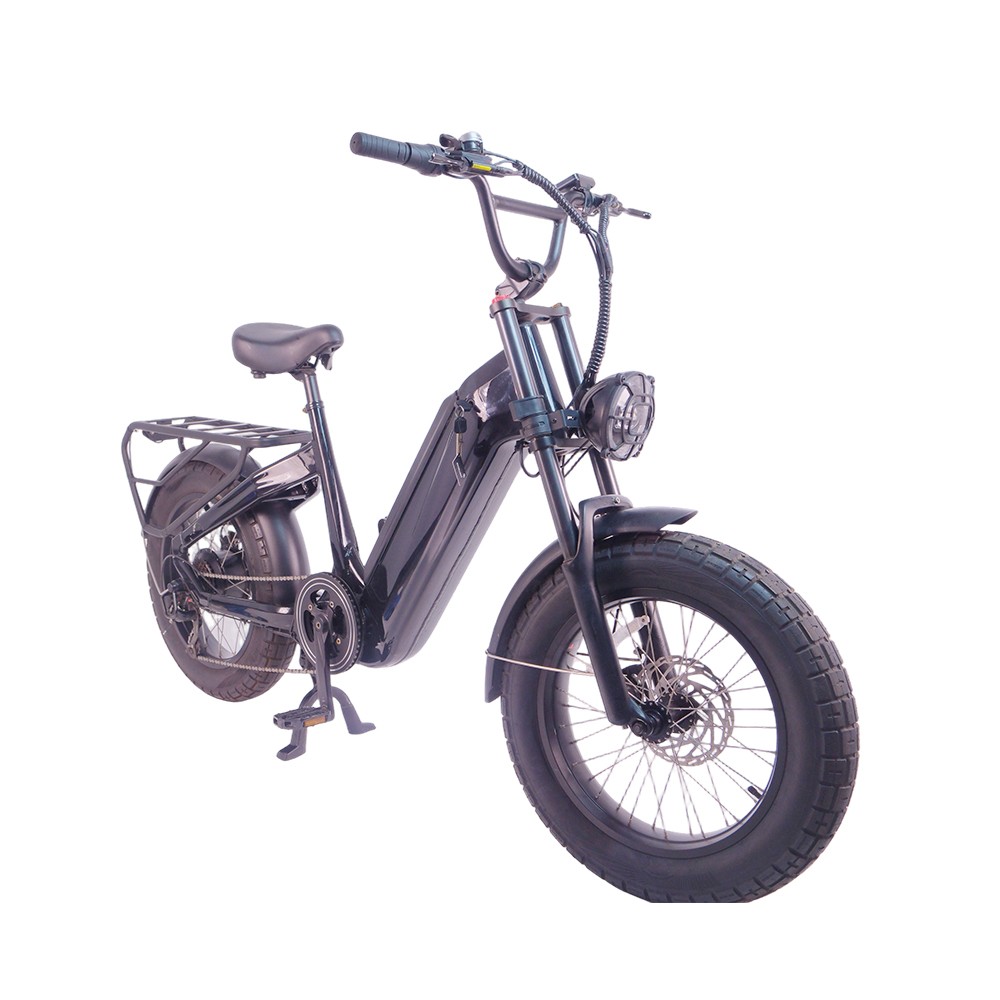

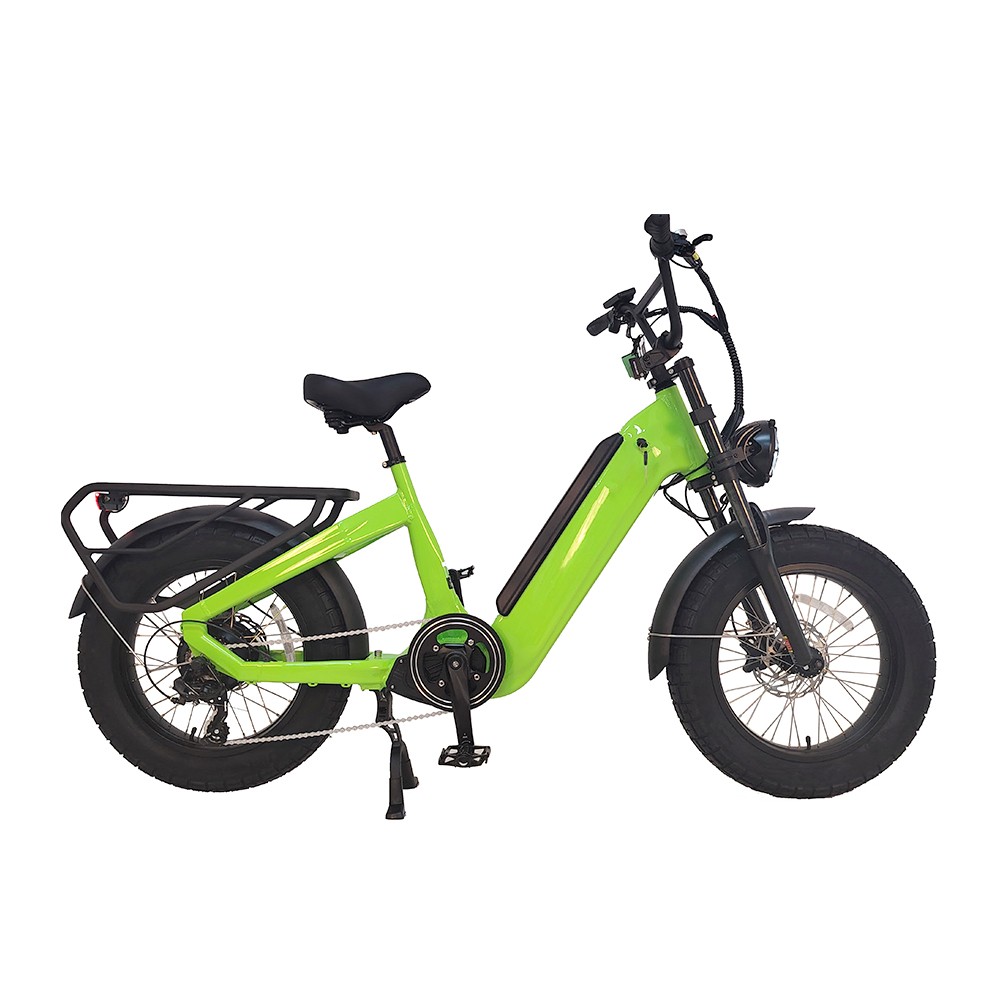

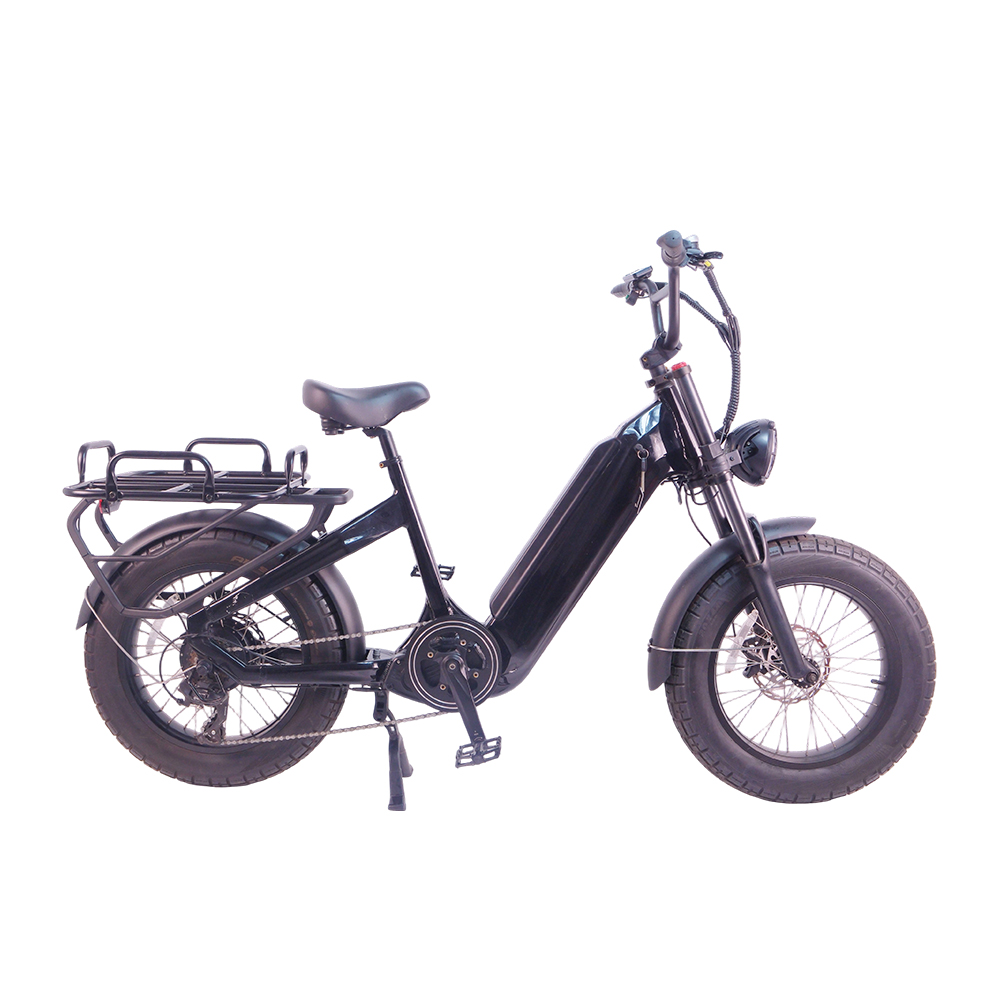

| Frame | Alloy 6061 ,T4/T6,20*450,Step thru fat bike |
| Battery | 48V35AH,1680Wh, down tube,removable,Samsung 21700 cells |

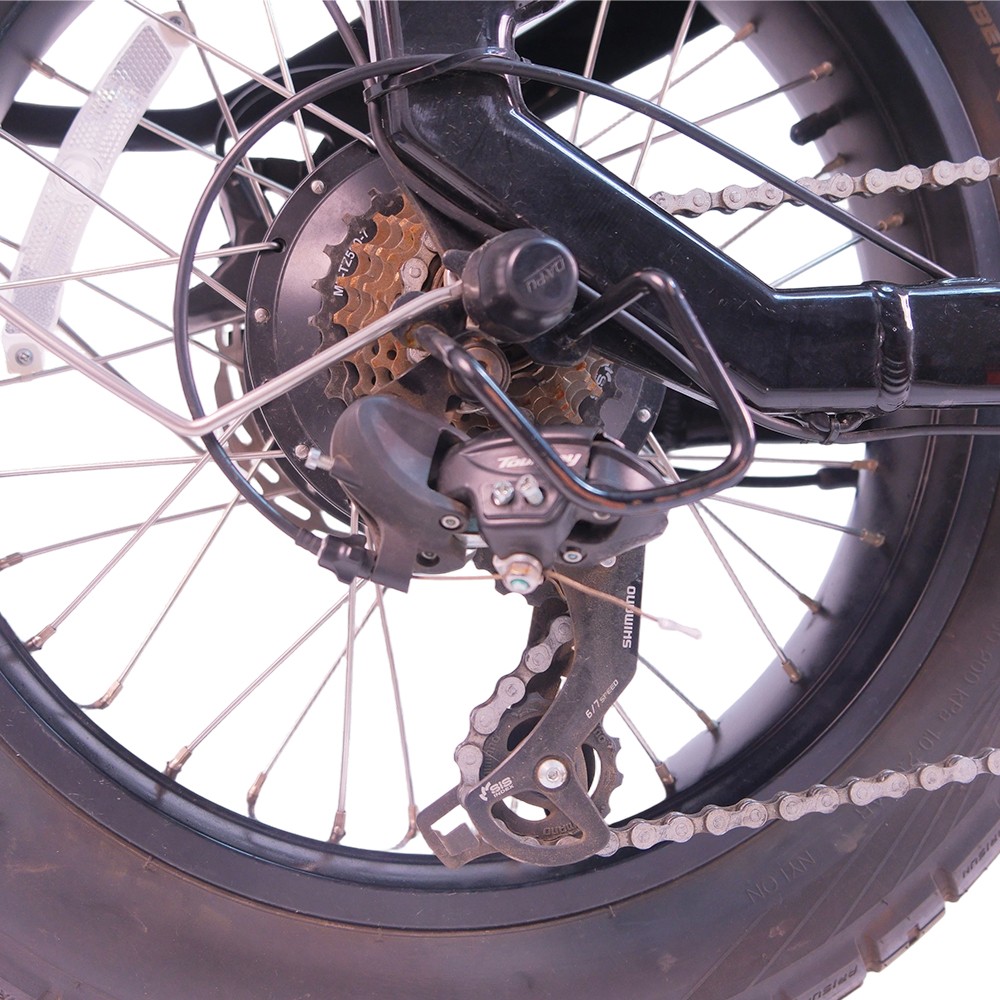

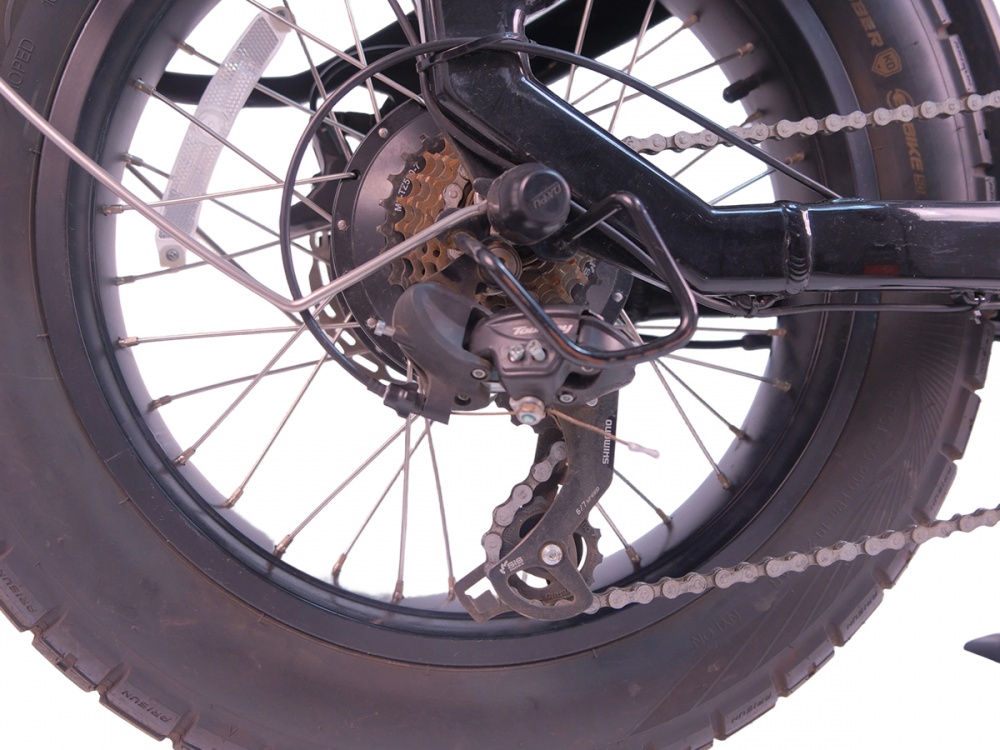

| Motor Power | 48V500W Rear Hub motor,60NM,DAPU |

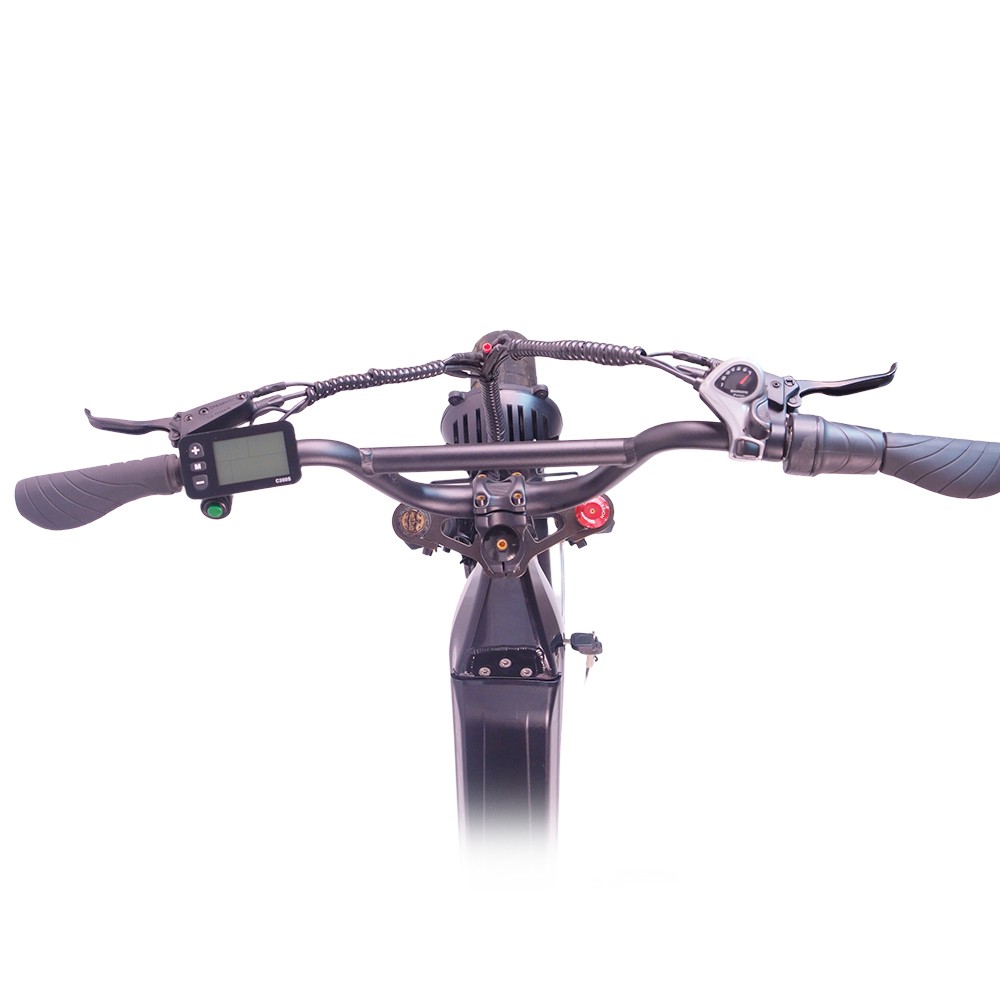

| Display | LCD ,C300S,Mounted on Left handlebar,NFC ,Bigstone |
| Controller | 9 mosfet,20A current,Sinewave,LD power |
| Sensor | Cadence sensor,LD power |
| Charger | 48V7A fast charger,4+2 pin,100-240V AC input |
| Suspension | FAT,All Alloy,Suspension fork W/Hydraulic lock-out,MOZO |

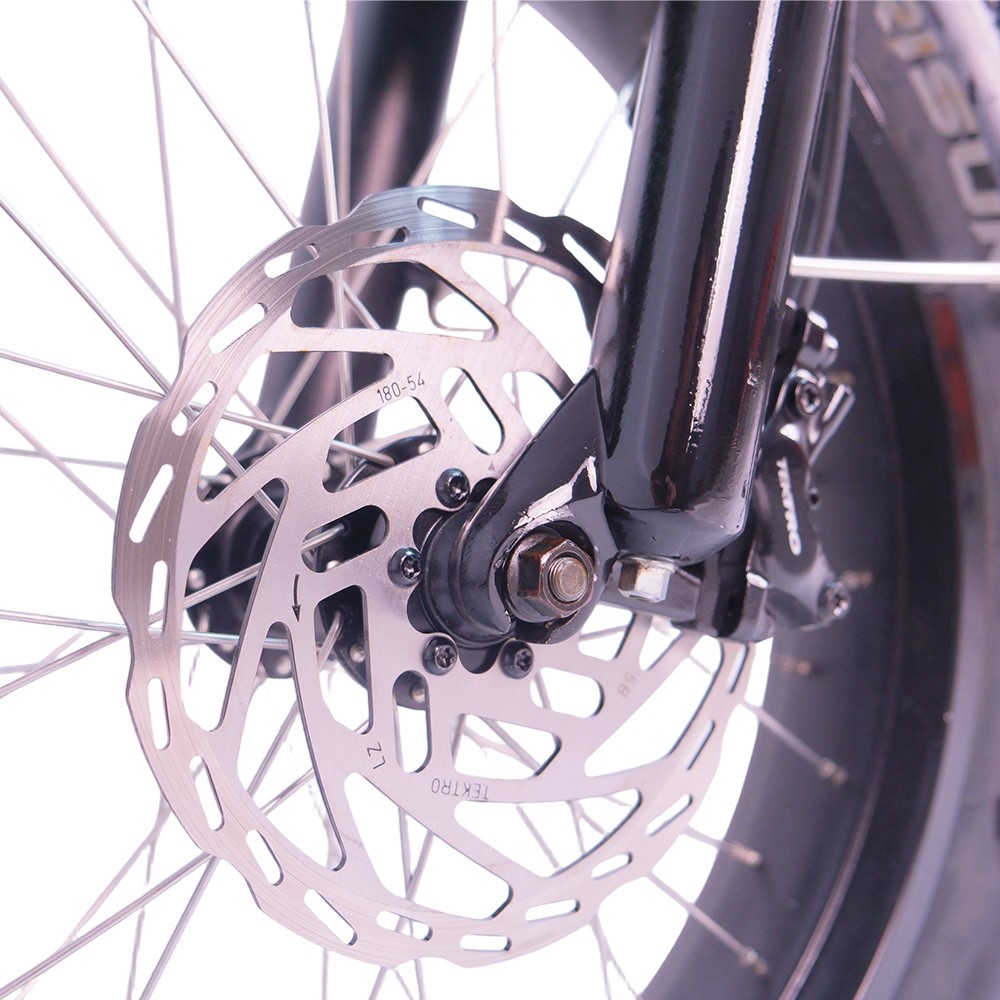

| Brake system | E3940,Hydraulic disc brake,4 piston,180/180mm rotor,Tektro |

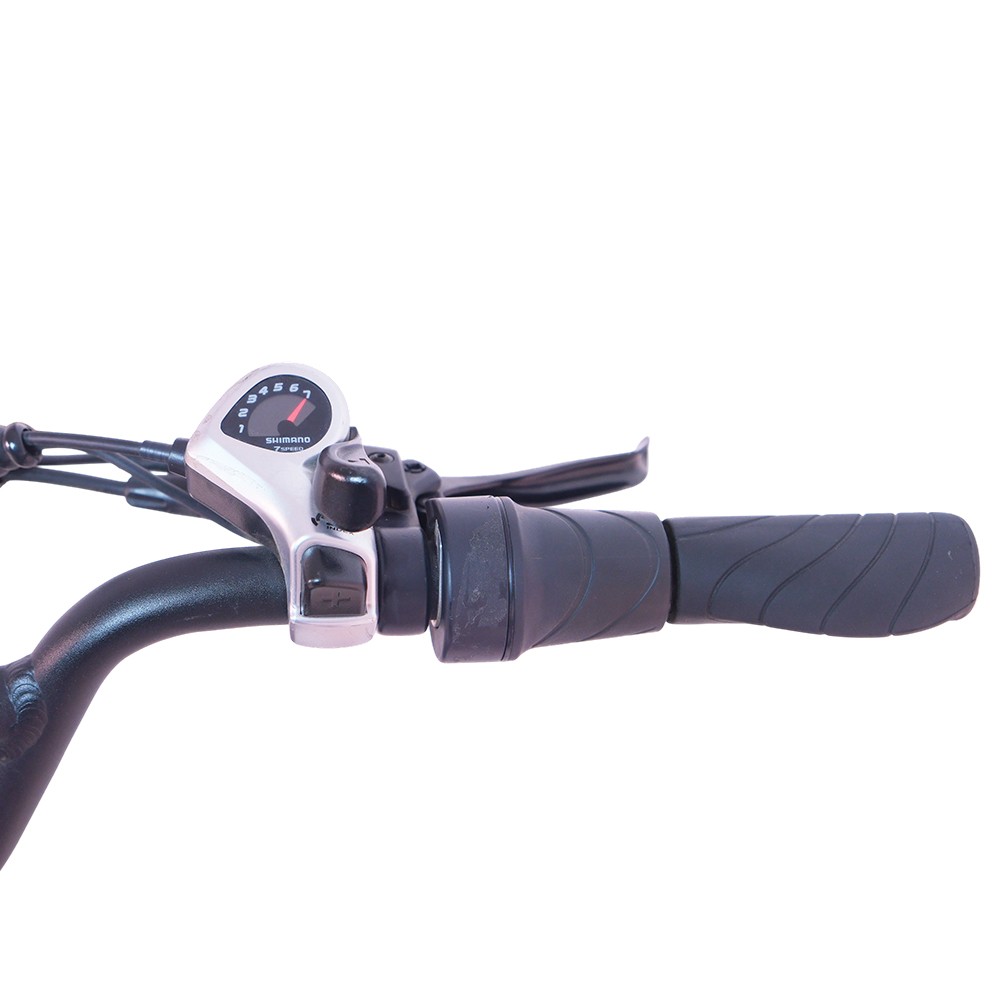

| Gears | 7 spd gears,W/thumb shifter,Shimano |
| Tires | 20*4.0,puncture-proof,Chaoyang |

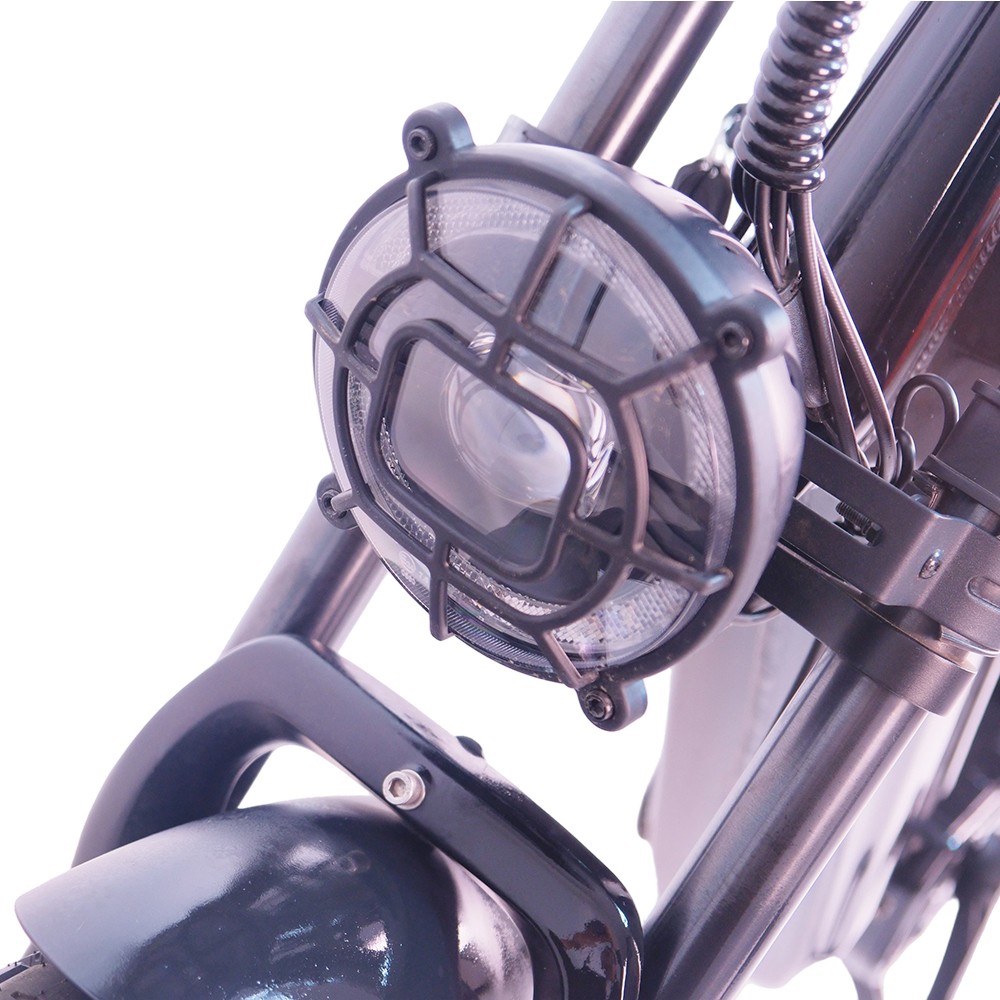

| Accessories | Lights,Fenders,Rear Rack,Horn |
| Max speed | 32KM/H (20MPH) |
| Range | 95-105KM |
| Climbing | 15 degree |
| Max load | 200Kgs |
| Functions | brake light,Horn,NFC card,Throttle |
| Total Length: | 1880mm |
| RC: | 520mm |
| FC: | 750mm |
| Wheelbase: | 1272mm |
| Seat tube: | 460mm |
| Reach: | 400mm |
| Standover: | 375mm |
| Max seatheight: | 1060mm |
| Min seatheight: | 860mm |
| Wheel size: | 20 inch |
| Bike weight: | 38Kgs |

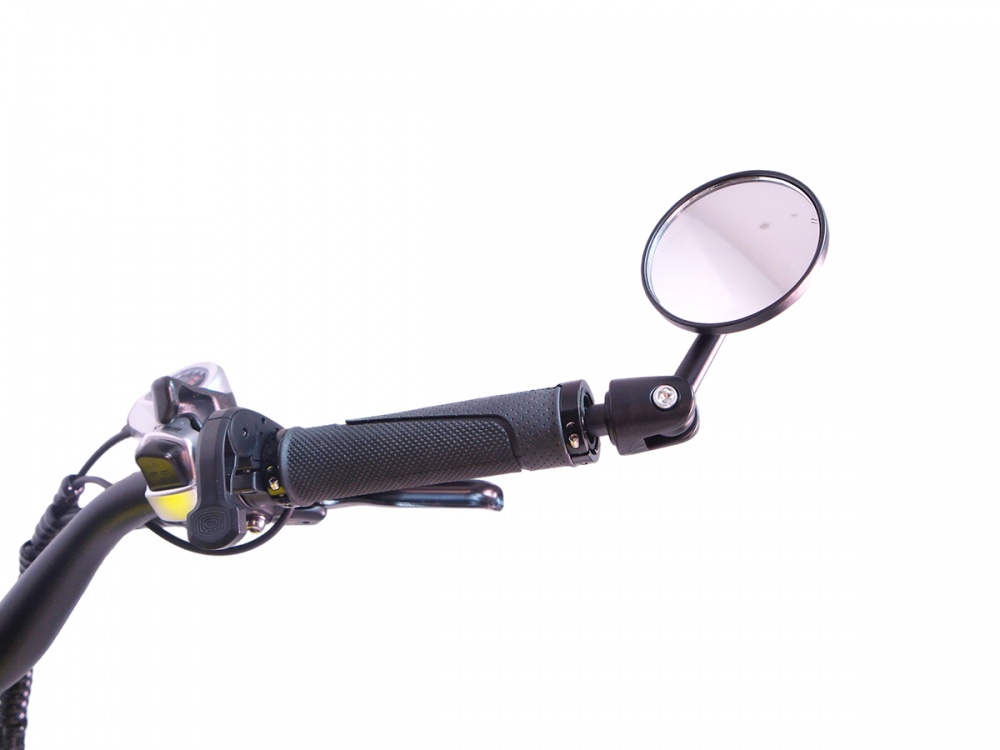

Back mirrors on two bar ends facilitate the observation of the rear traffic conditions
It should match with grips with open end

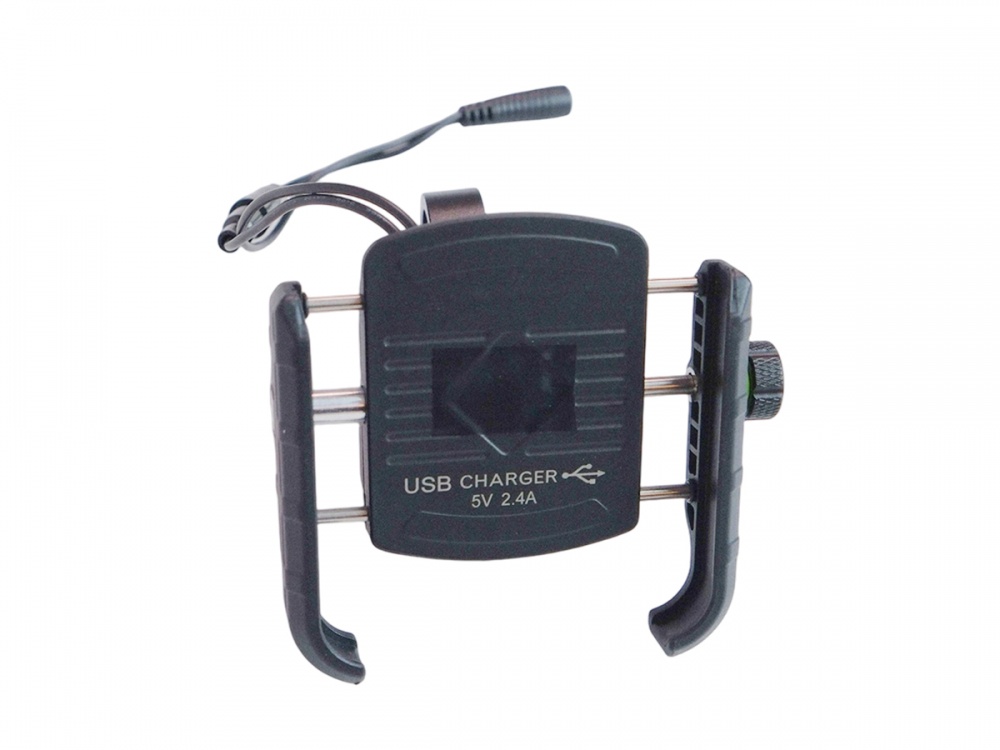

Mobile Phone holder,5V2.4A，Your phone is the display

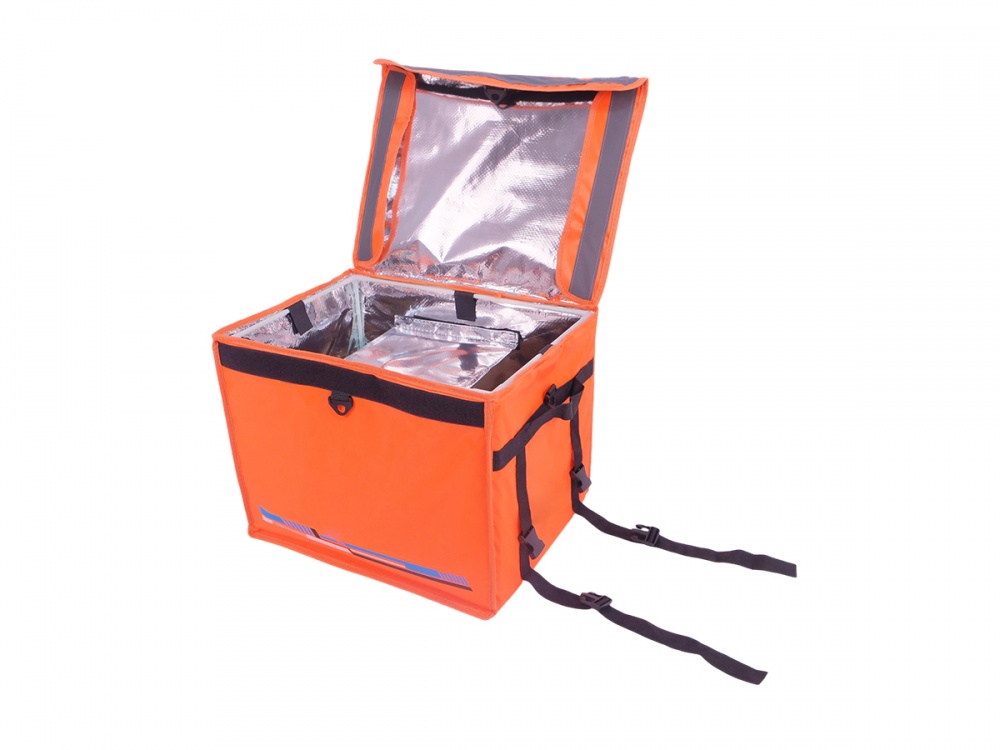

Put-On-Rack insulated box

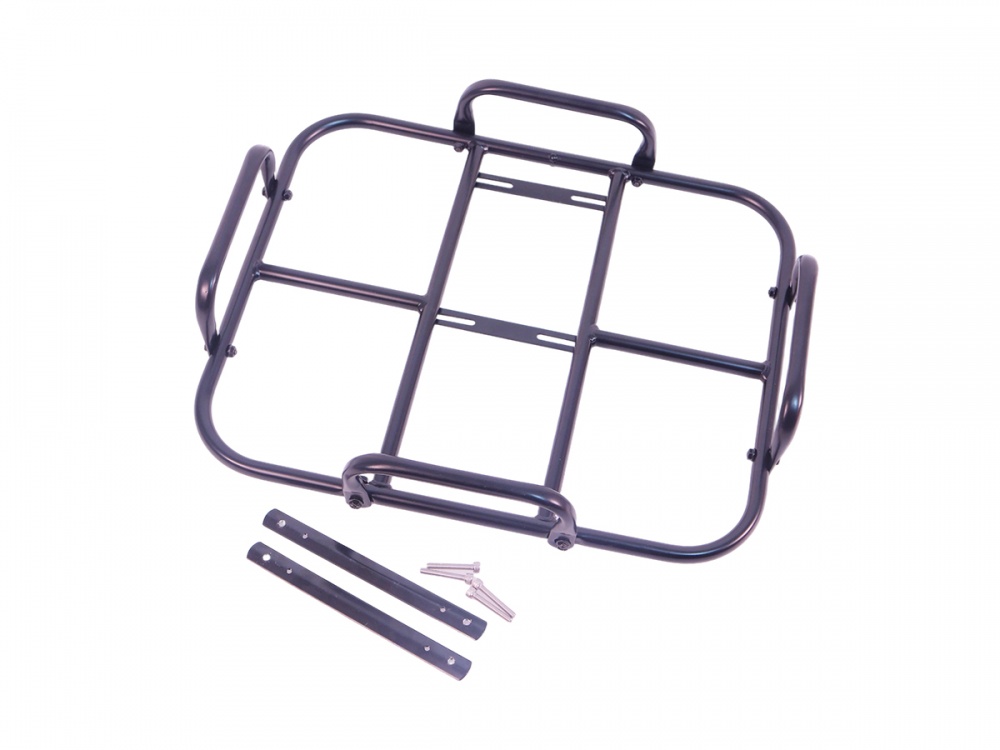

E-bike Food Delivery Rack
