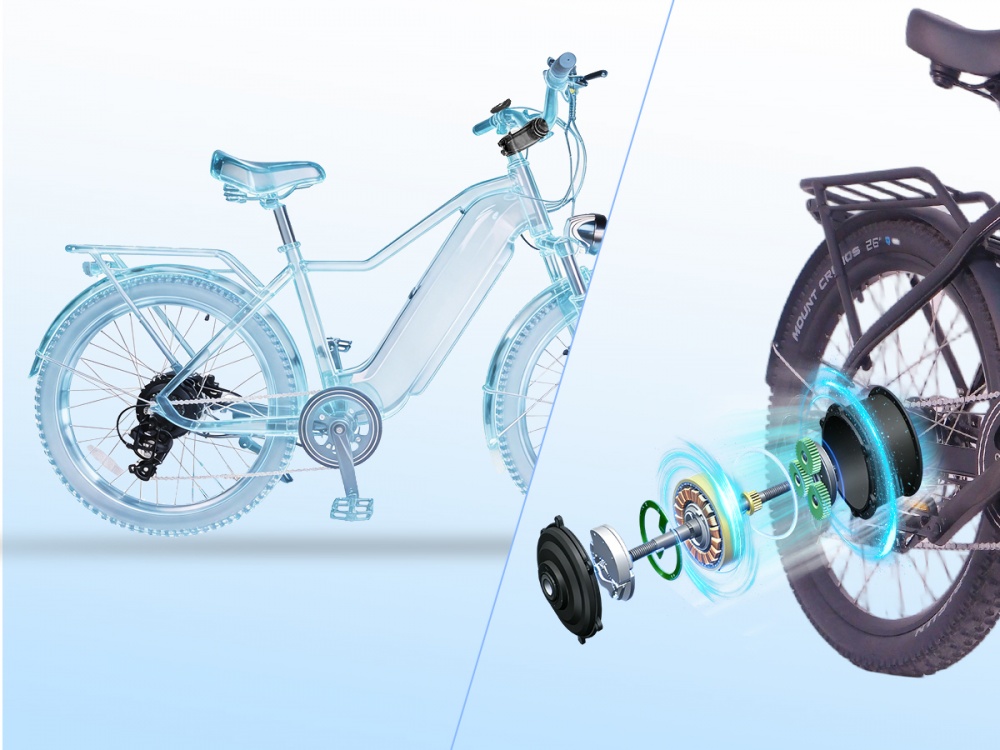

Max Torque Up to 65NM,500 watts of rated power,peak power could reach 800 watts
Due to the system's dual sensor design,the rider has full control at all times and enjoys extremely sensitive responsiveness.
Scan the QR code,then enter into the Interface,and your e-bike will be connectted
The display offers 0-5 levels,which apply to different application scenarios

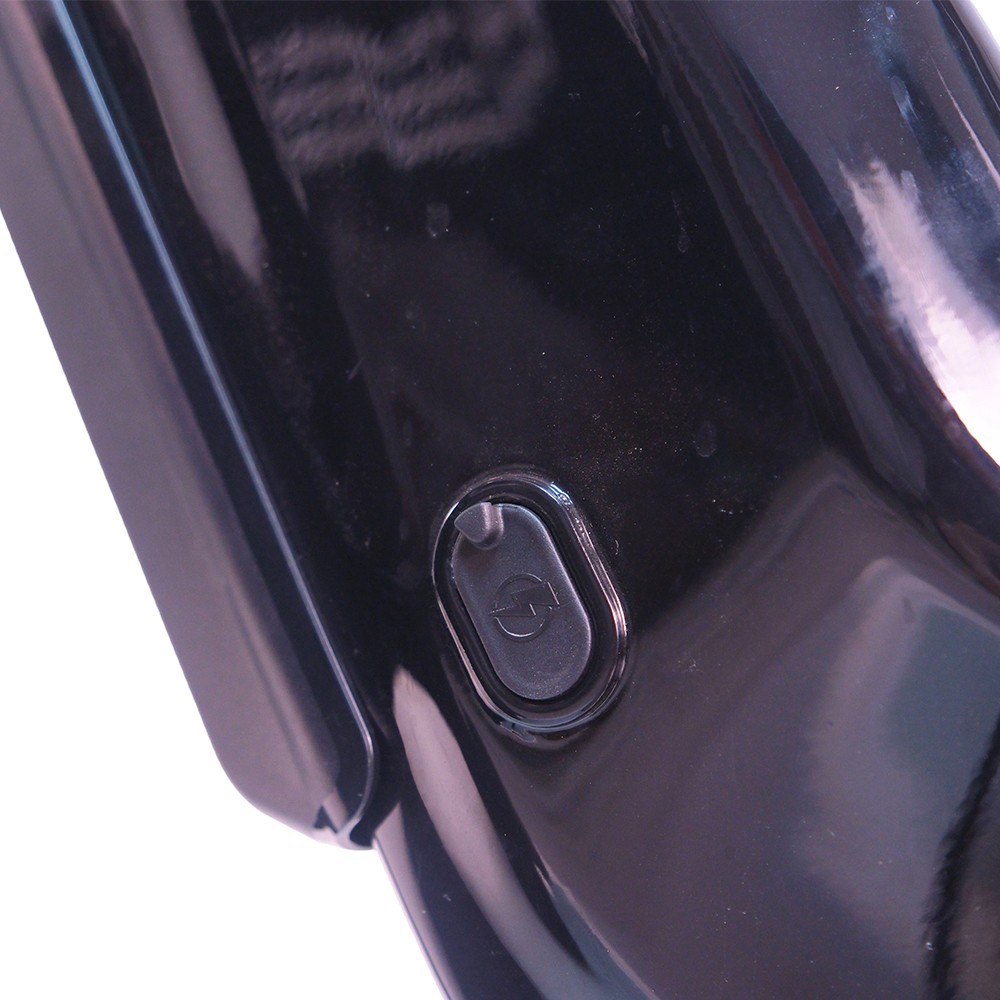

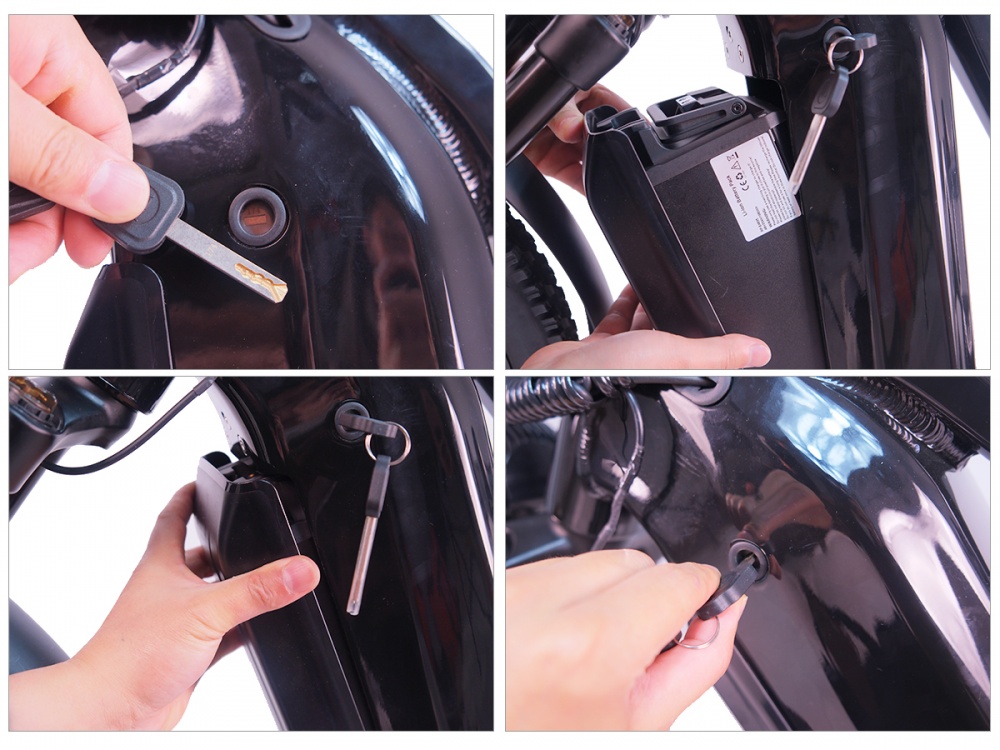

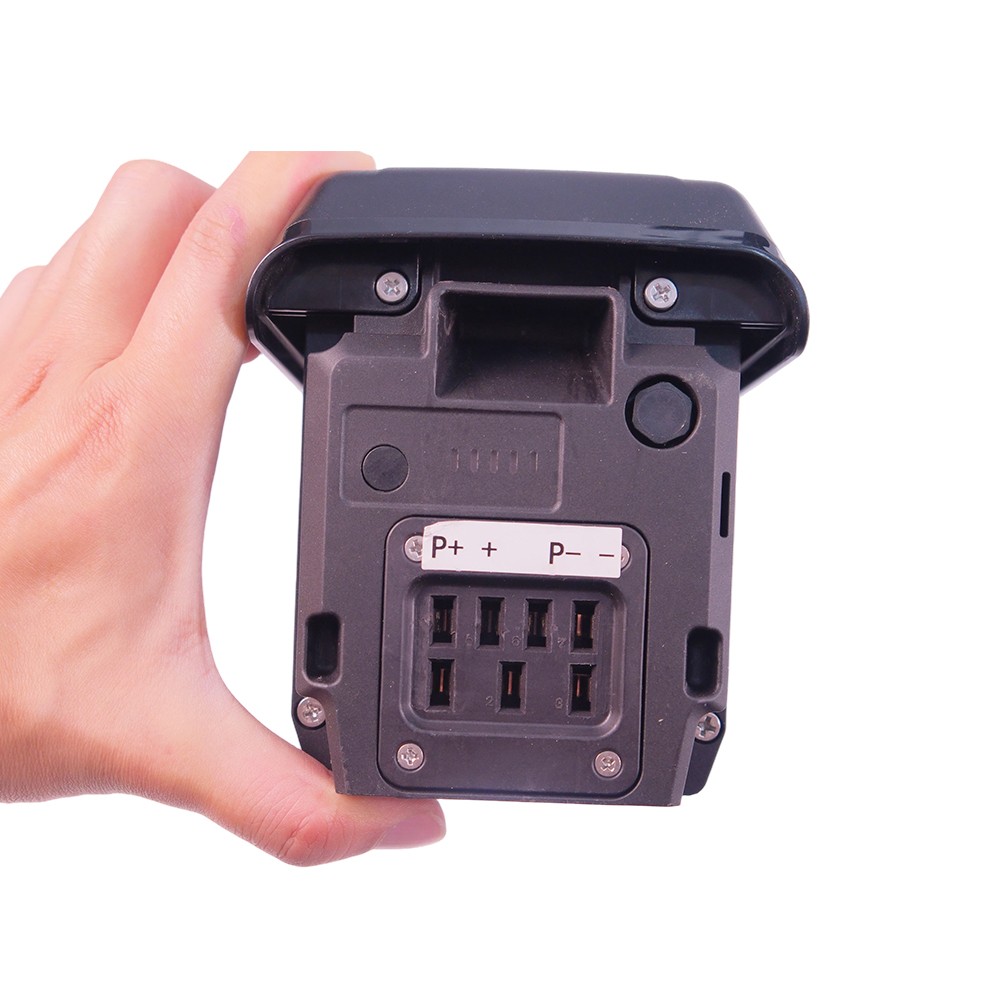

Make it easy to remove for more convenient charging,users can also charge the batteries on bike Thanks to the drop protection design,you can take the battery very easily
To enhance the mileage,The battery capacity is up to 1680WH,which provides continuous electricity to the whole system,makes it possible to get a range of 90KM
GPS and Bluetooth connectivity,that Allows reading data from the E-bike via our own patent CAN bus
An international SIM card could make you ready to conquer any place on Earth(Your market and SIM card should be required before shipping)

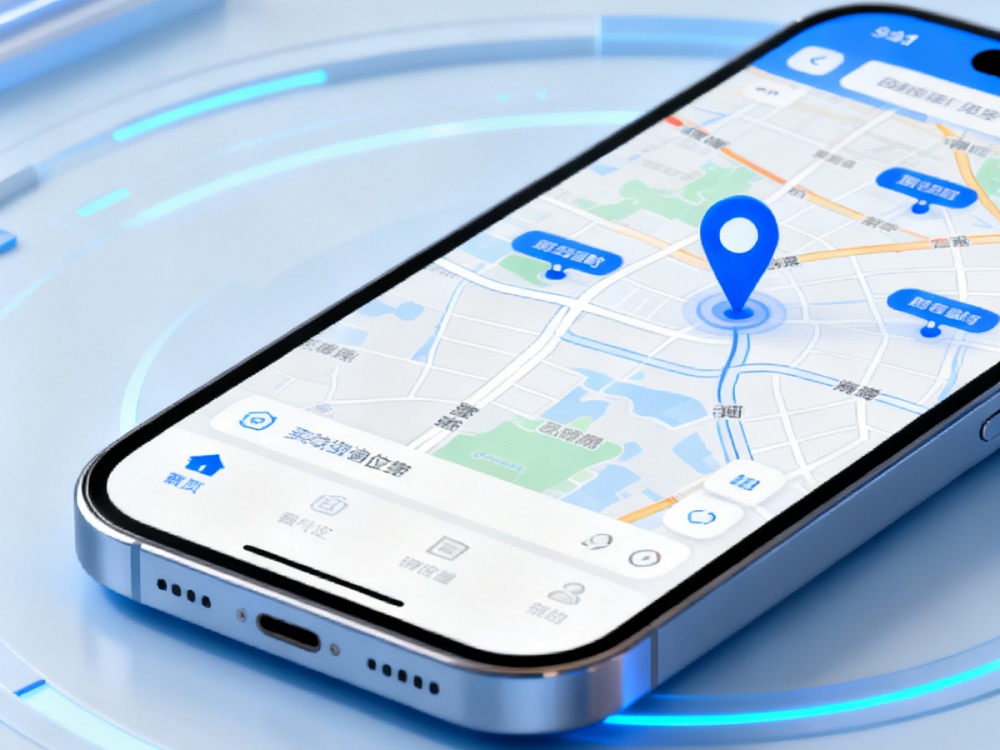

GPS tracking:Real-time position&track your e-bike via Street Team(O&M management)
Remote lock:Lock the e-bike via App,even when its lost
Movement Alarm:your App will push notification when movement

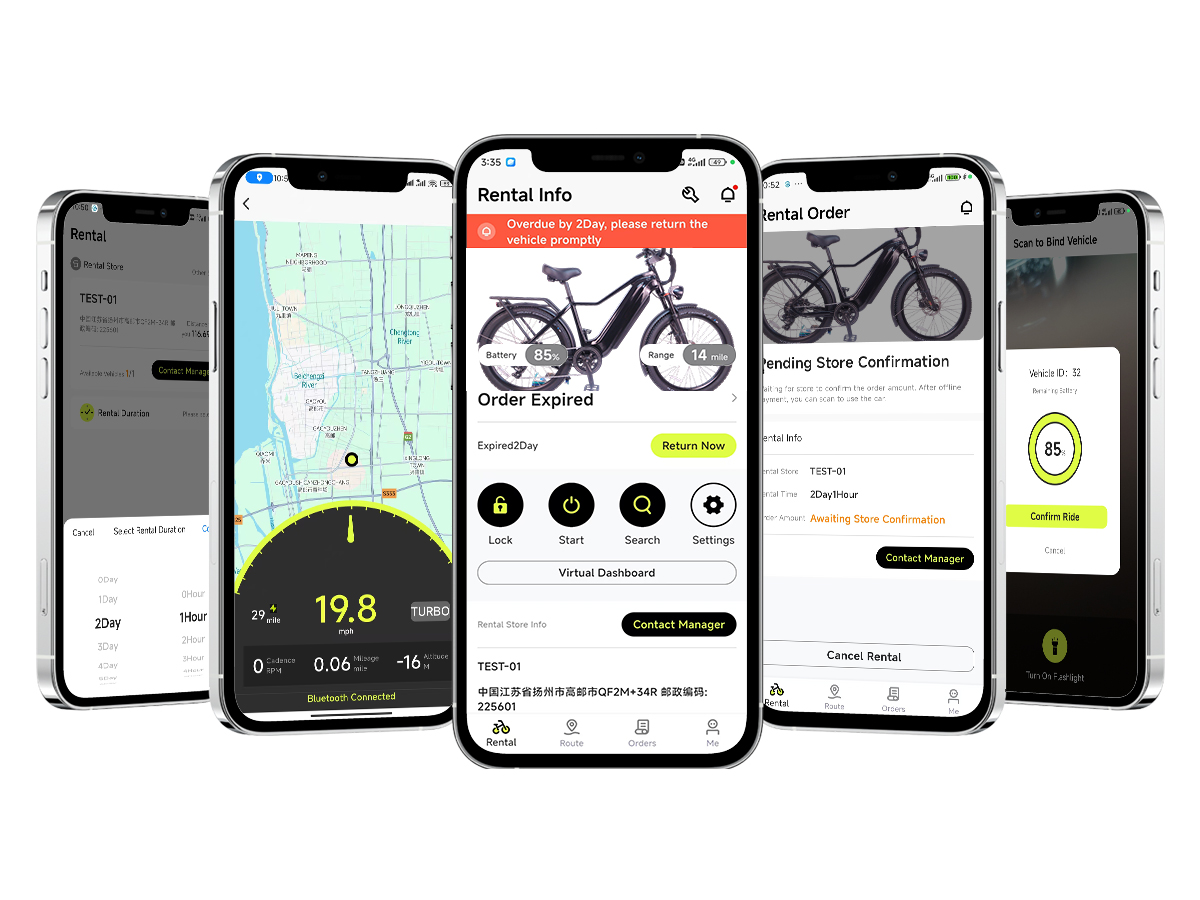

Matching with our Phone holder,your smart phone could be a BIG display,with the following functions
*Remote control(Lock/Unlock,On/Off)
*Search E-bike
*Virtual dashboard(Trip,Speed,Levels,RPM,mileages and etc)
*Report problems and accidents
*Contact Stores by phone

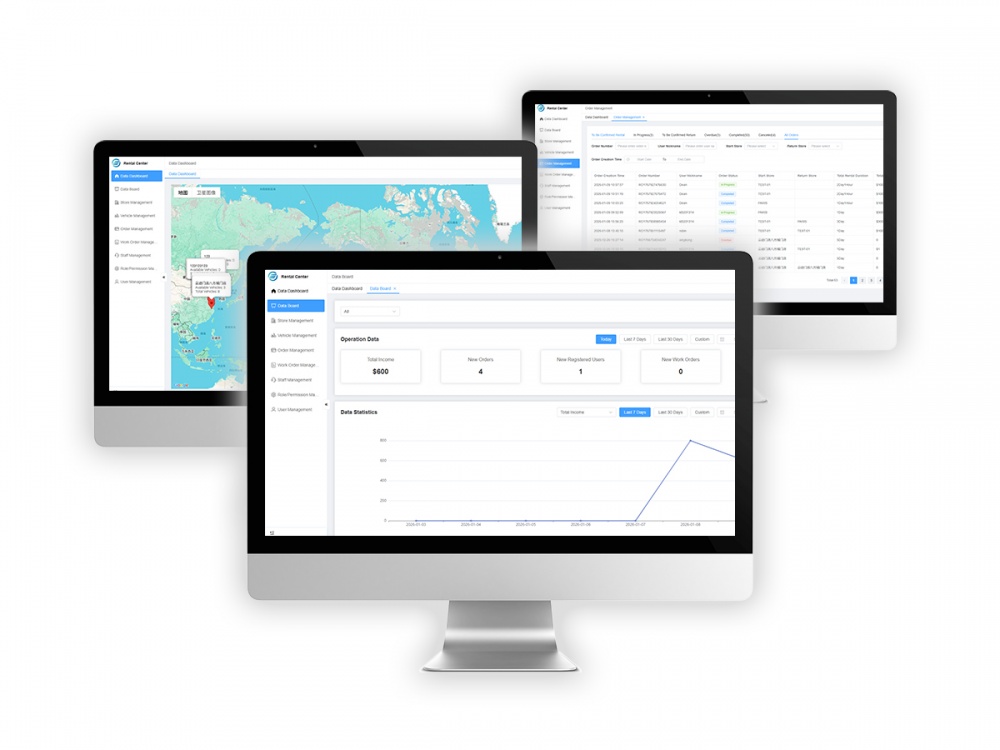

It offers the real-time location of your fleet and vehicles available for rental
1.Dashboard
2.Order management(charge,return etc)
3.Vehicle management (Remote shut down if over due,Search e-bikes by street team)

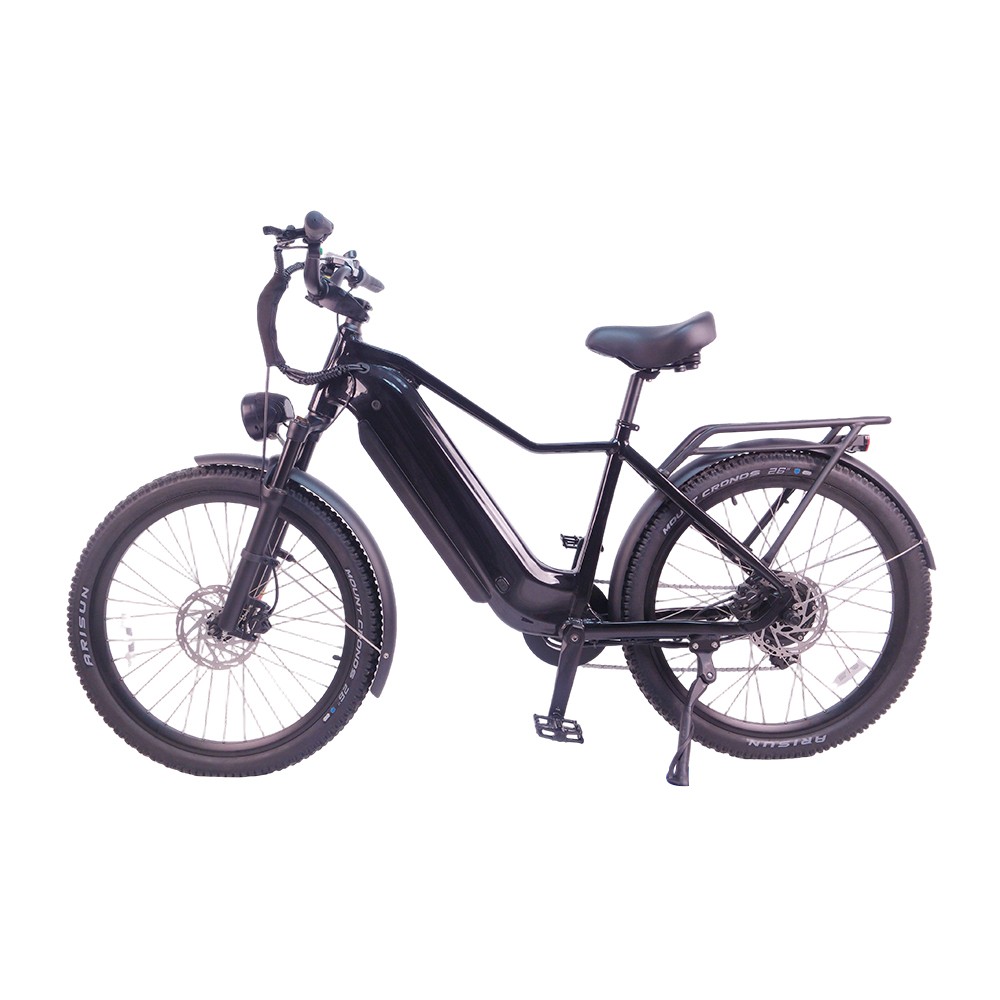

| Frame | Alloy 6061 ,T4/T6,26*480,Step Cross MTB |

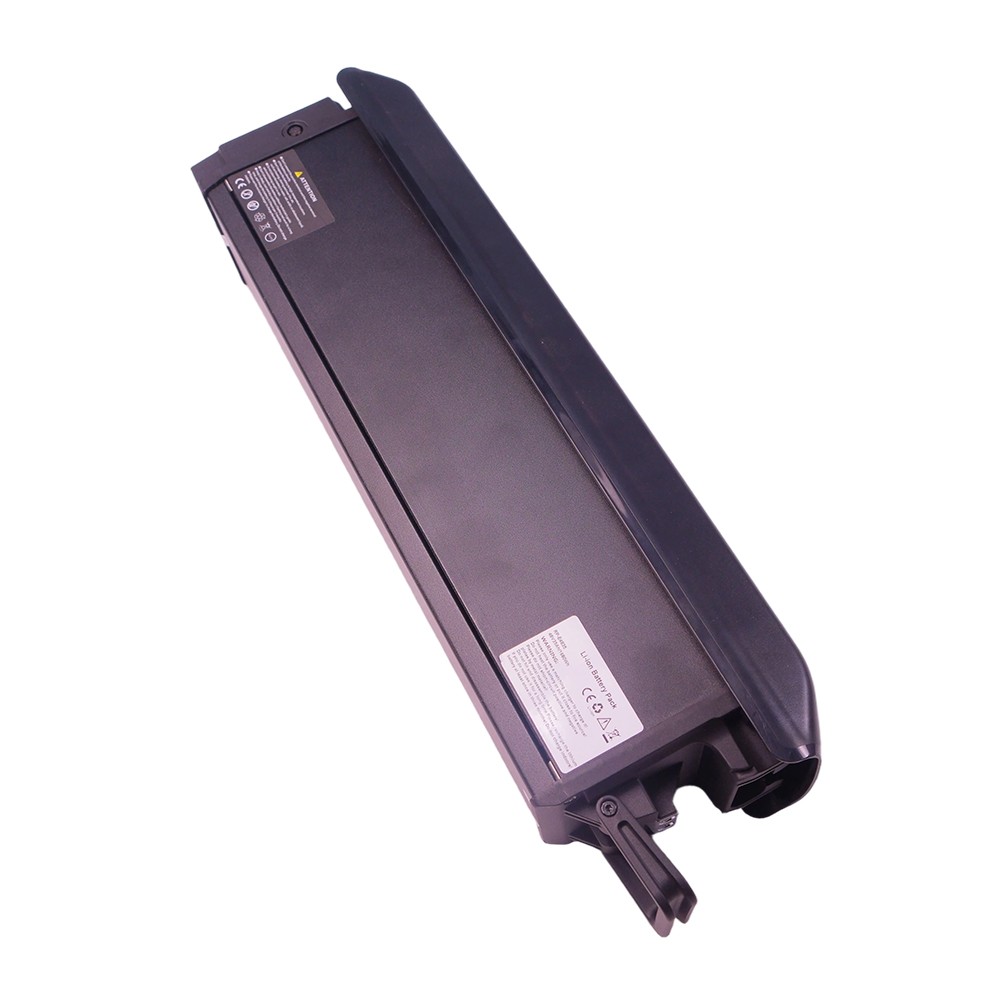

| Battery | 48V35AH,1680Wh, down tube,removable,Samsung 21700 cells |

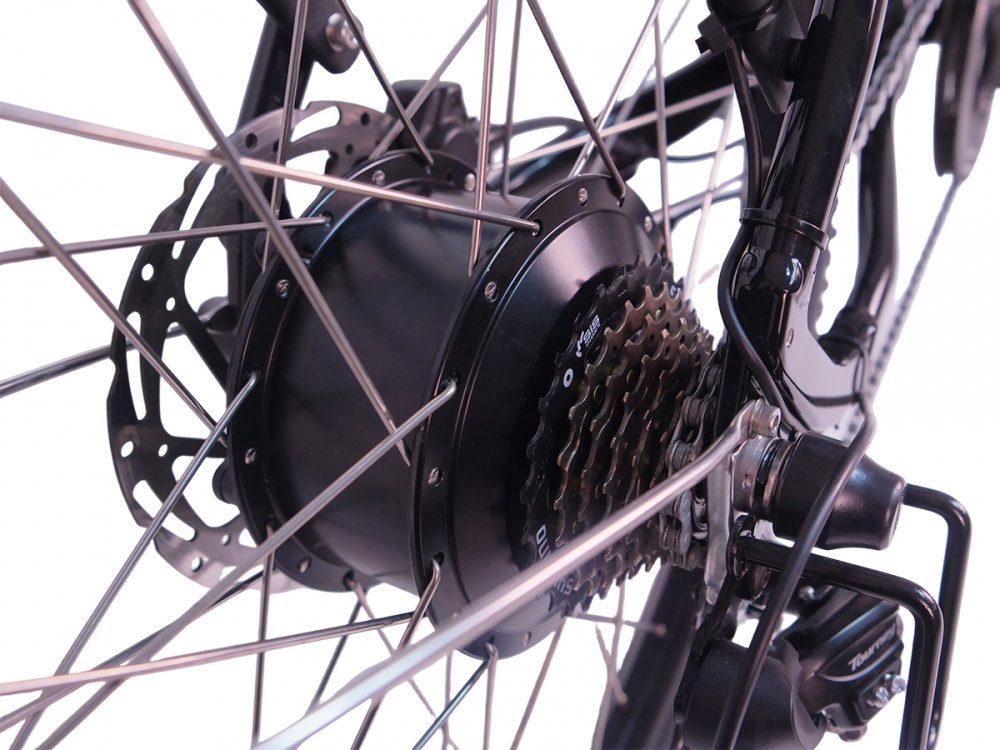

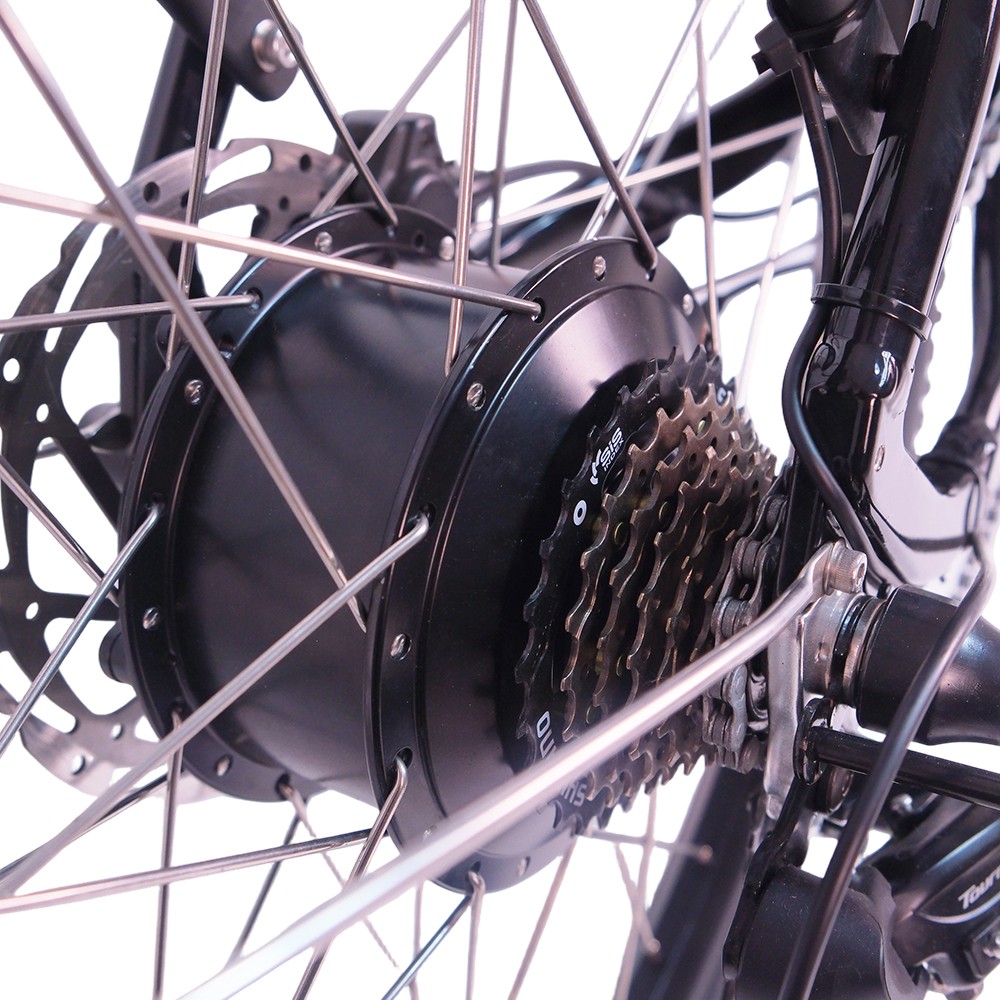

| Motor Power | 48V500W Rear Hub motor,60NM,W/smart lock build-in,DAPU |

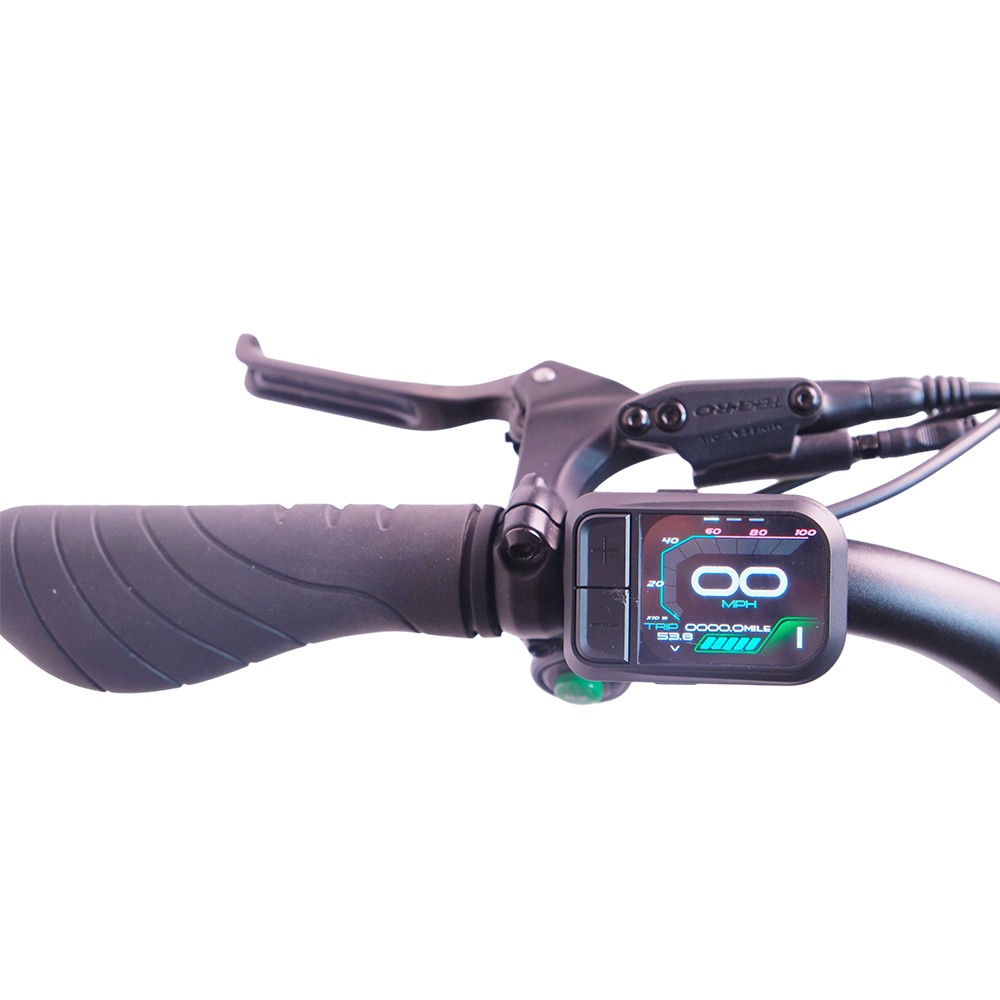

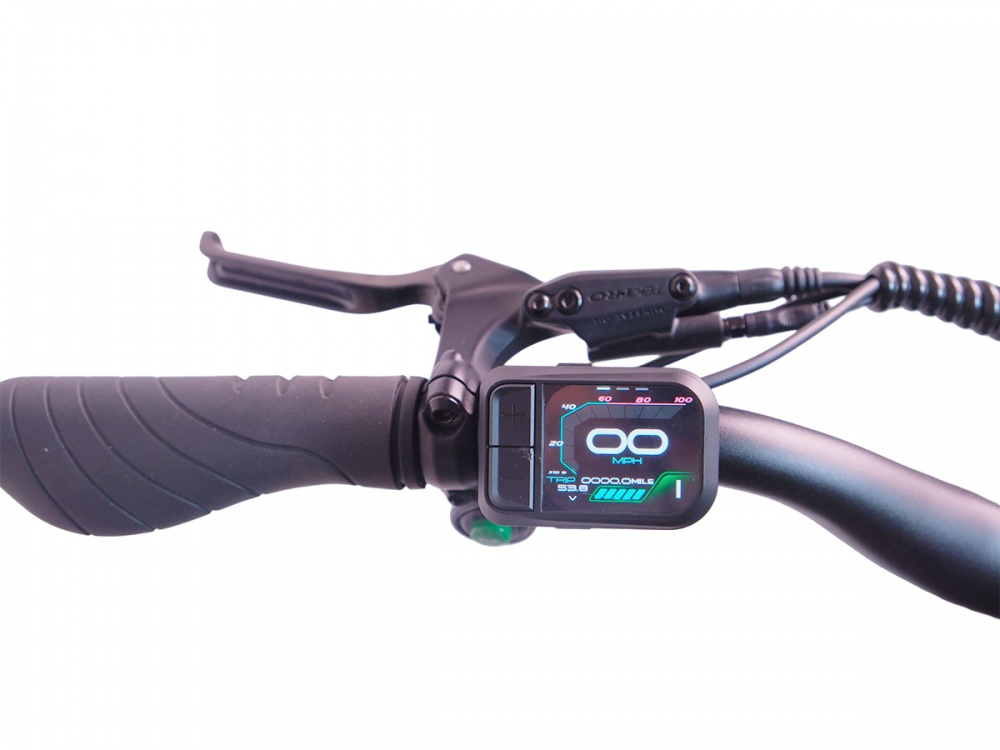

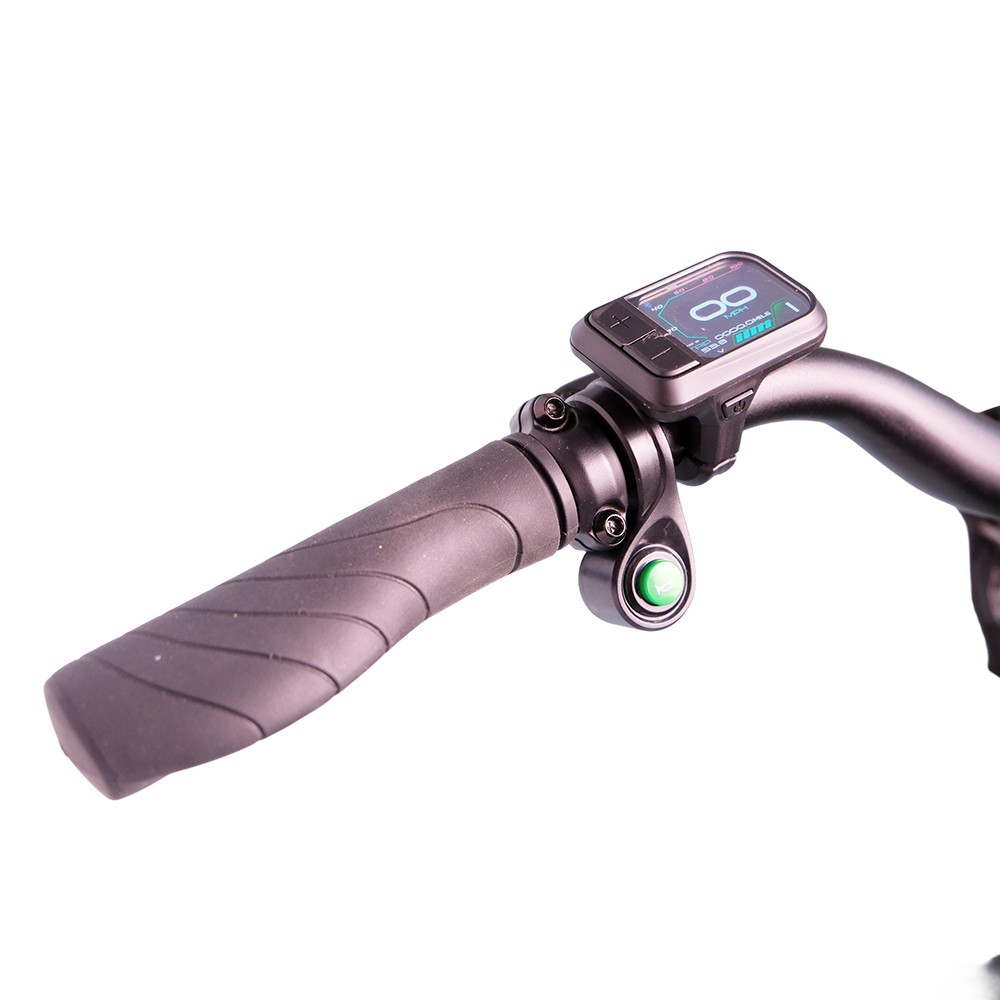

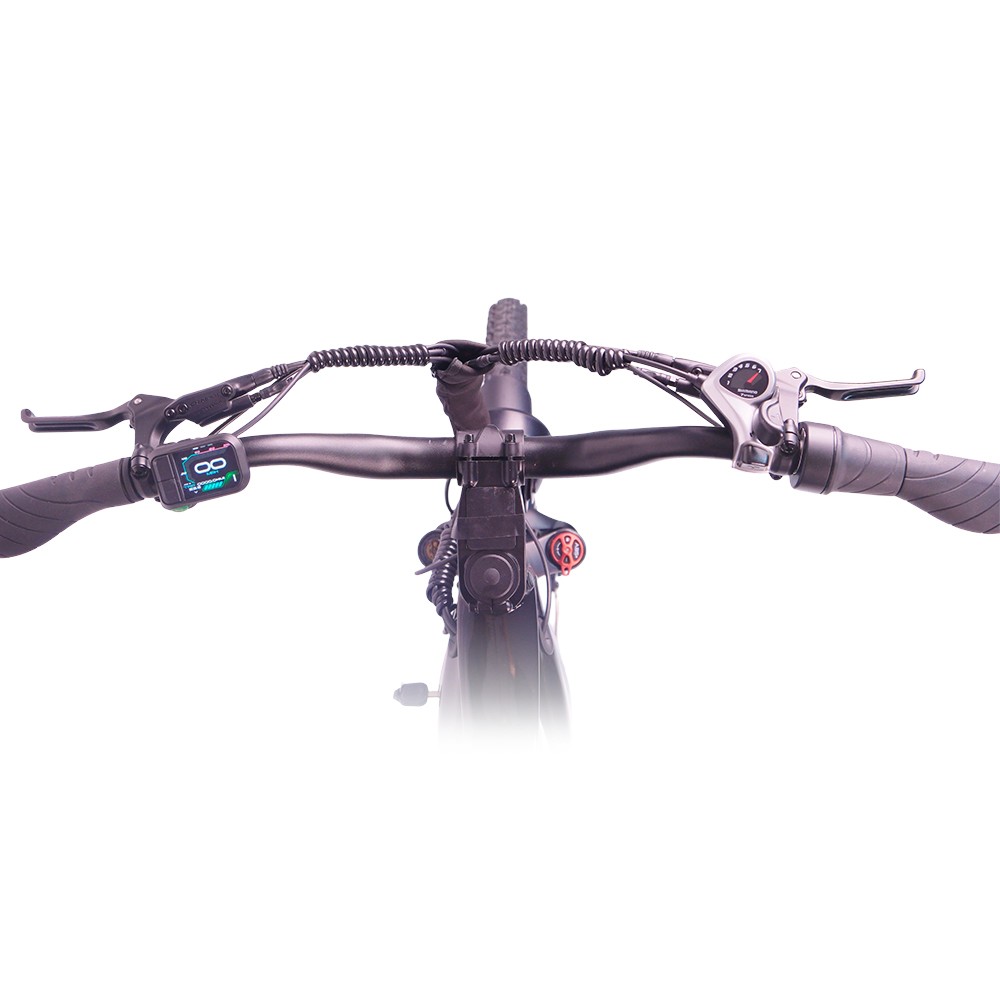

| Display | 580C,TFT 2.0",Mounted on Left handlebar,Bluetooth,APT |
| Controller | 12 mosfet,30A current,Sinewave,LD power |
| Sensor | Cadence sensor,LD power |
| Charger | 48V3A fast charger,4+2 pin,100-240V AC input,MegeTac |

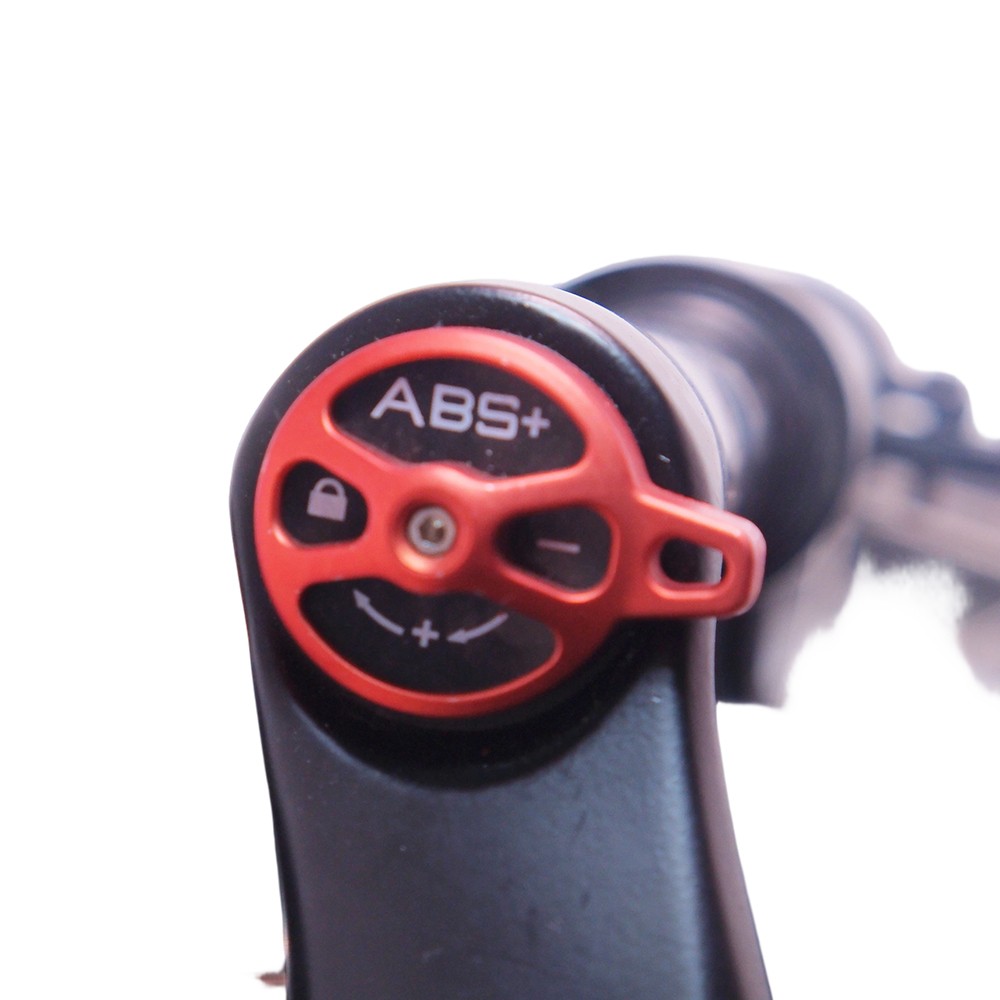

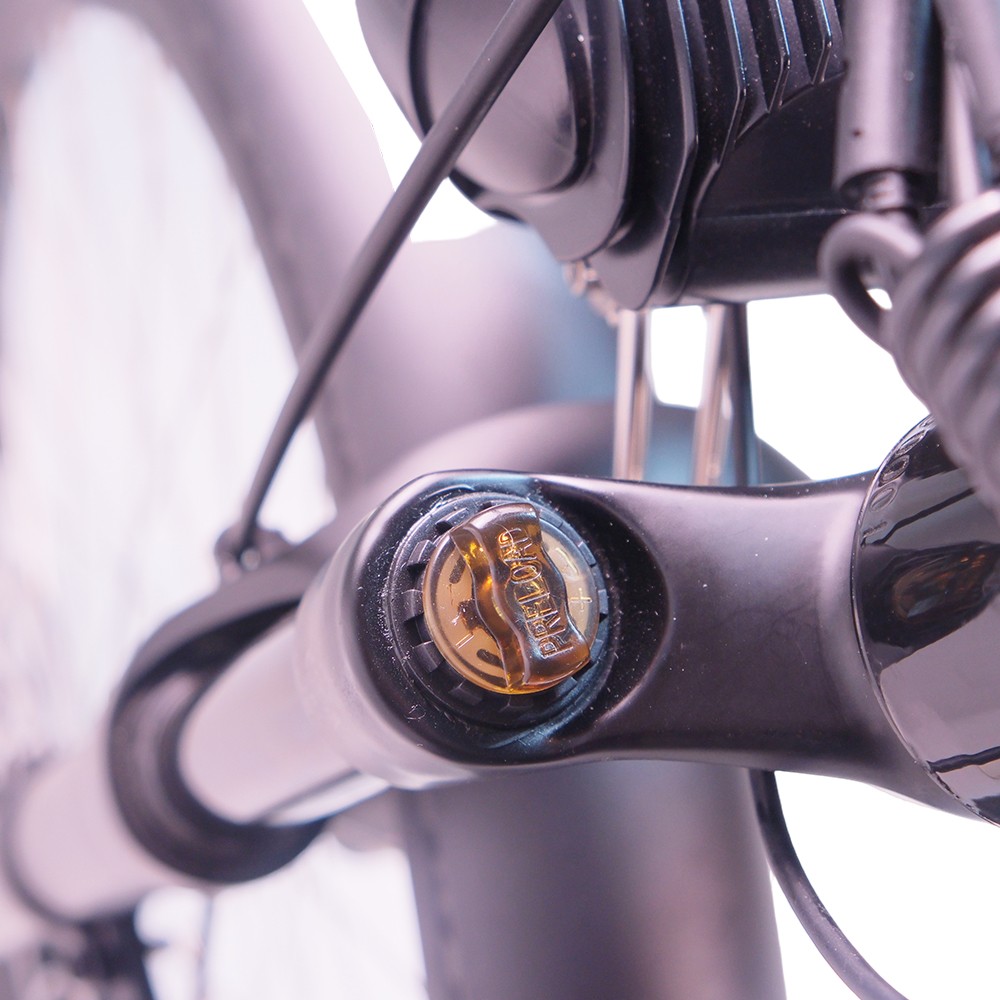

| Suspension | Peak,All Alloy suspension fork,W/Lock-out,MOZO |

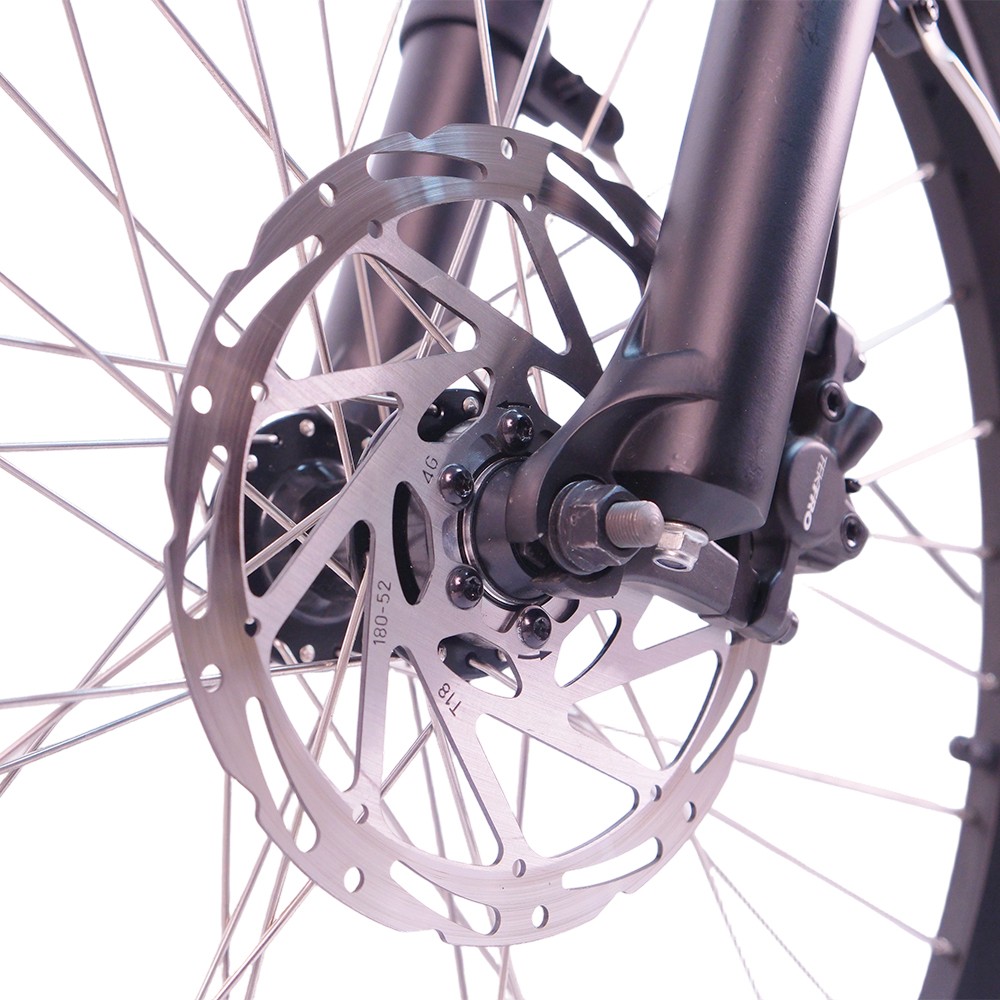

| Brake system | E3520,Hydraulic disc brake,2 piston,180/180mm rotor,Tektro |

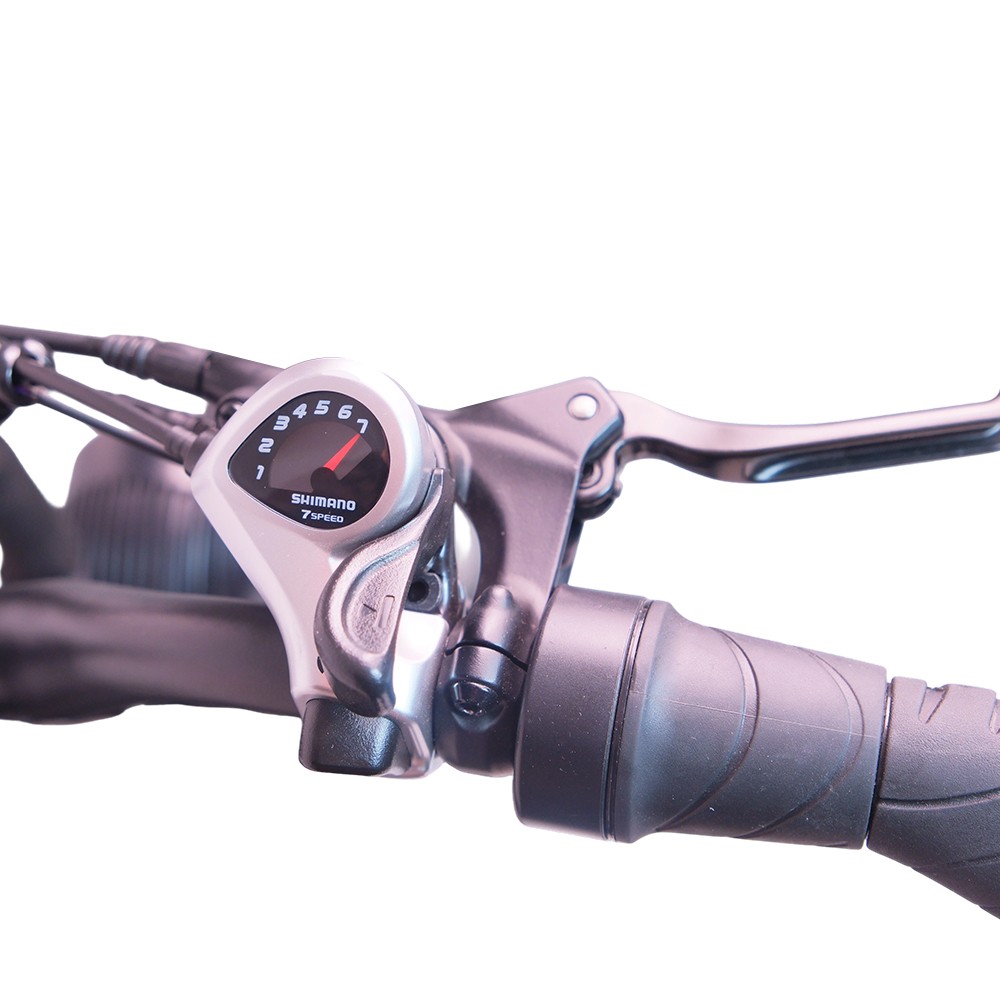

| Gears | 7 spd gears,W/thumb shifter,Shimano |

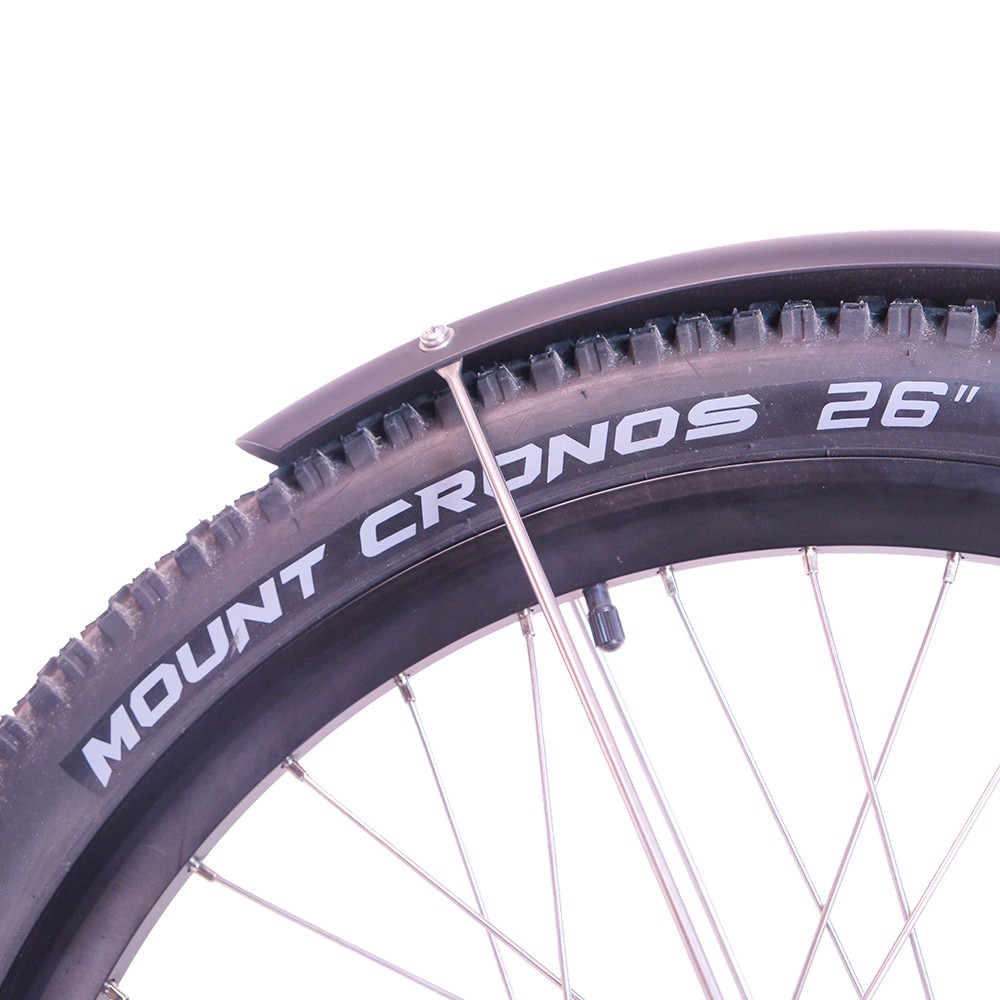

| Tires | H-5136AM,26*2.35,Chaoyang |

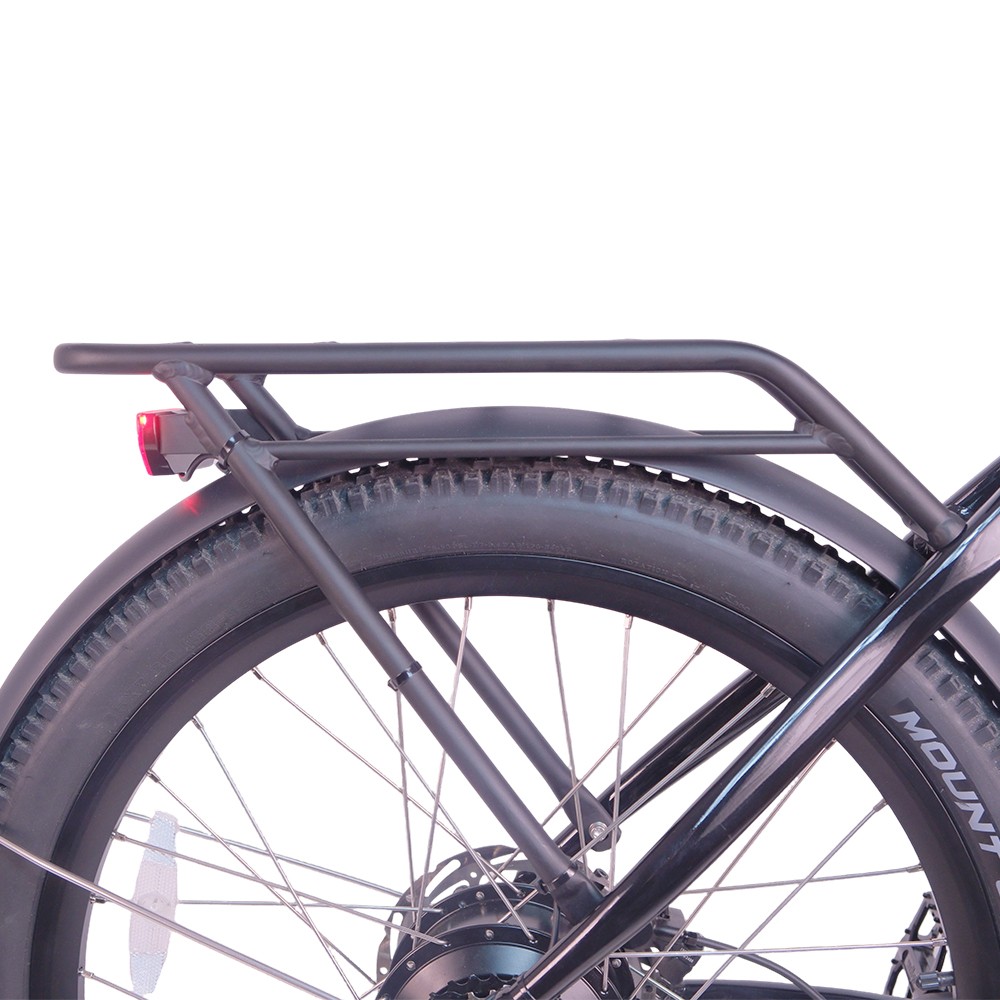

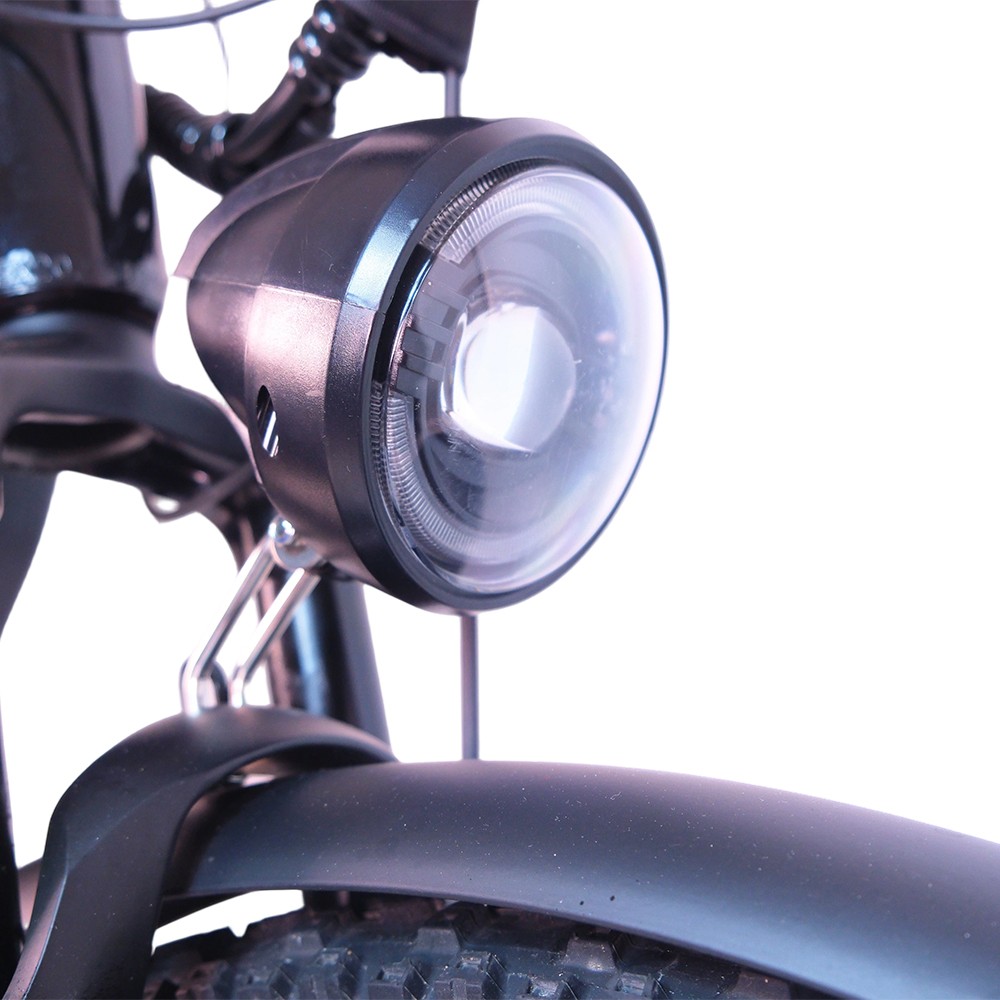

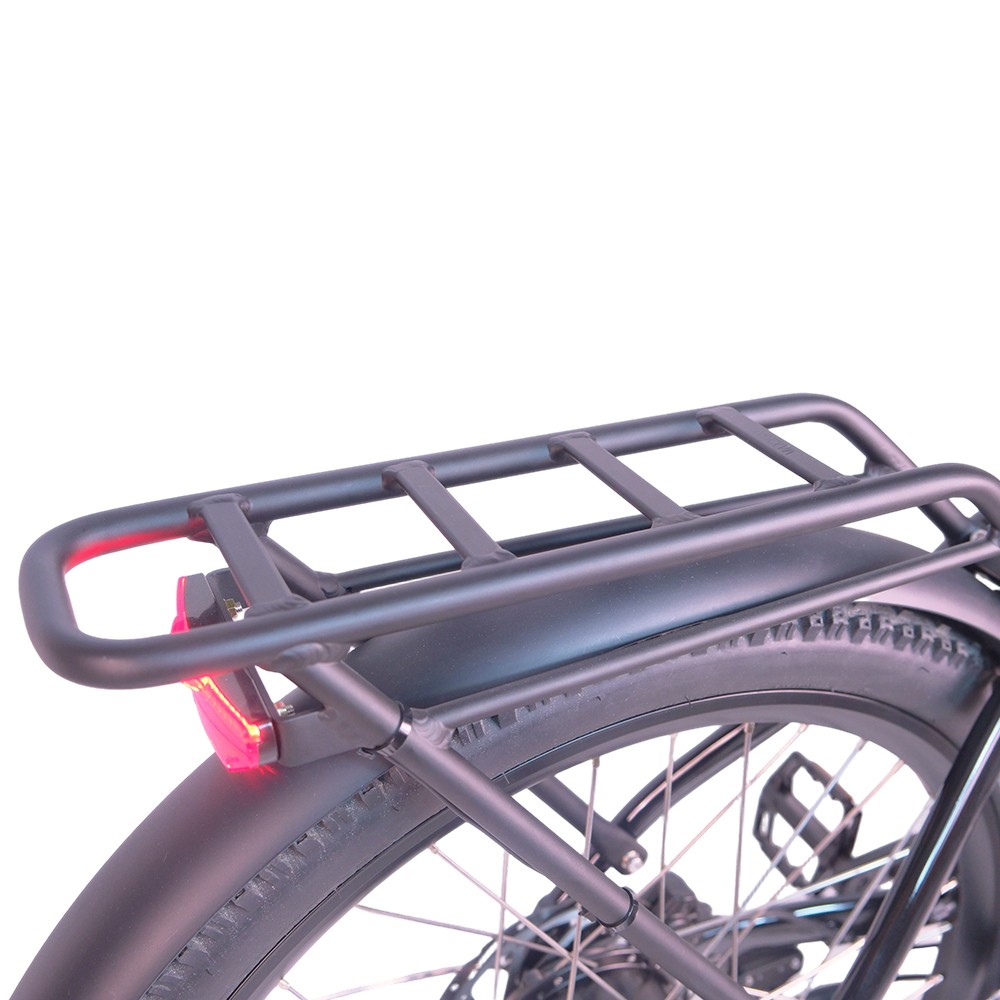

| Accessories | Lights,Fenders,Rear Rack,Horn |
| Max speed | 32KM/H (20MPH) |
| Range | 90-100KM |
| Climbing | 15 degree |
| Max load | 150Kgs |
| Functions | IoT powered E-bike,rental fleet solution ,With software,GPS tracking,Remote control |
| Total Length: | 1880mm |
| RC: | 450mm |
| FC: | 740mm |
| Wheelbase: | 1183mm |
| Seat tube: | 480mm |
| Reach: | 410mm |
| Standover: | 710mm |
| Max seatheight: | 1065mm |
| Min seatheight: | 860mm |
| Wheel size: | 26 inch |
| Bike weight: | 37Kgs |

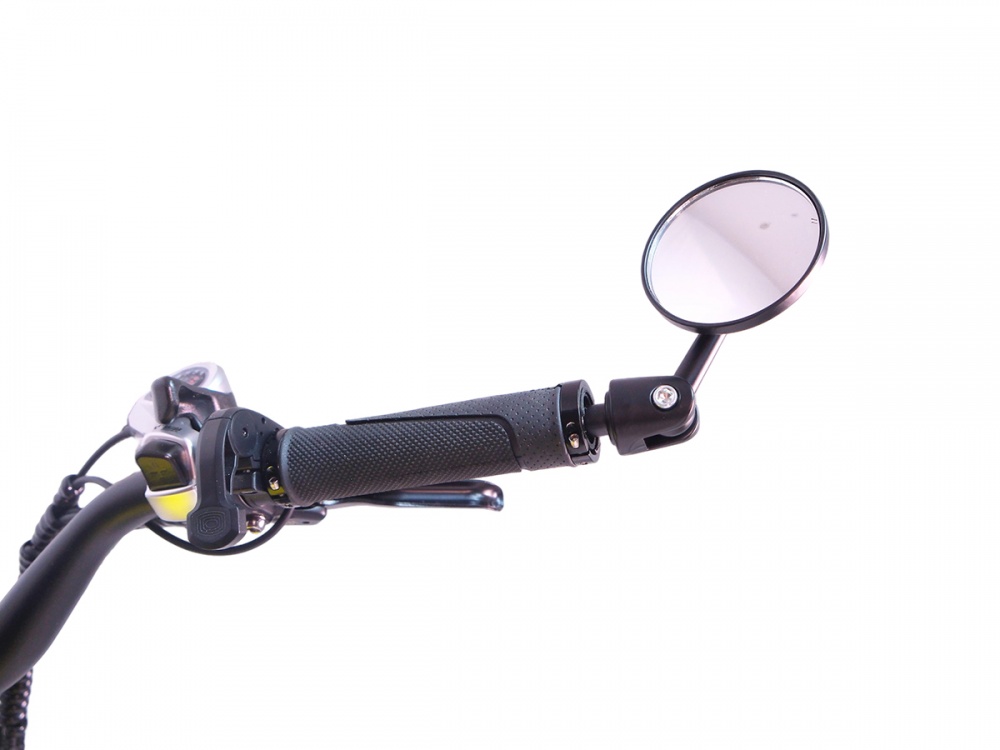

Back mirrors on two bar ends facilitate the observation of the rear traffic conditions
It should match with grips with open end

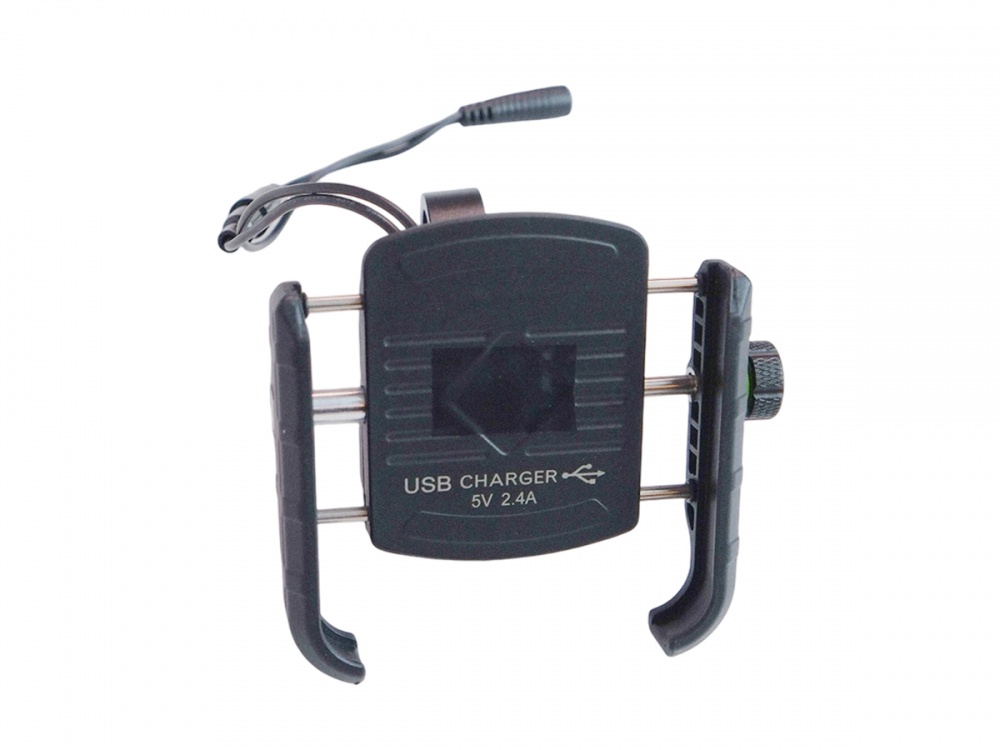

Mobile Phone holder,5V2.4A，Your phone is the display

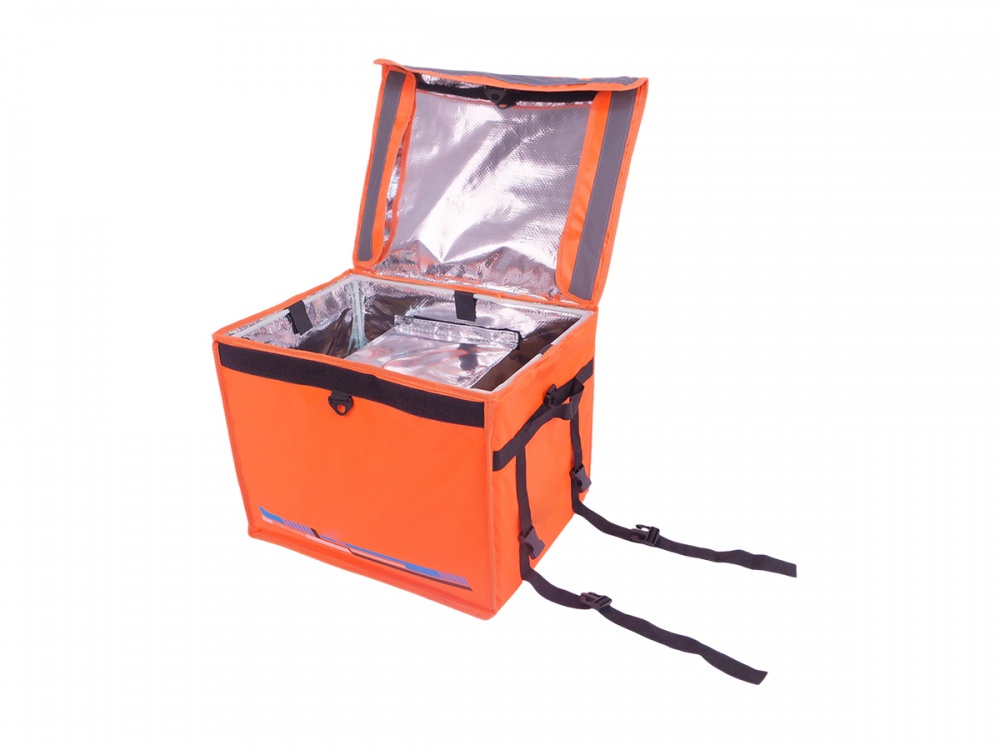

Put-On-Rack insulated box

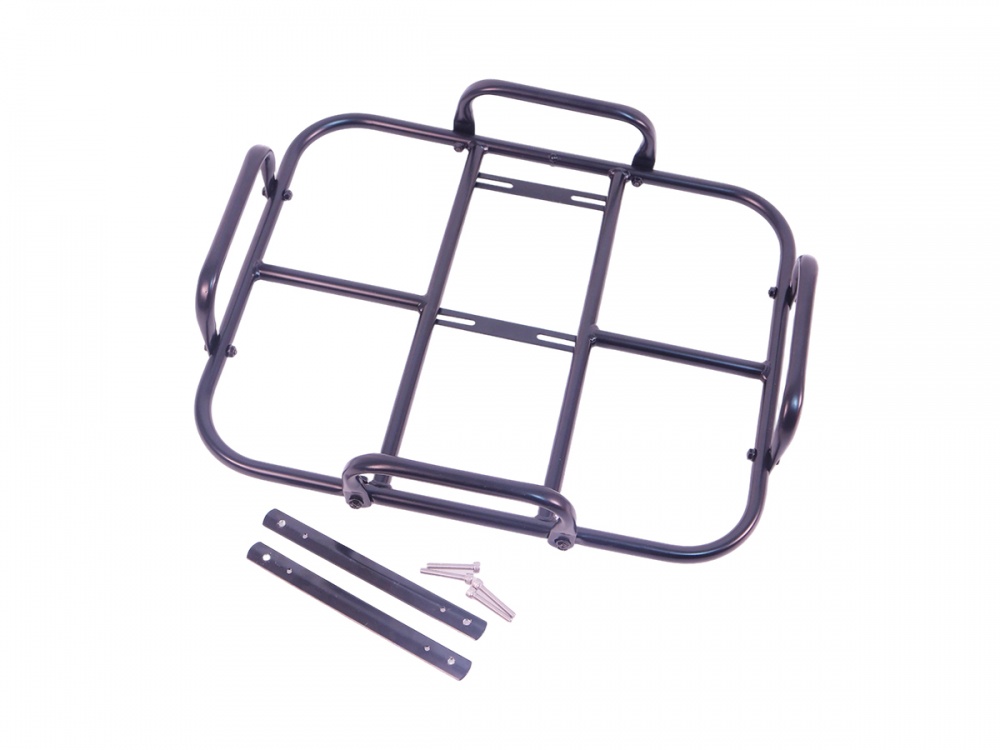

E-bike Food Delivery Rack
