Tired of Maintenance of spoke rims after a long ride?

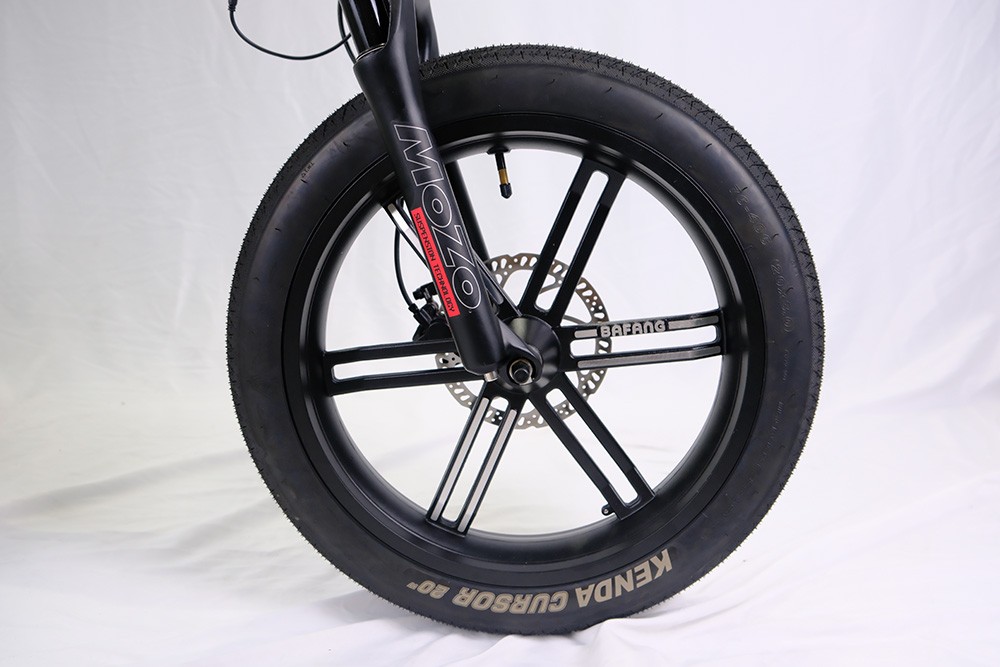

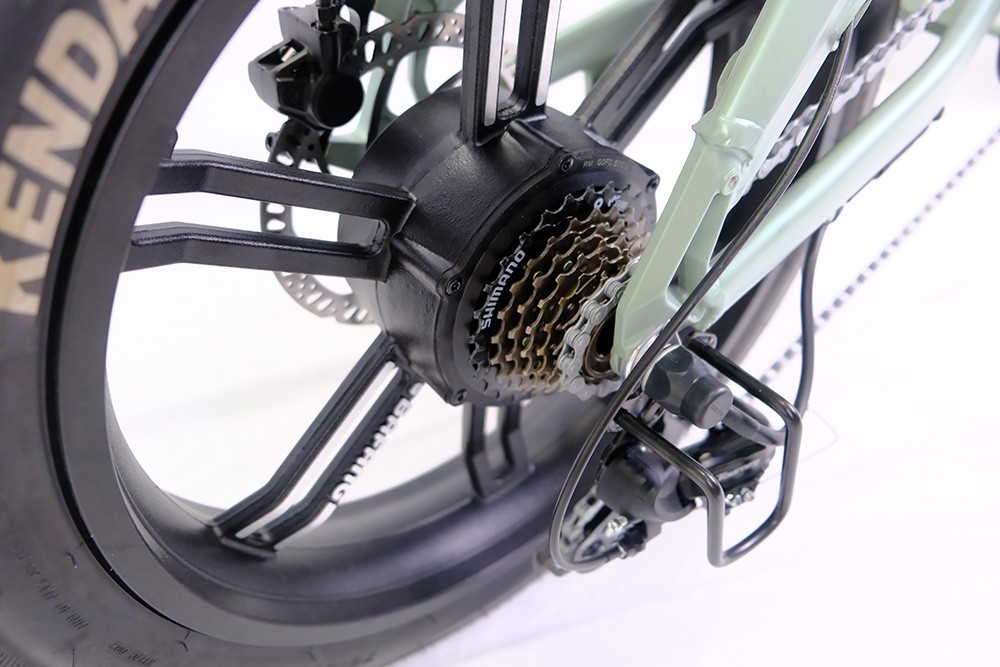

12-blade Alloy rims offer the solution of maintenance free,provided by bafang

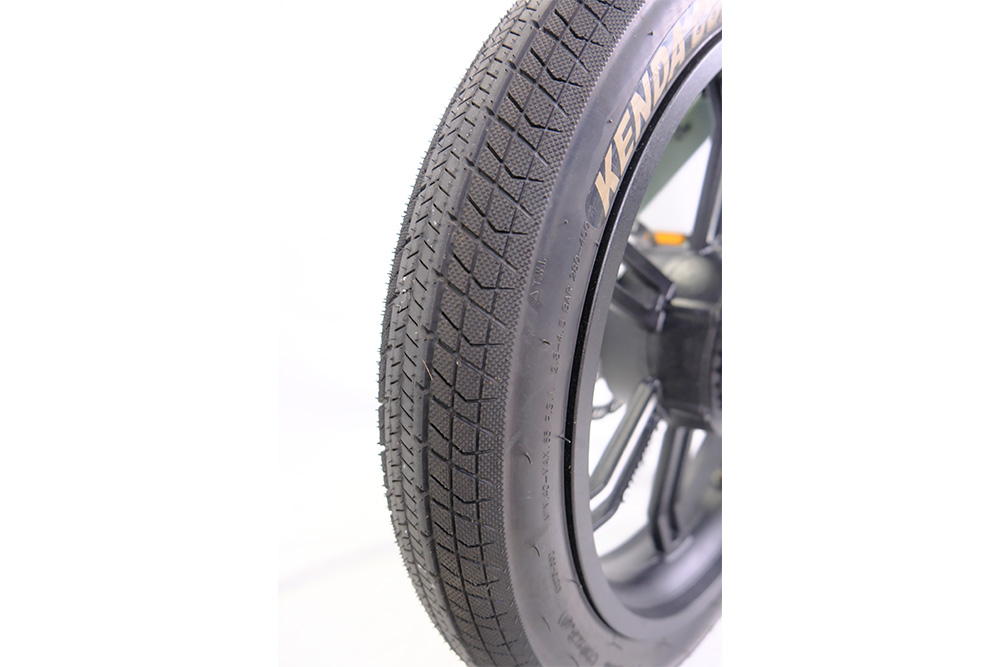

The smooth tread offer a solution to ride in city/Urban,Even though its 3.0 tires（Fat tire)

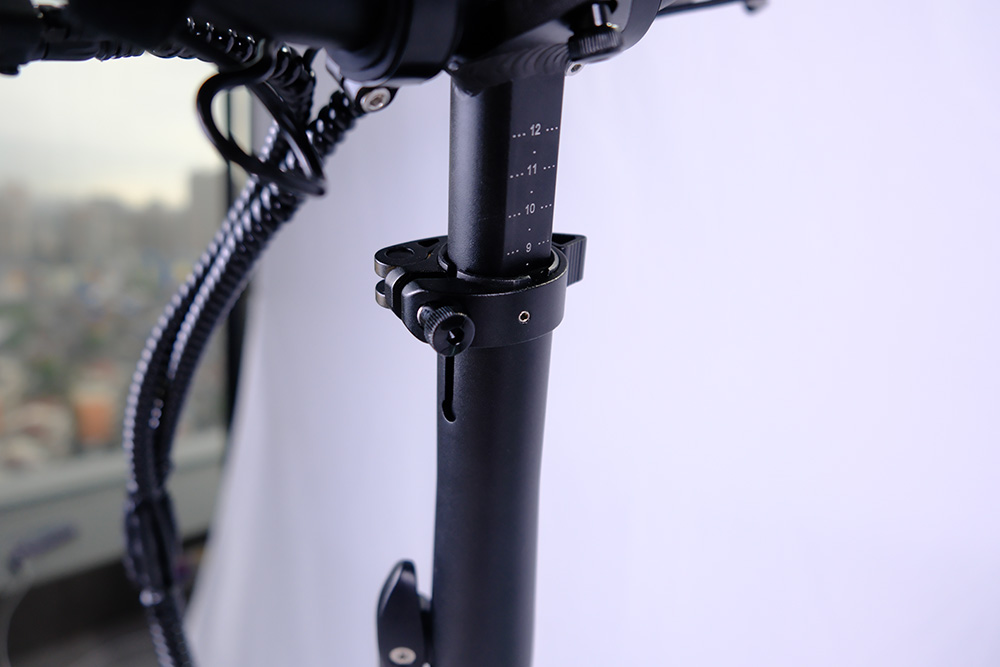

Thanks to the stem with scale，Riders can adjust the height more accurately，providing with more comfortable riding experience
| Motor | 48V500W 12 blade alloy rim motor ,Torque 65NM | |||||||

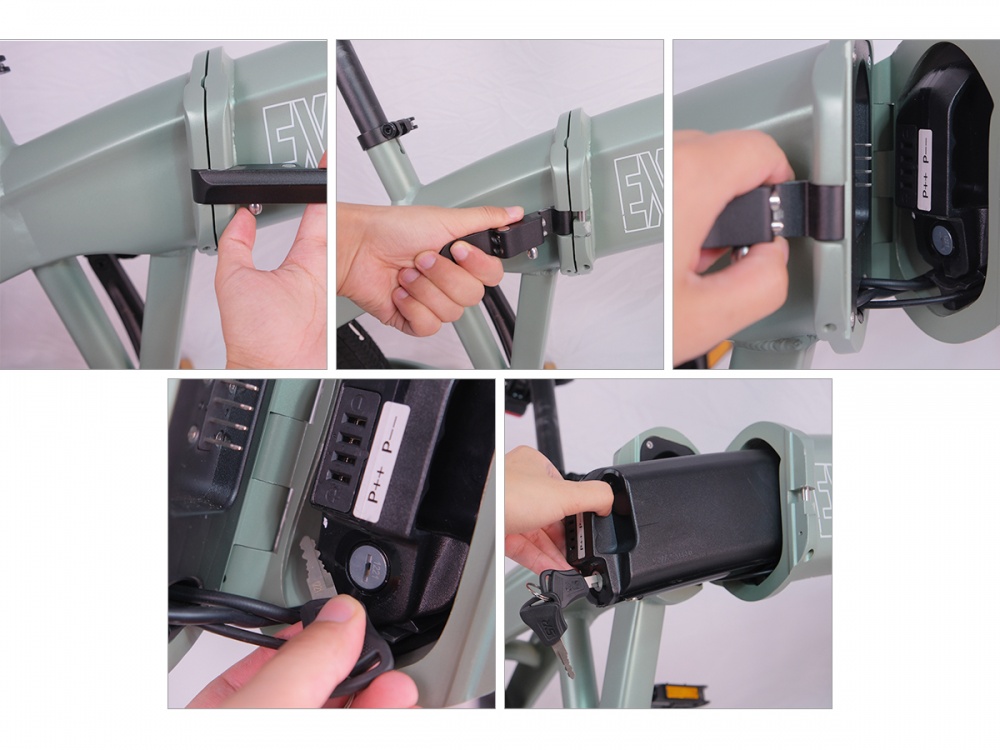

| Battery | Downtube,504WH,48V10.5AH,powered by 18650 | |||||||

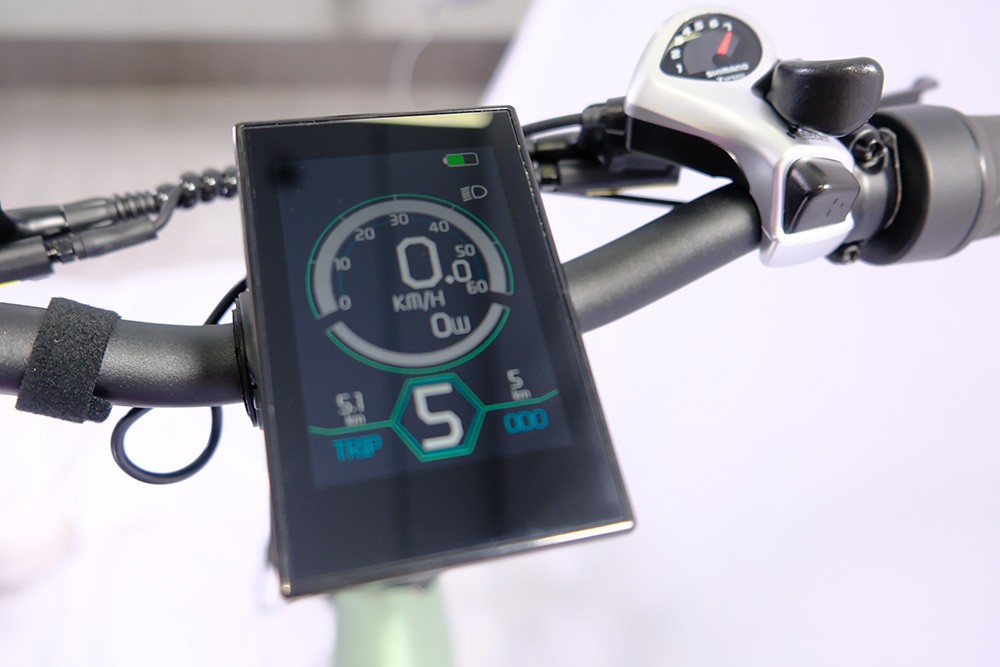

| Display | TFT display W/USB ,3.5 inch | |||||||
| Controller | 9 Mosfet,Sinewave,48V20A | |||||||
| Sensor | Cadence Sensor 1:1 | |||||||

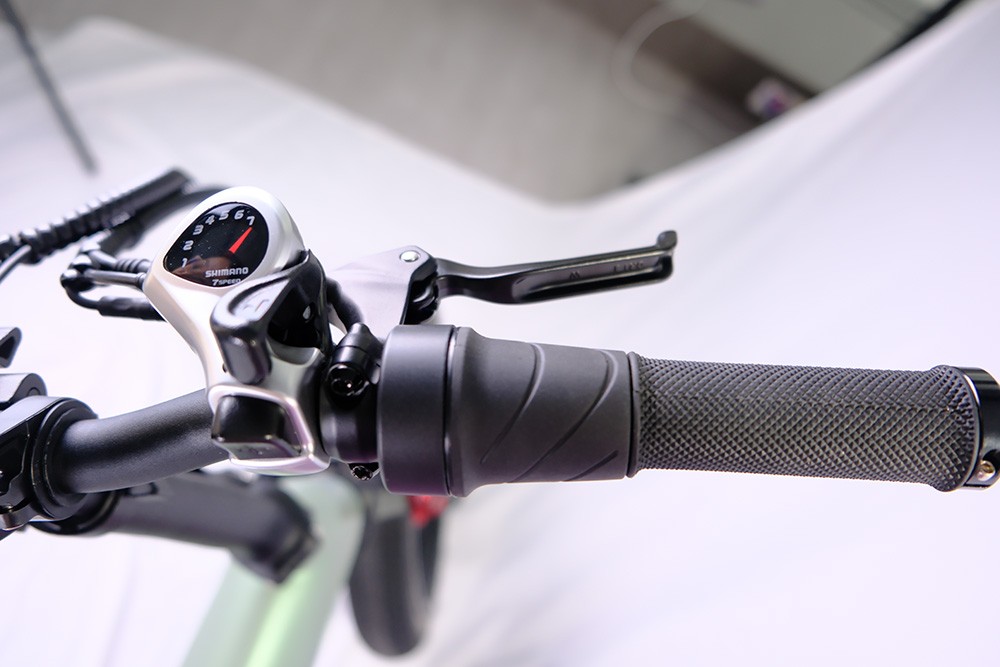

| Gears | 7 spd Shimnao | |||||||
| tires | 20*3.0 Kenda | |||||||
| Brakes | Hydraulic brakes ,2 piston ,Rotor 180mm | |||||||
| suspension | Mozo Suspension Fork,Travel 100mm | |||||||

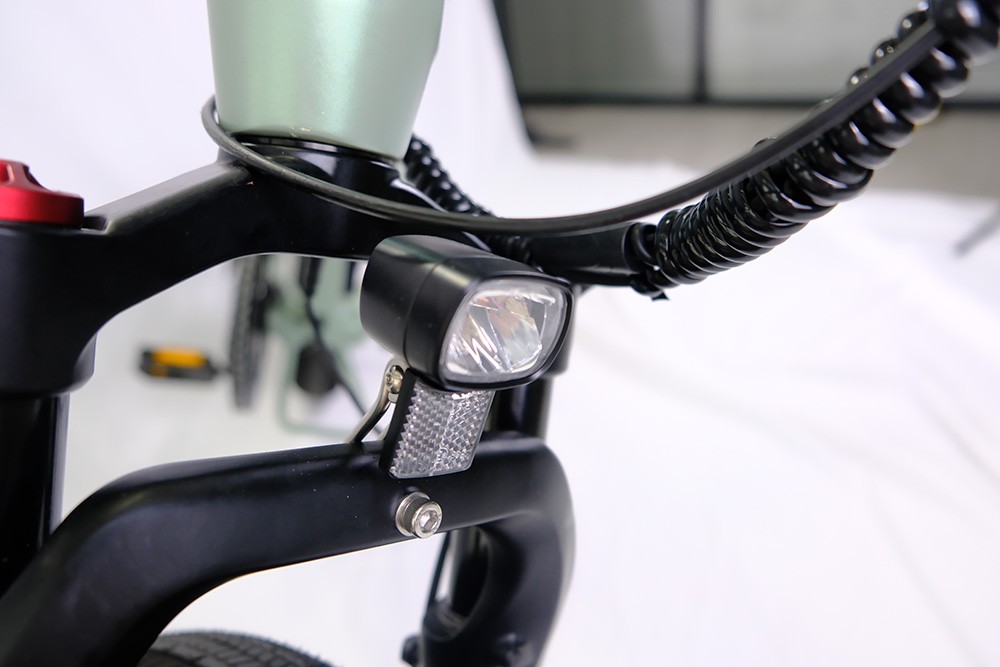

| lights | F:connected to controller,operated by panel,R:Dry battery on seatpost | |||||||
| Frame | Alloy 6061 ,20inch folding ebike fat tire W/putty treatment | |||||||
| Handlebar | Promax | |||||||
| Stem | Promax | |||||||
| Cranksets: | 48T,CNC W/Protector | |||||||
| Pedals | Folding series | |||||||

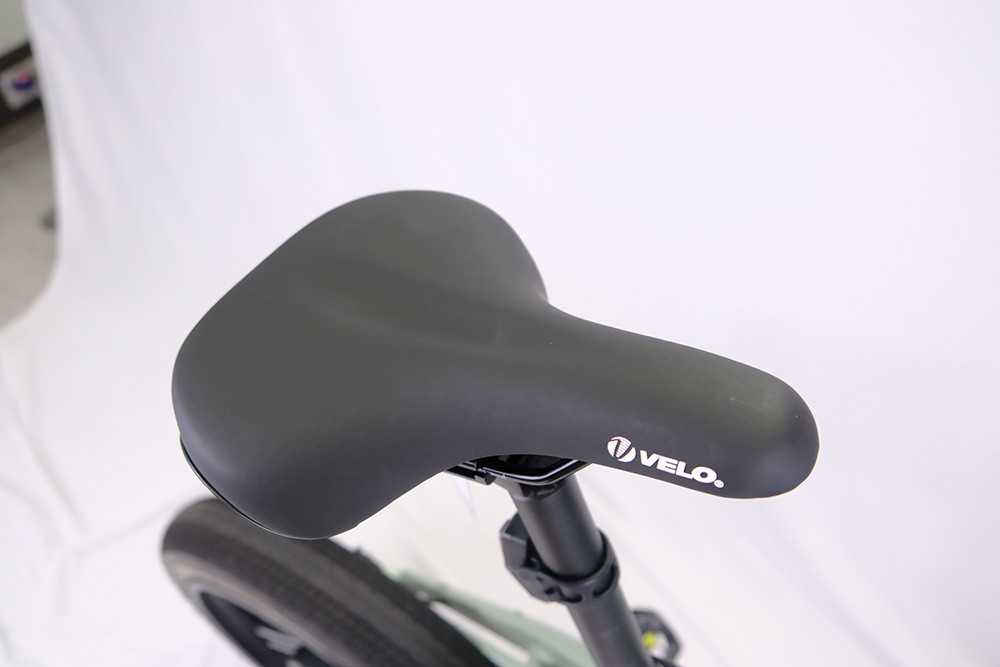

| Seats | Velo | |||||||

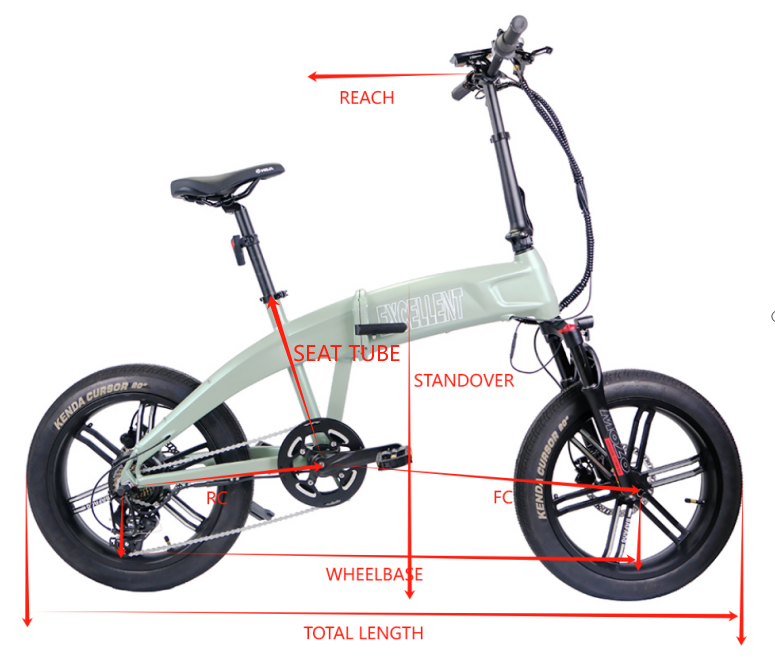

| Total Length: | 1700mm |
| RC: | 451.1mm |
| FC: | 692.5mm |
| Wheelbase: | 1138mm |
| Seat tube: | 400mm |
| Reach: | 472mm |
| Standover: | 750mm |
| Max seatheight: | 1050mm |
| Min seatheight: | 840mm |
| Wheel size: | 20 inch fat |
| Bike weight: | 33Kgs |
A torque based PAS is more advanced than a cadence sensing PAS. In general, torque sensing is built to be in tune with the rider’s movements. Sometimes called smart sensing, torque sensors use precision strain to measure the force the rider is actually applying to the pedal. This allows your bike to gauge the appropriate level of pedal assist for conditions.
Motor:48v 750w bafang motor
Battery:48V15AH by Samsung 21700 cells
The whole electronic system could convert into 36V system
Motor:36V250/350W
Battery:36V10AH/15AH/20AH by Samsung 21700 cells
WE ARE OPEN TO TALK ABOUT MORE UPGRADES & DESIGNS WITH OUR VALUED CUSTOMERS
